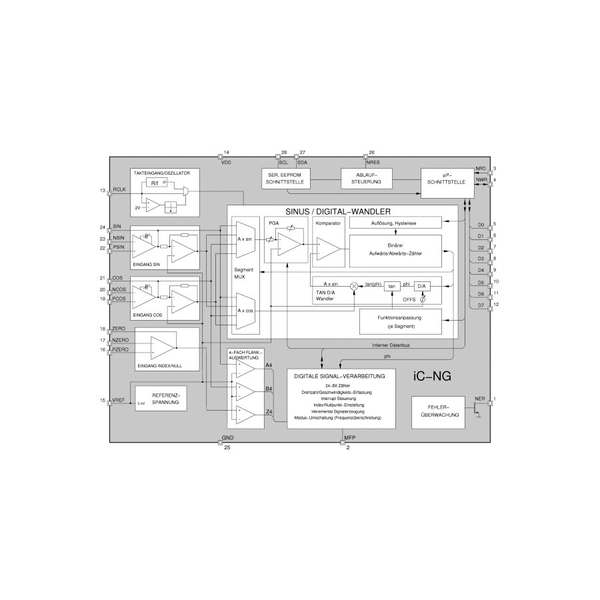

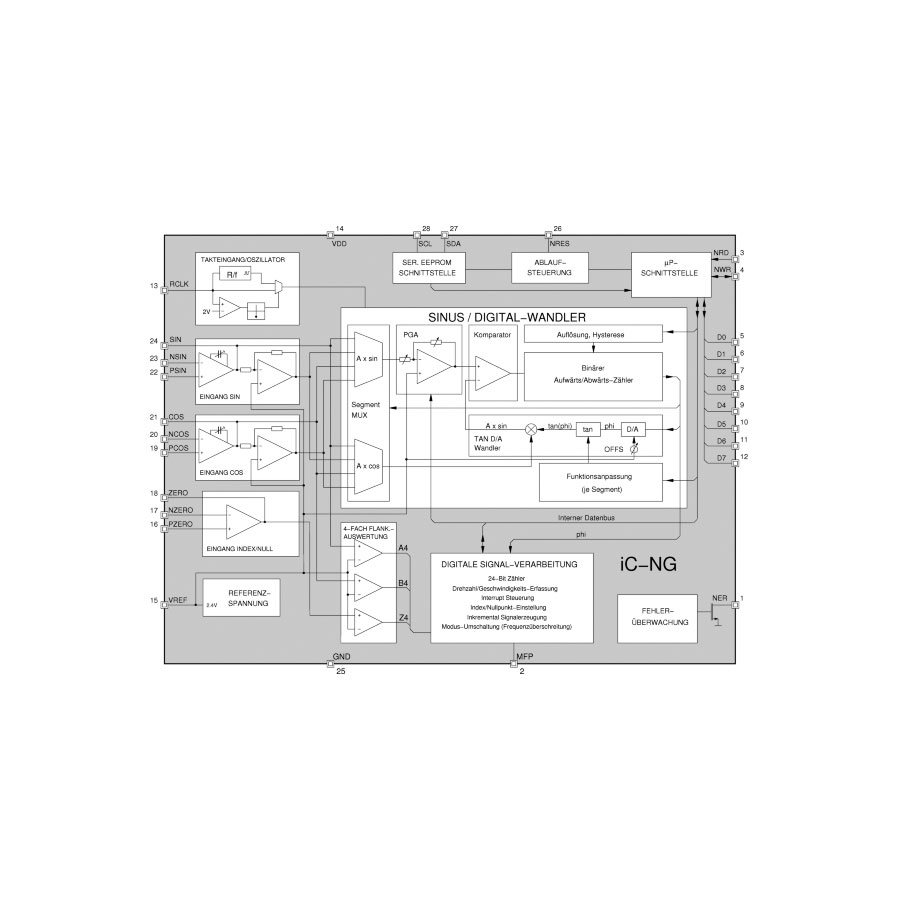

iC-NG

8-Bit Sin/D Converter-Processor with waveform adaptation.

Features

Real-time interpolator with programmable resolution of up to 256 steps/period.
Calibration features permit adaption of disorted sine ⁄ cosine signals.
Incremental A QUAD B or absolute outputs, output frequency.
Fast 24-bit multiturn counting on chip.
Programmable index position.
Input amplifiers lead out completely.
8-bit µP interface.
Serial EEPROM port to load setup.
Built-in clock oscillator.
Interrupt controller and error monitoring.
TTL- ⁄ CMOS-compatible outputs.

Datasheets


Manufacturer: iCHaus GmbH

SKU: 8-Bit Sin/D Converter-Processor with waveform adaptation Category: Tags: , , ,

Description

Applications

Absolute and incremental angle interpolation from orthogonal sinusoidal input signals
Interpolating interface for MR sensors and optical analog encoders

Packages

SO28
SO28 Package
SSOP28
SSOP28 Package

Additional information

Type

Encoder – Interpolators
