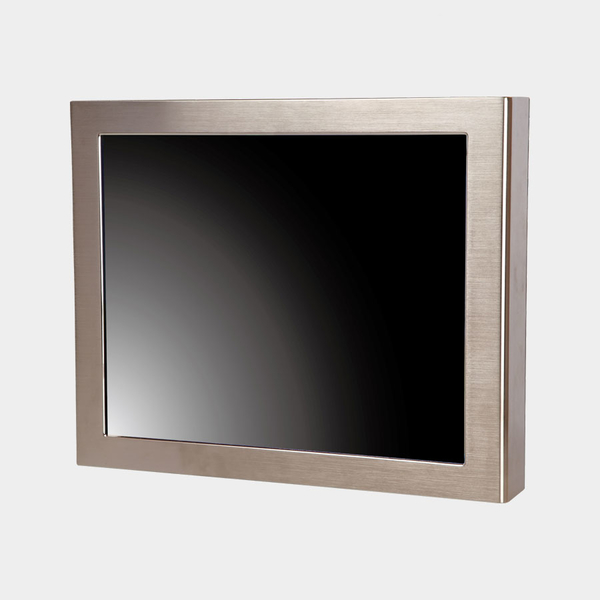

WP-ENL15RF

Description

The WP-ENL15RF is a completely sealed waterproof panel PC that can still provide great performance due to the Intel Celeron J1900 CPU and is designed to be VESA mounted. The 5-wire resistive touch sensor provides precise control.
The Gigabit LAN, and COM ports are among the many I/O ports available on this panel PC all sealed to IP65 rating, so the WP-ENL15RF is perfect for food and chemical industries, or any harsh environments.

Features

15″ Fully Waterproof Panel PC
Support Intel Celeron J1900 (2.0GHz)
Gigabit LAN
Support DC power supply
Sealed resistive touch screen
Support up to 8GB of RAM
Totally 6 sided IP65 rated
Stainless steel chassis

Suitable for:

Food Processing Plant, Abattoir
Submarines, Military Ships
SKU: 15" Fully IP65 Intel J1900 HMI Terminal Categories: , Tags: , , , ,

Description

CPU Type
Intel Celeron J1900 (2.0GHz)
Memory Support
1pcs x DDR-3L SO-DIMM socket (up to 8GB)
Bezel
Stainless Steel
Waterproof Level
IP65 6-side
Power Supply
DC 12V direct, or External AC 90~264V PSU (IP65 optional)
O/S Support
Win 7/7e, 8/8e or 10
Dimension
380 x 290 x 67mm
Basic System Weight
10kg
VESA support
100mm VESA bracket (optional)
Certificate
CE / FCC

I/O Ports

Drive Bays
1 x 2.5″ HDD
USB
1 x USB 2.0 (x6 if without full IP65 rating)
Serial Ports
2 x 9-pin (x6 if without full IP65 rating)
LAN
1 x 10/100/1000Mbps
Port Location
All ports on bottom of unit

LCD / Touch

LCD
15″ XGA TFT LCD
Brightness
400cd/m2 (Optional up to 2000cd/m2)
Touch Screen
Option: 5 wire analogue resistive (USB interface)
Options
Toughened Glass

Environment

Temperature
Operating: 0 to 40°C, Storage: -10 to 70°C
Humidity
0 to 95%

Additional information

Core

Intel Celeron

Mount Type

VESA Mount

Operating System (OS)

Windows 10, Windows 7, Windows 7 e, Windows 8, Windows 8 e

Operating Temperature

0°C to 40°C

Screen Size

15"

IP Rating

Fully IP65
