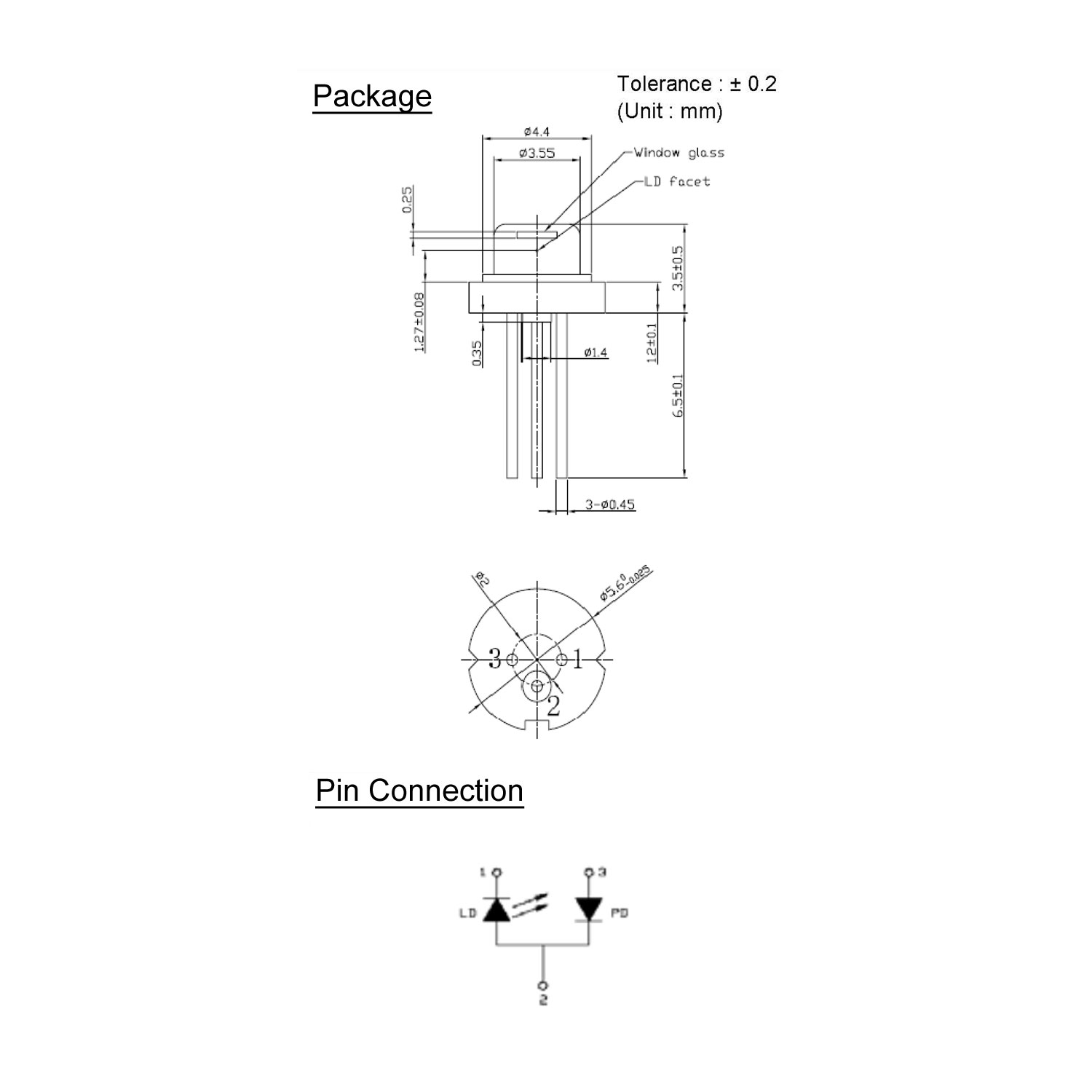

ADL-66505TL ADL-66505TL pin

660nm, 50mW Red Laser Diode

ADL-66505TL

Feature

Arima Red Laser Diode
Wavelength: 660nm (typ.)
Output Power: 50mW
Package: TO18 (RoHS compliant)
Low Operating Current

Applications

High Power Laser Modules
Industrial Laser Markers
Medical Applications

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-WKN
iC-NZN
iC-HK
iC-HB
SKU: 660nm, 50mW Red Laser Diode Category: Tags: , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
52
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
120
mA
Operating
Temperature
Topr
-10 to +60
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
50
52
mW
–
Threshold
Current
Ith
–
45
60
mA
Po=50mW
Operating
Current
Iop
–
90
120
mA
Po=50mW
Differential
Efficiency
η
0.7
1.0
1.4
mW/mA
Po=50mW
Operating
Voltage
Vop
2.0
2.5
3.0
V
Po=50mW
Peak
Wavelength
λp
650
660
670
nm
Po=50mW
Monitor
Current
Im
0.05
0.2
0.5
mA
Po=50mW
Beam *4
Divergence
Θ// x Θ⊥
6.0 x 13
9.0 x 17
13.0 x 22
deg
Po=50mW
Beam
Angle
ΔΘ// x ΔΘ⊥
-3 x -3
–
+3 x +3
deg
Po=50mW

Additional Information

Colour

Red (635 – 685nm)
Power Output

50mW
Wavelength

660nm
Operating Current

120
Operating Voltage

2.0 Min. 2.5 Typ. 3.0 Max.
PIN Type

N or A (inc. PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK, iC-NZN, iC-WKN
