ADL-80X01TZ-1

Feature

Arima InfraRed Laser Diode
Wavelength: 807nm (typ.)
Output Power: 300mW

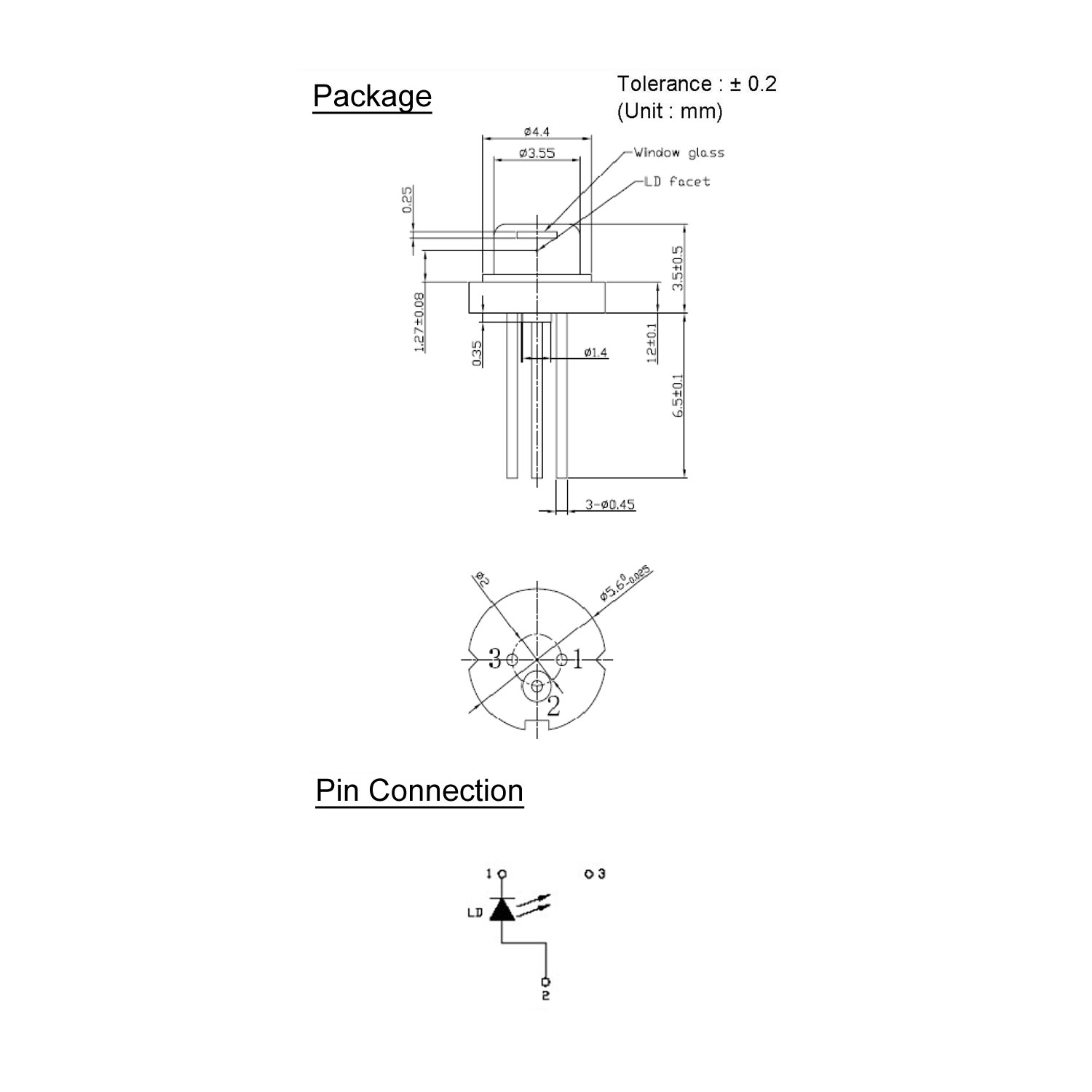

Package: TO18 (RoHS compliant)
No Glass Lens

Applications

Pumping Source For DPSS Green Laser
Medical Applications

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-HK
iC-HB
SKU: 807nm, 300mW Infra-Red Laser Diode Categories: , Tags: , , ,

Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
300
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
330
mA
Operating
Temperature
Topr
-10 to +50
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
300
–
mW
–
Threshold
Current
Ith
–
50
65
mA
Po=300mW
Operating
Current
Iop
–
300
330
mA
Po=300mW
Differential
Efficiency
η
0.8
1.2
–
mW/mA
Po=250-300mW
Operating
Voltage
Vop
–
1.95
2.1
V
Po=300mW
Peak
Wavelength
λp
805
807
810
nm
Po=300mW
Monitor
Current
Im
–
–
–
mA
–
Beam *4
Divergence
Θ// / Θ⊥
–
8.0 / 39
11.0 / 48
deg
Po=300mW
Beam
Angle
ΔΘ// / ΔΘ⊥
-3 / -5
–
+3 / +5
deg
Po=300mW

Additional information

Colour

InfraRed (780 – 980nm)
Wavelength

807nm
Power Output

300mW
Operating Voltage

1.95 Typ. 2.1 Max.
Operating Current

330
PIN Type

E (no PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK
