BPC-8076
Description

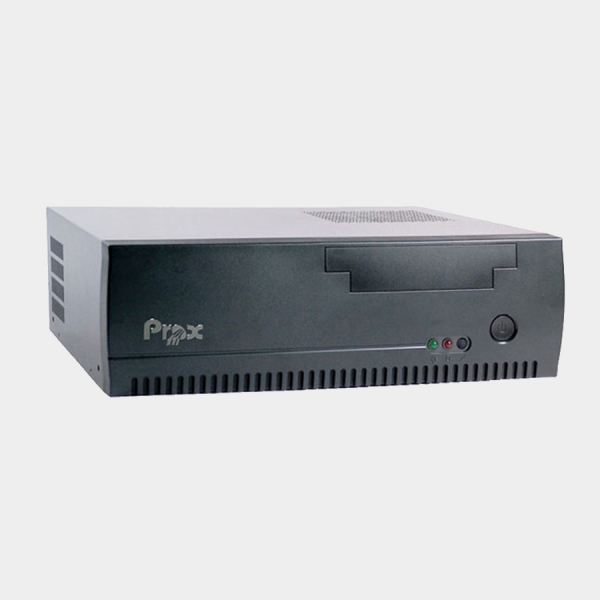

The BPC-8076 is a high performance book size computer built for multi-processing due to the Intel Corei3/i5/i7 CPU support.
The six USB ports and four COM ports are among the many I/O ports available on this book size PC, and expansion is possible with 2 x PCI, or 1 x PCI-e and 1 x PCI slots.
Features
Socket 1155 Corei3/i5/i7 Book-size PC
Support G540 or Corei3/i5/i7 CPU (Q67 / H61)
Support up to 8GB of RAM
Two expansion slots (1PCI-E + 1PCI or 2PCI or 2PCI-E)
Gigabit LAN
Dual display (DVI + VGA)
Support rackmount and wallmount solutions
Industry level of durability
Downloads:
Description
|
CPU Type
|
Celeron G540 or Corei3/i5/i7, 1155-pin socket type
|
|
Chipset
|
Intel Q67 / H61
|
|
Memory Support
|
2pcs x DDR-3 DIMM socket (up to 8GB)
|
|
Video Controller
|
Intel HD Graphics (part of CPU)
|
|
Power Supply
|
AC 100V to 240V input, ATX 220W output
|
|
Basic System Weight
|
5kg (11lb)
|
|
Dimension
|
300 x 270 x 94 mm (11.8in x 10.6in x 3.7in)
|
|
Certificate
|
FCC / CE
|

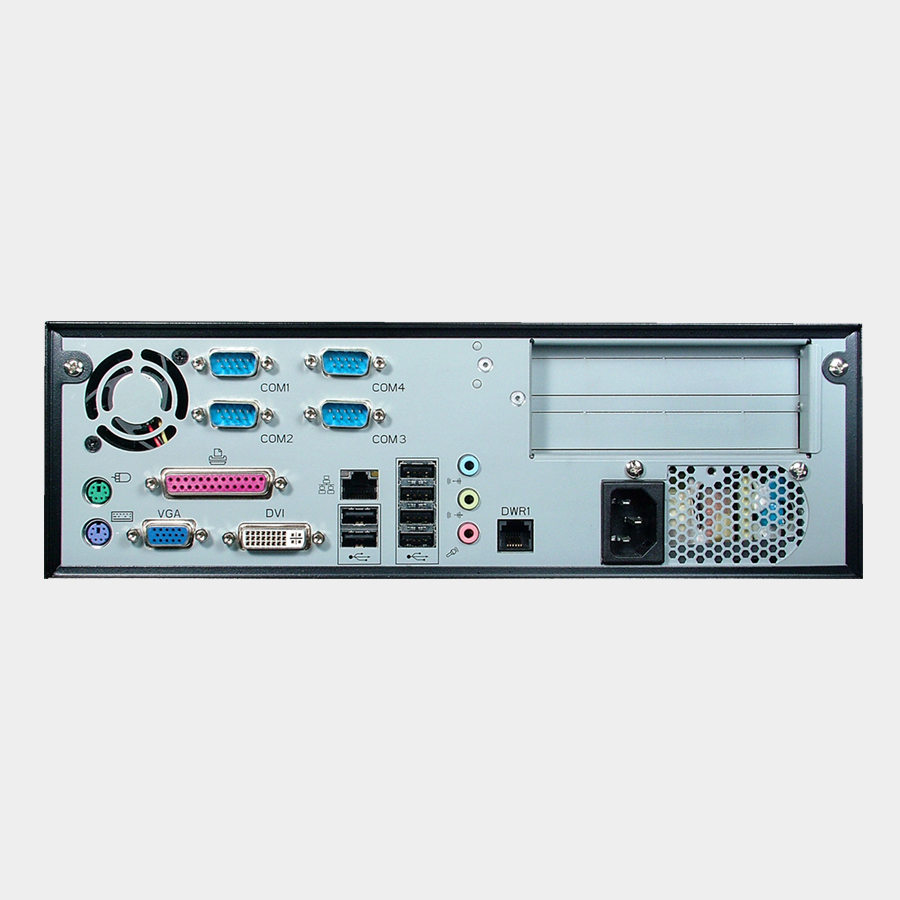

I/O Ports
|
Drive Bays
|
2 x 2.5″ HDD + 1 x Slim CD
|
|
USB
|
6 x USB 2.0
|
|
Serial Ports
|
4 x 9-pin, COM2 for RS232/422/485
|
|
Parallel
|
1 x 25-pin, supporting SPP, EPP and ECP
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
Line-in/Line-out/Mic
|
|
Expansion
|
2 x PCI or 1 x PCI and 1 x PCI-e
|
Environment
|
Temperature
|
Operating: 0 to 45°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Core | Intel Core i3, Intel Core i5, Intel Core i7 |
|---|---|
| Expansion | PCI, PCI-e |
| Operating System (OS) | Windows 7, Windows XP |
