55" FullHD LCD Panel for Video Walls (3.5mm bezel)

CL-55NMF10

Description

The CL-55NMF10 is a 55″ widescreen LCD panel with 3.5mm bezel for use in multi-LCD video walls designed for digital signage and information display.
The 55″ LCD panels are FullHD resolution and expandable in many different arrangements (e.g. 3×5, 6×1, 8×2, 4×4) in both portrait and landscape mode, and with reduced bezel, larger images are possible with minimal distortion.
With the option of touch screen and various input types, the video wall can be used in many situations.

Features

55″ LCD Panel
Native Resolution 1920×1080 @60Hz
DVI, VGA and HDMI inputs (with pass-through)
3.5mm inter panel bezel for near seamless display
Multi-LCD expandable to any size
LED Backlight
90% Brightness Uniformity

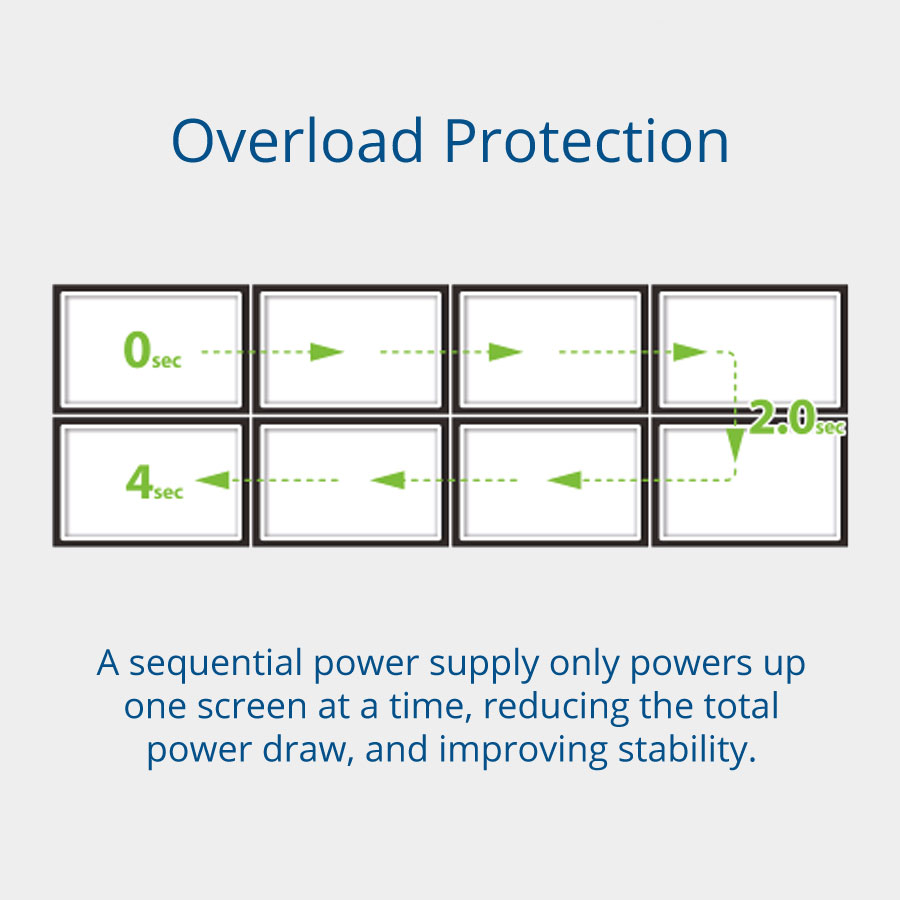

Sequential power supply reduces total power draw on start-up


Downloads:

Datasheet
SKU: 55" FullHD LCD Panel for Video Walls (3.5mm bezel) Category: Tags: , , ,

Product Description

Screen Size
55″, 1920 x 1080 resolution
Display Colours
16.7M colours
Bezel Width
3.5mm (2.25mm on left, 1.25mm on right)
Luminance
Typ. 500cd/m2 (optional CL-55NMF20 – 700cd/m2)
Backlight Lifetime
Typ. 60,000 hours
Viewing Angle
Horizontal: Typ. 178°, Vertical: Typ. 178°
Response Time
12ms (G-to-G)
Contrast Ratio
Typ. 1400:1 (Dynamic 500,000:1
Mount Type
Wall mountable
Power Input
AC 100V-240V
Dimension
1215.6 x 684.3 x 103.2 mm
Weight
35 Kg

I/O Ports (Daisy-Chain)

Digital
DVI-in/out and HDMI-in
Analogue
15-pin VGA-in/out
PC Control
RS-232C

Environment

Temperature
Operating: 0 to 40°C
Humidity
Operating: 10 to 80%
Power Consumption
160W per panel (NMF10), 185W per panel (NMF20)

Additional Information

Screen Size

55″
Monitor Type

Monitor – 25″+, Panel – Signage
Inputs

DVI, HDMI, VGA
Mount Type

Wall
Brightness

500cd/m², 700cd/m²
