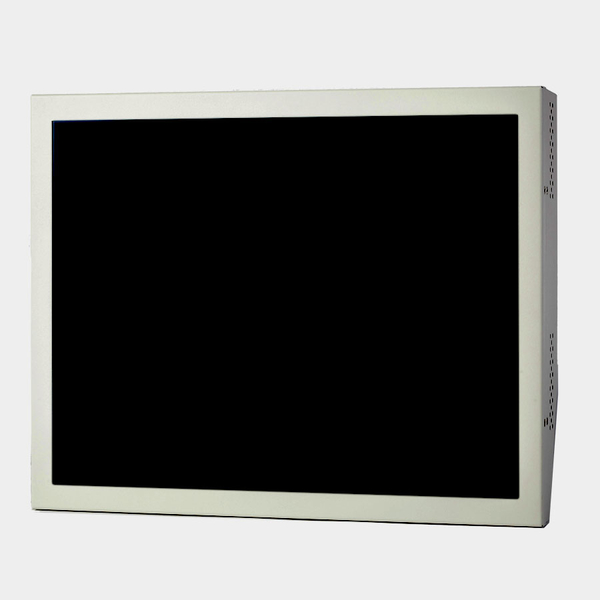

E1700
Description
The E1700 is a 17″ VESA arm mount industrial monitor designed for industrial automation and monitoring. The 17″ LCD panel provides 1280 x 1024 (SXGA) resolution.
With the option of touch screen, the monitor can also be used as an interactive terminal.
Features
17″ VESA Arm Mount Monitor
1280 x 1024 Resolution
VGA, DVI-D inputs
Optional Resistive touch screen
Backlight Lifetime: Typ 30,000 hours
Contrast ratio: 1000:1 (Typ.)
Support AC 240V input
Suitable for:
Factory Control
Description
|
Screen Size
|
17″, 1280 x 1024 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
0.264 x 0.264 mm
|
|
Luminance
|
Typ. 250cd/m2
|
|
Backlight Lifetime
|
Typ. 30,000 hours
|
|
Viewing Angle
|
Horizontal: Typ. 85°/85°, Vertical: Typ. 80°/80°
|
|
Input Frequency
|
Hor. 31.5-80 KHz, Ver. 56-75Hz
|
|
Contrast Ratio
|
Typ. 1000:1
|
|
Mount Type
|
VESA arm mount
|
|
Power Input
|
AC 100-240V (1.3-0.65A)
|
|
Dimension
|
380 x 320 x 63 mm
|
|
Weight
|
5.8Kg
|
|
Chassis
|
Front – Aluminium, Rear – Steel
|
I/O Ports
|
Digital
|
DVI-D
|
|
Analogue
|
15-pin VGA
|
Optional Touch Screen
|
Touch Sensor Type
|
5 wire resistive type
|
|
Touch Controller Type
|
RS232 9-pin support WinXP/2003/7/8, Linux
|
Environment
|
Temperature
|
Operating: 0 to 50°C
|
Additional information
| Mount Type | VESA Arm Mount |
|---|---|
| Screen Size | 17" |
| Operating Temperature | 0°C to 50°C |
| Brightness | 250cd/m² (Typ) |
| Viewing Angle | 85° / 85° |
| Touch Type | Resistive |
| Monitor Type | Factory/Industrial |
