EFL-1043S
Click to enlarge

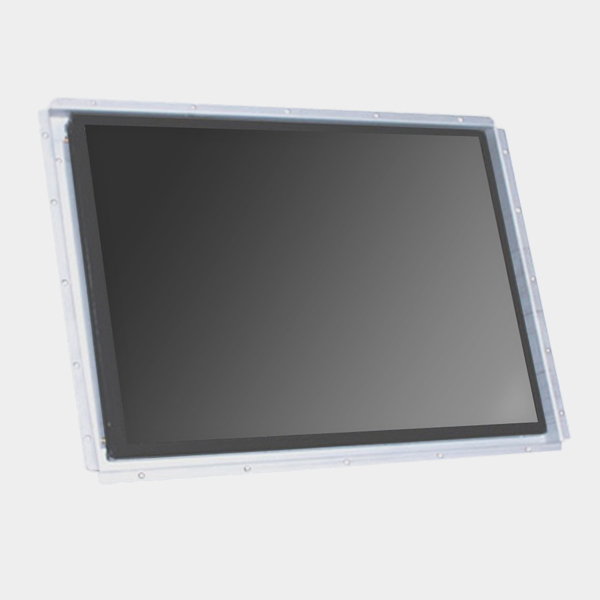

10.4" SVGA Open Frame LCD Monitor with Optional Touch

EFL-1043S

Description

The EFL-1043S is a 10.4″ open frame industrial monitor designed for kiosk and industrial control, as well as digital signage.
The 10.4″ LCD panel provides 800 x 600 (SVGA) resolution. With the option of touch screen and various input types, the monitor can be used in any situation.

Features

10.4″ Open Frame Monitor
Native Resolution 800×600 @60Hz
Optional Composite/S-Video input
Optional Touch Screen
12Vdc Power Supply
Standard Viewing Angle
VGA and DVI Input
Open Frame Type

Fixed Order Quantities:

1-2pcs sample, 25pcs, 50pcs, 100pcs and any multiple of 50pcs above this.

Manufacturer:

Effinet Systems Inc.
SKU: 10.4" SVGA Open Frame LCD Monitor with Optional Touch Category: Tags: , , , , , , , ,

Product Description

Screen Size
10.4″, 800 x 600 resolution
Display Colours
262k
Pixel Pitch
0.264 x 0.264
Luminance
Typ. 400cd/m2
Backlight Lifetime
Typ. 50,000 hours
Viewing Angle
Horizontal: Typ. 80°/80°, Vertical: Typ. 60°/80°
Backlight Type
Edge LED
Contrast Ratio
Typ. 700:1
Mount Type
Open frame mount and VESA arm mount
Power Input
DC 12V
Dimension
TBD

I/O Ports

Digital
DVI-I
Analogue
15-pin VGA
Optional Inputs
S-Video and Composite video

Optional Touch Screen

Touch Sensor Type
Resistive, Capacitive, IR
Touch Controller Type
Serial, USB

Environment

Temperature
Operating: 0 to 50°C

Additional Information

Screen Size

10.4″
Monitor Type

Monitor – 6″ to 24″
Inputs

Composite Video, DVI, S-Video, VGA
Mount Type

Open Frame, VESA Arm Mount
Touch Type

Capacitive, IR, Resistive
Brightness

400cd/m²
