EFL-2103HU
Click to enlarge

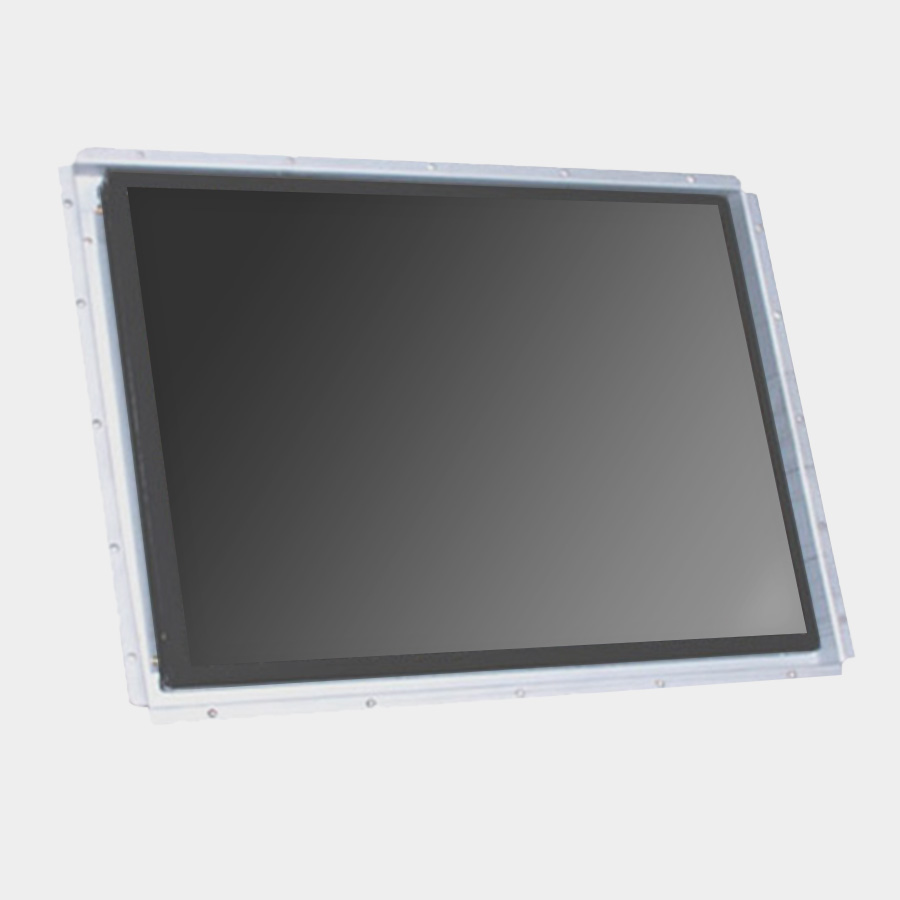

21.5" FullHD Open Frame LCD Monitor

EFL-2103HU

Description

The EFL-2103HU is a 21.5″ widescreen open frame industrial monitor designed for gaming and industrial control, as well as digital signage.
The 21.5″ LCD panel provides 1920 x 1080 (FullHD) resolution with LED backlight for low power consumption. With the option of touch screen and various input types, the monitor can be used in any situation.

Features

21.5″ Open Frame Monitor
Native Resolution 1920×1080 @60Hz
LED backlight
VGA & DVI input
Optional Composite/S-Video input
Optional Touch Screen
Optional Audio Amp
Open Frame Type

Fixed Order Quantities:

1-2pcs sample, 25pcs, 50pcs, 100pcs and any multiple of 50pcs above this.

Manufacturer:

Effinet Systems Inc.
SKU: 21.5" FullHD Open Frame LCD Monitor Category: Tags: , , , , ,

Product Description

Screen Size
21.5″, 1920 x 1080 resolution
Display Colours
16.7M
Pixel Pitch
0.24825 x 0.24825 mm
Luminance
Typ. 250cd/m2
Backlight Lifetime
Typ. 25,000 hours
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
Edge LED
Contrast Ratio
Typ. 3000:1
Mount Type
Open frame mount or VESA arm mount
Power Input
DC 12V (35W)
Dimension
527 x 319 x 42.2mm

I/O Ports

Digital
DVI-I
Analogue
15-pin VGA
Optional Inputs
S-Video and Composite video

Optional Touch Screen

Touch Sensor Type
Resistive, Capacitive, IR, SAW
Touch Controller Type
Serial, USB

Environment

Temperature
Operating: 0 to 50°C, Storage: -20 to 60°C
Humidity
10 to 90%

Additional Information

Screen Size

21.5″
Monitor Type

Monitor – 6″ to 24″
Inputs

Composite Video, DVI, S-Video, VGA
Mount Type

Open Frame, VESA Arm Mount
Touch Type

Capacitive, IR, Resistive, SAW
Brightness

250cd/m² (Typ)
