iC-HD2

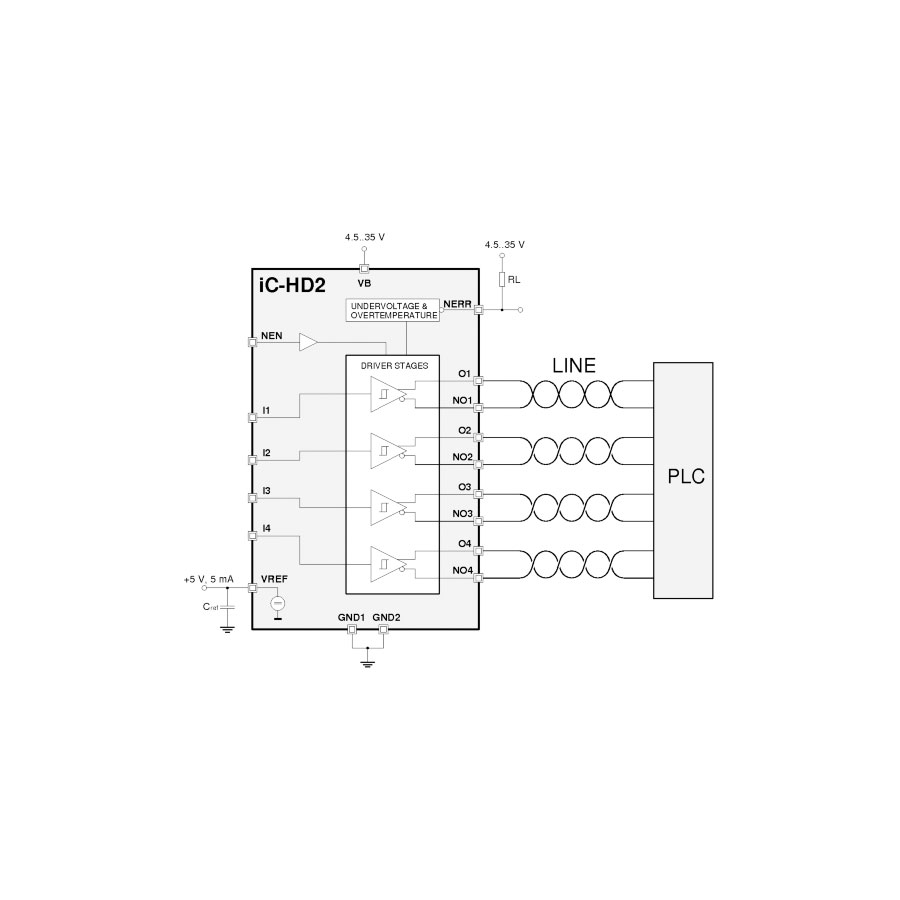

Complementary short-circuit-proof push-pull driver stages for RS422 and 24V applications up to 2MHz.

Pin-compatible with xx2068.

Integrated line adaptation for high signal quality at 24V.

High driving capability of typically 200mA at 24V.

Output saturation of just 0.3V at 40mAdc.

Tristate function with excessive temperature.

Moderate slew rate reduces EMI.

Error messaging with excessive temperature and undervoltage.

TTL- ⁄ CMOS-compatible Schmitt trigger inputs, voltage-proof to 40V.

Tristate function for bus applications.

Integrated 5V regulator for 5mA.

4.5 to 35V single supply operation with low static power dissipation.

Operating temperature from -25 to 125°C (-40°C is optional).
