Product Description
Applications
Laser diode power adjustment
Remote power adjustment of laser modules
Adjustment of encapsulated devices
Ideal for use with iC-Haus’ laser diode driver family
Packages
DFN10
Click to enlarge

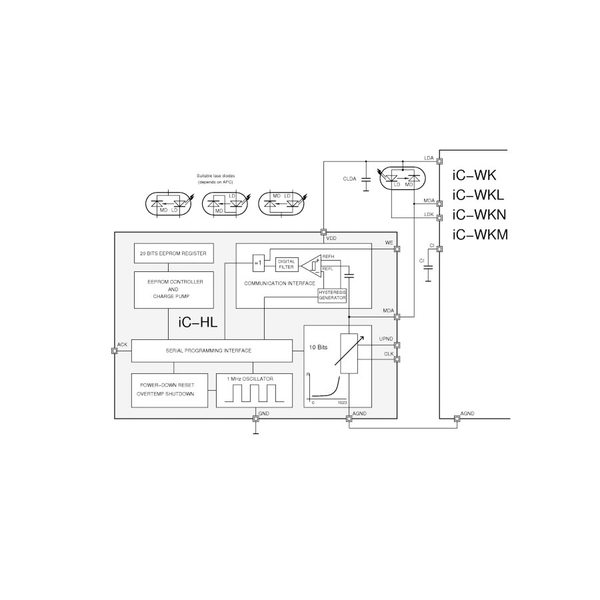

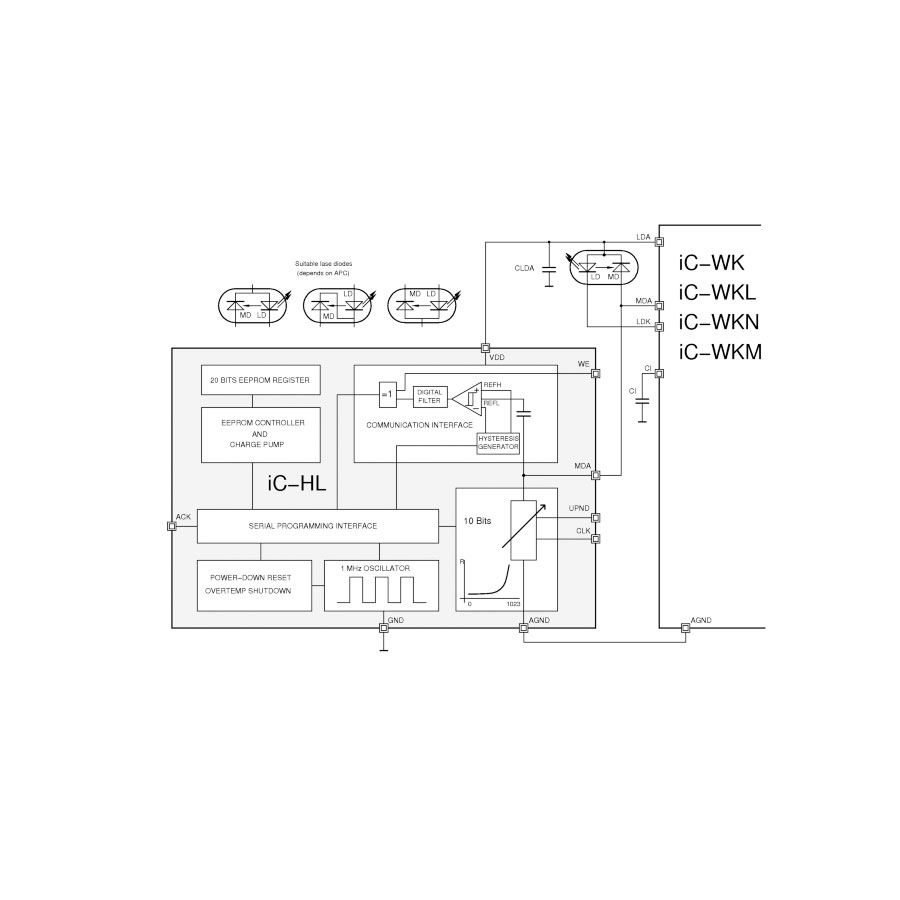

Non-volatile Laser Bias Potentiometer for laser APCs
iC-HL
Non-volatile Laser Bias Potentiometer for laser APCs.
Features
High precision 1024-step programmable logarithmic potentiometer.
Wide resistance range from 300Ω to 80kΩ.
Calibration accuracy with resistance steps better than 2% (typ. 1%).
Best APC driver performance (iC-WK series) with monitor currents of 7µA to 1.4mA.
Wireless optical laser power adjustment capability.
Dual-mode programming by optical/electrical coupling.
Simple up⁄down clock interface to step the resistance.
Internal EEPROM.
Programmable device ID allows for parallel connection of up to 16 devices.
Manufacturer: iCHaus GmbH
Additional Information
| Type | Laser Driver |
|---|
