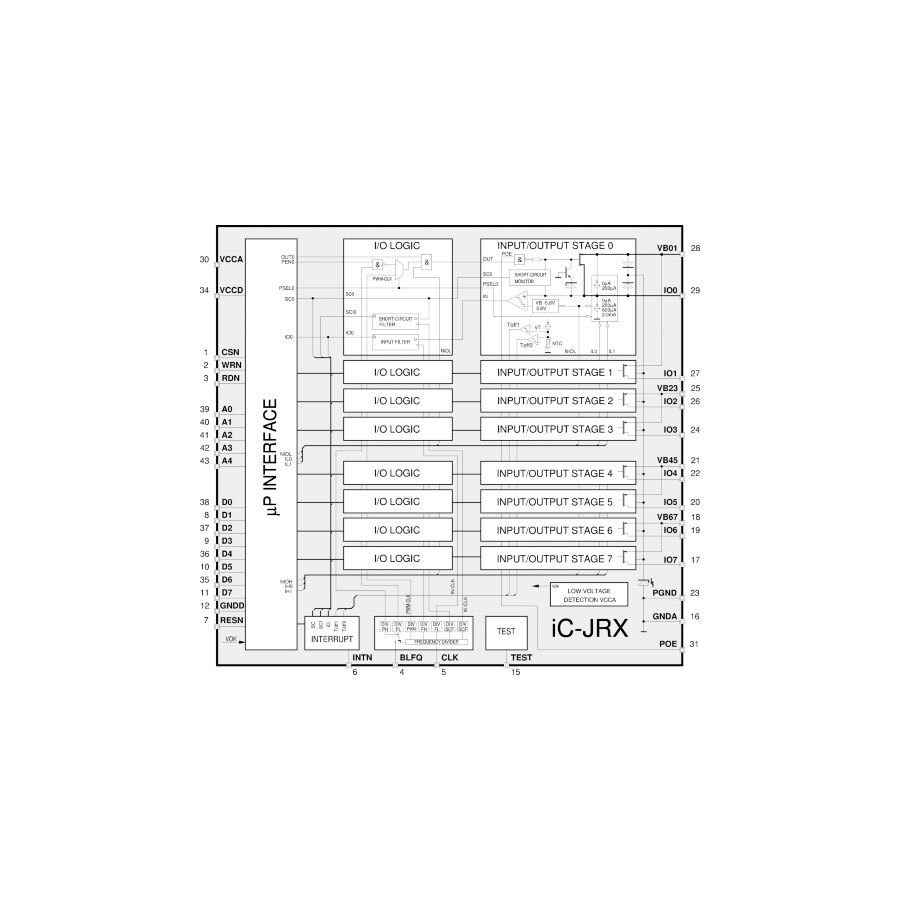

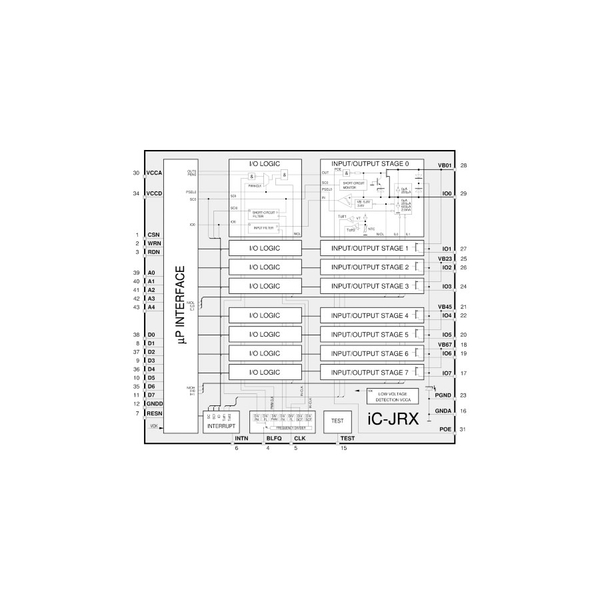

iC-JRX

µC Interface, 2×4 24V High-Side Driver operates bidirectional and features load diagnosis.

Features

2 x 4 bidirectional 24V input/output stages.
I/O mode programmable in 4-bit blocks<.
Guaranteed high-side driving capability of 100mAdc and 500mApeak for pulse load.
Short-circuit-proof drivers with high dielectric strength.
Low saturation voltage of 0.6V ⁄ 100mA and 2.0V ⁄ 500mA.
Integrated flyback circuits.
Programmable PWM function.
Flash mode for the outputs.
Digital input filters with filtering times externally adjustable.
Supply voltage and two-stage temperature monitoring.

Datasheet


Manufacturer: iCHaus GmbH
SKU: µC Interface, 2x4 24V High-Side Driver operating bidirectionally Category: Tags: , ,

Description

Applications

Dual quad high-side driver as a bidirectional µP interface with digital filtering for industrial 24V applications

Packages

QFN24
PLCC44 Package

Additional information

Type

I/O Circuits
