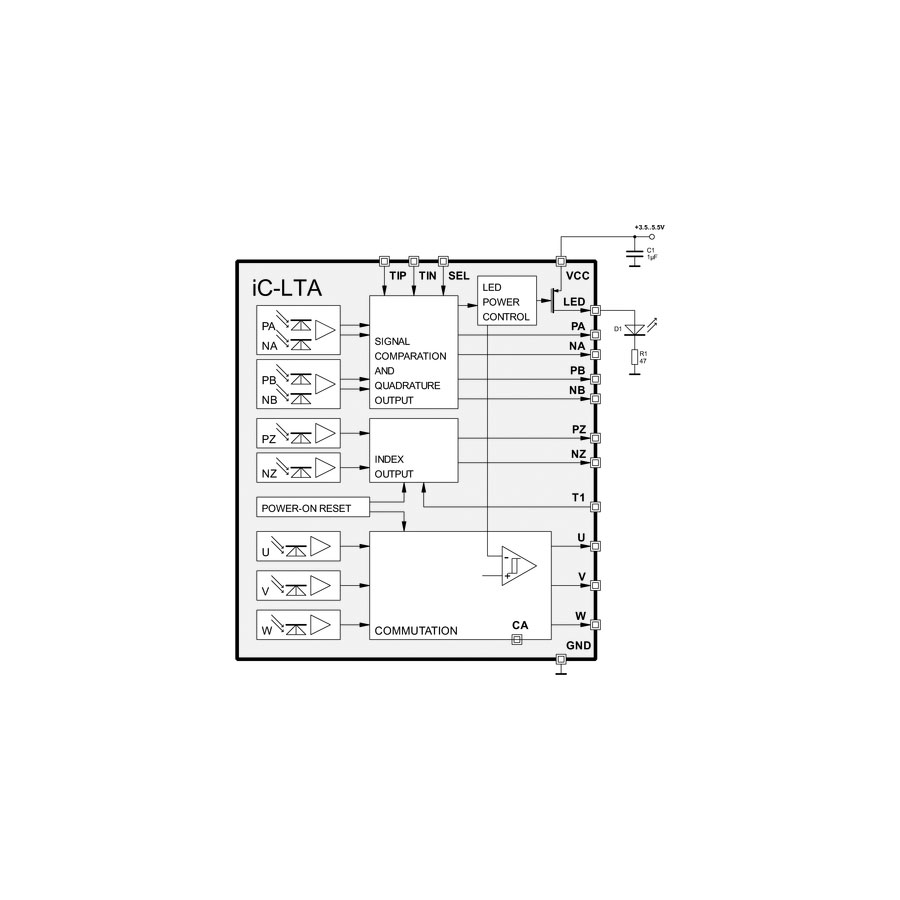

iC-LTA

Monolithic photodiode array with excellent signal matching.

Compact size for small encoders.

Moderate track pitch for relaxed assembly tolerances.

Low noise signal amplifiers with high EMI tolerance.

Single-pin programming of 3 operating modes: digital, x2 interpolation, and analog (alignment aid).

Complementary outputs: A, B, Z and NA, NB, NZ.

A-AND-B gated Z index signal.

U, V, W commutation signals (digital/analog).

All outputs ±4mA push-pull, current-limited and short-circuit-proof.

LED power control with 40mA high-side driver.

Single 3.5V to 5.5V operation, low power consumption.

Operating temperature range of -40 to +85°C (optional -40 to +120°C).
