Product Description
Applications
Optical position decoding for incremental encoders using the principle of differential scanning
Packages
OF3C
OF4C
Click to enlarge

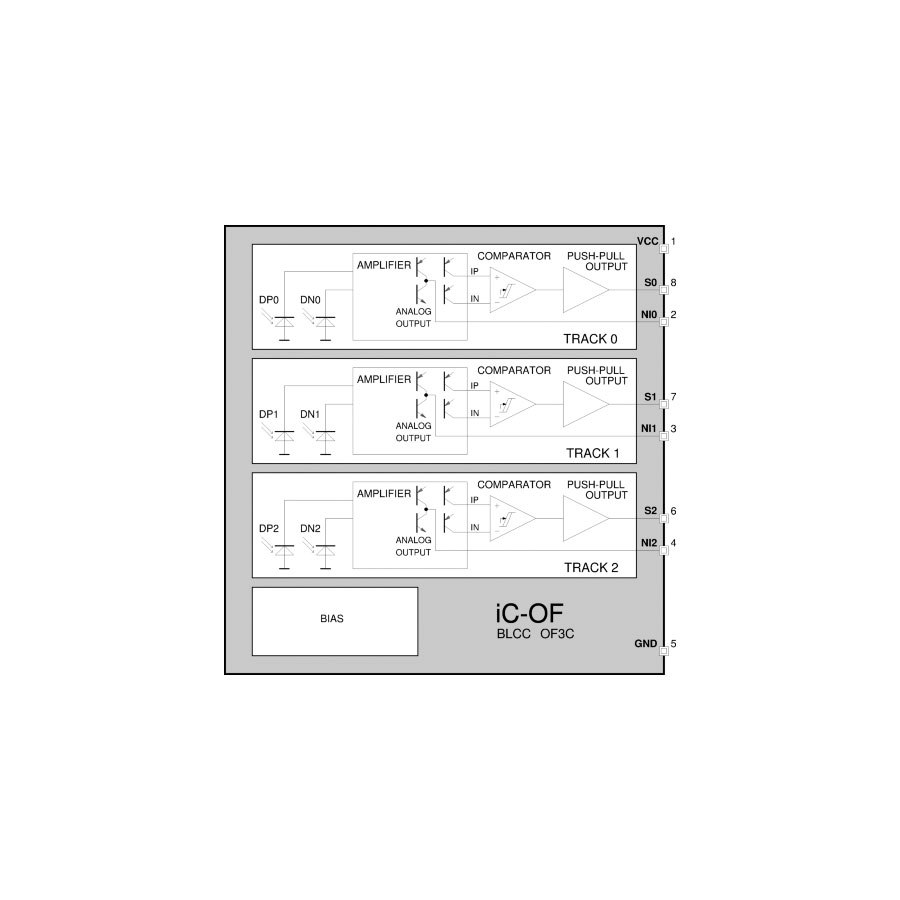

3-Bit Opto Encoder offers additional analog outputs
iC-OF
3-Bit Opto Encoder offers additional analog outputs.
Features
Monolithically integrated photodiodes (half-track pitch 300µm).
Excellent matching and reliability.
Elimination of dark current effects through differential scanning.
Comparators with precise photocurrent-related hysteresis.
Short-circuit-proof CMOS- ⁄ LSTTL-compatible outputs.
Additional analog push-pull outputs.
5V single supply operation, low power consumption.
Options: extended temperature range, customised COB and reticle assembly.
Datasheets
Manufacturer: iCHaus GmbH
Additional Information
| Type | Encoder – Optical |
|---|
