INOV17V
Description

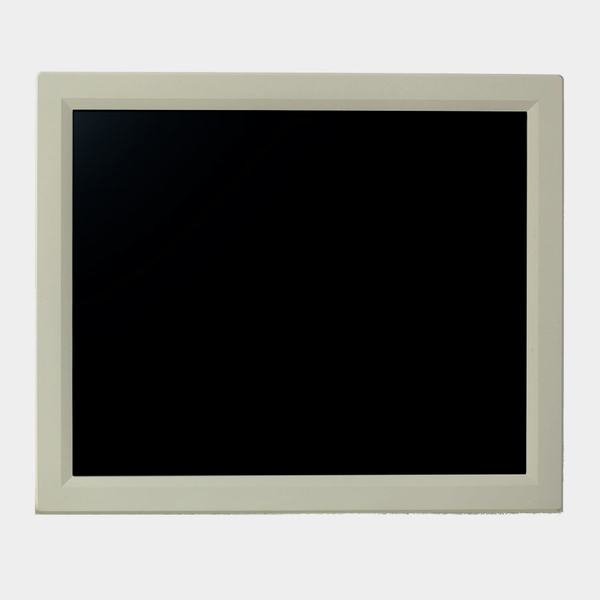

The INOV17V is a 17″ panel mount industrial monitor designed for industrial automation and monitoring. The 17″ LCD panel provides 1280 x 1024 (SXGA) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
17″ Panel Mount Monitor
1280 x 1024 Resolution
VGA, DVI-I, S-Video and Composite inputs
Optional VESA arm mount
Optional Resistive touch screen
Backlight Lifetime: Typ 50,000 hours
Support DC 12V input
Optional colour: Ivory, Dark Grey
Suitable for:
Factory Automation & Control
Downloads:
Description
|
Screen Size
|
17″, 1280 x 1024 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
0.264 x 0.264 mm
|
|
Luminance
|
Typ. 250cd/m2
|
|
Backlight Lifetime
|
Typ. 50,000 hours
|
|
Viewing Angle
|
Horizontal: Typ. 80°/80°, Vertical: Typ. 80°/80°
|
|
Input Frequency
|
Hor. 31.5-80 KHz, Ver. 56-75Hz
|
|
Contrast Ratio
|
Typ. 1000:1
|
|
Mount Type
|
Panel mount and VESA arm mount
|
|
Power Input
|
DC 12V (<3.5A)
|
|
Dimension
|
397 x 331.5 x 61 mm (15.63in x 13.05in x 2.4in)
|
|
Weight
|
6Kg (13.23lb)
|
|
Chassis
|
Front – Aluminium, Rear – Steel
|
I/O Ports
|
Digital
|
DVI-D (single link)
|
|
Analogue
|
15-pin VGA
|
|
Optional Inputs
|
S-Video and Composite video
|
Optional Touch Screen
|
Touch Sensor Type
|
5 wire resistive type
|
|
Touch Controller Type
|
RS232 9-pin support Win3.1/95/98/ME/NT/2k/XP/2003, Linux
|
Environment
|
Temperature
|
Operating: 0 to 50°C
|
Additional information
| Screen Size | 17" |
|---|---|
| Brightness | Typ. 300cd/m² |
| Mount Type | Panel Mount |
| Inputs | DVI, VGA |
| Touch Type | Resistive |
| Viewing Angle | 80° / 80° |
| Monitor Type | Factory/Industrial |
