INOV80(-T)
Description

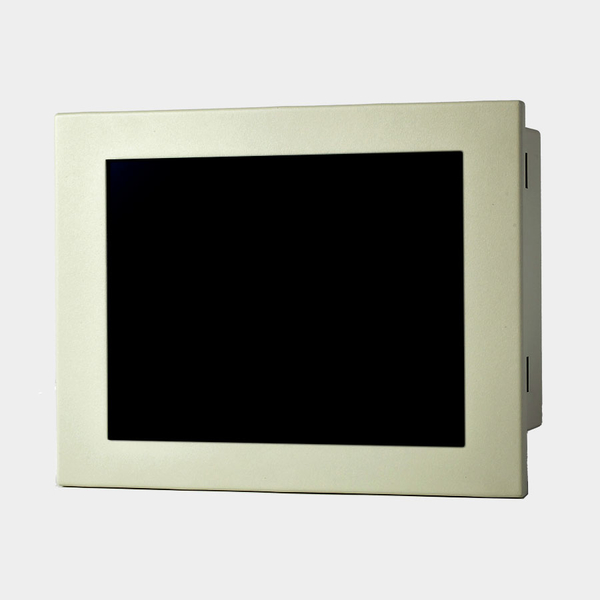

The INOV80 is an 8.4″ panel mount industrial monitor designed for industrial automation and monitoring. The 8.4″ LCD panel provides 800 x 600 (SVGA) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
8.4″ Panel Mount Monitor
800 x 600 Resolution
15-pin VGA input
Optional VESA arm mount
Resistive touch screen
Backlight Lifetime: Typ 20,000 hours
Support DC 12V 1.25A input
Optional colour: Ivory, Dark Grey
Suitable for:
Factory Automation & Control
Downloads:
Description
|
Screen Size
|
8.4″, 800 x 600 resolution
|
|
Display Colours
|
262,114
|
|
Pixel Pitch
|
0.213 x 0.213 mm
|
|
Luminance
|
Typ. 220cd/m2
|
|
Backlight Lifetime
|
Typ. 20,000 hours
|
|
Viewing Angle
|
Horizontal: Typ. 65°/65°, Vertical: Typ. 65°/45°
|
|
Input Frequency
|
Hor. 31.5-46.9 KHz, Ver. 56-75Hz
|
|
Contrast Ratio
|
Typ. 500:1
|
|
Mount Type
|
Panel mount and VESA arm mount
|
|
Power Input
|
DC 12V 1.25A
|
|
Dimension
|
226 x 174 x 47 mm (8.90in x 6.85in x 1.85in)
|
|
Weight
|
1.5Kg (3.31lb)
|
|
Chassis
|
Front – Aluminium, Rear – Steel
|

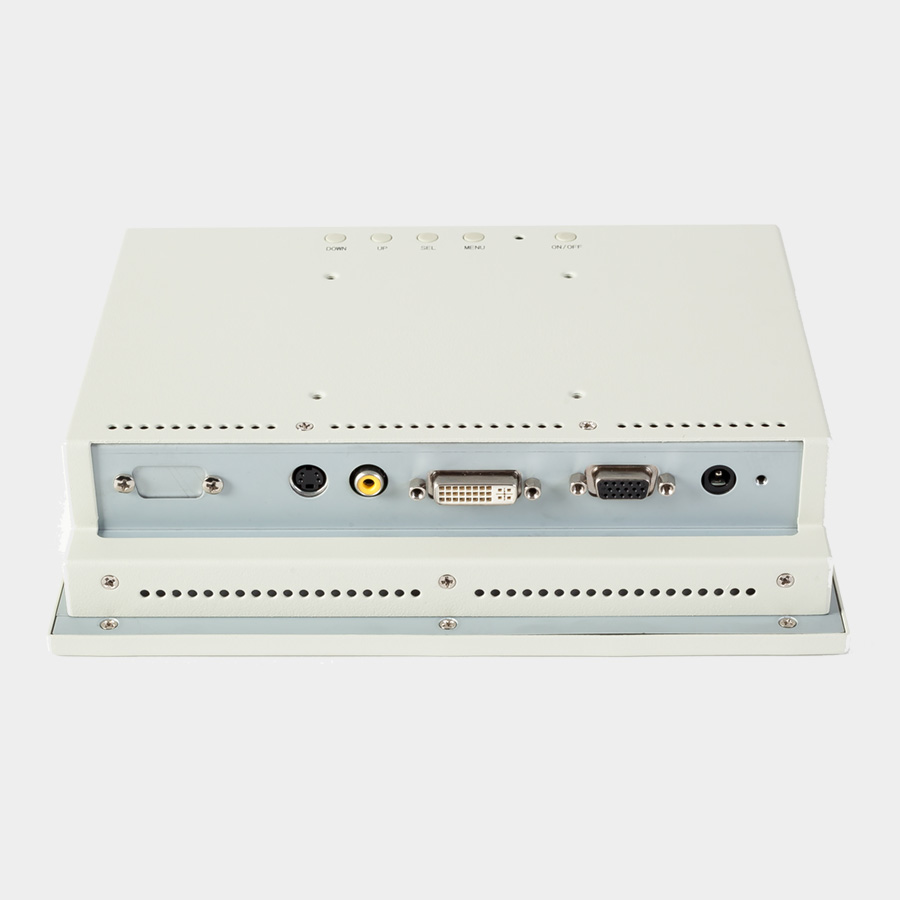

I/O Ports
|
Digital
|
Optional DVI-I
|
|
Analogue
|
15-pin VGA
|
|
Optional Inputs
|
S-Video and Composite video
|
Optional Touch Screen
|
Touch Sensor Type
|
4 wire resistivetype
|
|
Touch Controller Type
|
RS232 9-pin support Win3.1/95/98/ME/NT/2k/XP/2003, Linux
|
Environment
|
Temperature
|
Operating: 0 to 50°C
|
Additional information
| Mount Type | Panel Mount |
|---|---|
| Screen Size | 8.4" |
| Brightness | 220cd/m² |
| Inputs | DVI, VGA |
| Touch Type | Resistive |
| Operating Temperature | 0°C to 50°C |
| Monitor Type | Factory/Industrial |
