KS232-CD
Description
The KS230-CD is a fanless and low power open frame panel PC based on the Intel Atom N2800 CPU and is designed to be lowered into the front of a cabinet. The built-in 7″ LCD panel provides 800 x 480 (WVGA) resolution, and the resistive touch sensor provides precise control.

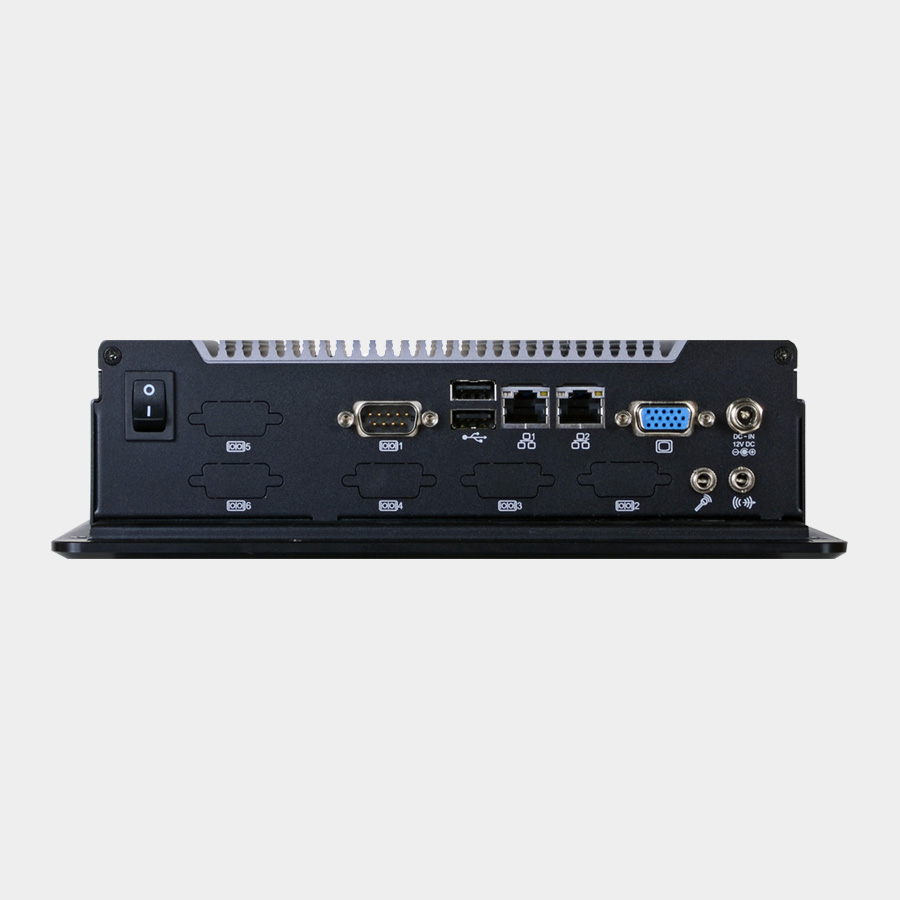

The 2 x USB2.0 and 6 x COM ports are among the many I/O ports available on this panel PC.
Features
7″ Fanless and Low Power Panel PC
Intel Atom N2800 CPU
Open Frame Chassis
2 x Gigabit LAN
Support DC 12V power supply
4 wire resistive touch screen
Support up to 4GB of RAM
Suitable for:
Factory Control
Industrial Automation
Downloads:
Description
|
CPU Type
|
Intel Atom N2800 (1.86GHz)
|
|
Memory Support
|
DDR-3 SODIMM (up to 4GB)
|
|
Front Bezel
|
No bezel as open frame type
|
|
IP65/NEMA
|
N/A
|
|
Power Supply
|
DC 12V or AC 100-240V with power adapter
|
|
O/S Support
|
Windows XP, XPe, 7, 7e
|
|
Dimension
|
230.4 x 142.32 x 59.5mm
|
|
Basic System Weight
|
TBD
|
|
VESA support
|
75mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD or SSD
|
|
Additional Storage
|
1 x Compact Flash slot
|
|
Serial Ports
|
6 x 9-pin*, COM2 for RS232/422/485
|
|
USB
|
2 x USB 2.0
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
2 x Gigabit
|
|
Audio
|
Line-out, Mic-in
|
|
Expansion
|
1 x Mini-PCIe slot for half size card. Supports PCIe or mSATA module
|
|
VGA
|
1 x 15-pin VGA output
|
|
Brightness Control
|
n/a
|
|
LCD
|
7″ WVGA TFT LCD
|
|
Touch Screen
|
4 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: -20 to 40°C (50°C with SSD), Storage: -30 to 80°C
|
|
Humidity
|
20 to 85%
|
Additional information
| Core | Intel, Intel Atom |
|---|---|
| Expansion | mini PCI-e, PCI-e |
| Fanless | Yes |
| Mount Type | Open Frame, VESA Mount |
| Operating System (OS) | Linux, Windows 7, Windows 7 e, Windows Vista, Windows XP |
| Operating Temperature | -20°C to 50°C |
| Screen Size | 7" |
| IP Rating | None |
