LCM-170(T)-RSS-IP
Click to enlarge

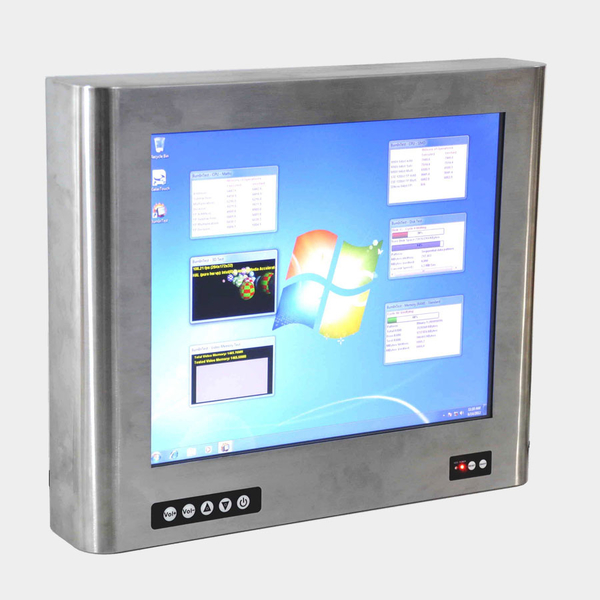

17" SXGA Fully IP65 Monitor with optional BNC input & Touch

LCM-170(T)-RSS-IP

Description

The LCM-170T-RSS-IP is a 17″ fully IP65 rated waterproof LCD monitor designed for industrial automation and monitoring in harsh environments. The 17″ LCD panel provides 1280 x 1024 (SXGA) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.

Features

17″ IP65 Waterproof Monitor
1280 x 1024 Resolution
VGA DVI or BNC input
VESA mount
Fully IP65 (NEMA4) rated
Optional sunlight readable LCD
Optional optical bonding and heater
Support AC or DC 12V input
Stainless Steel Bezel

Suitable for:

Food Processing Plant, Abattoir
Submarines, Ships & Yachts

Downloads:

Datasheet
SKU: 17" SXGA Fully IP65 Monitor with optional BNC input & Touch Categories: , Tags: , , , , ,

Product Description

Screen Size
17″, 1280 x 1024 resolution
Display Colours
16.7M
Pixel Pitch
TBD
Luminance
Typ. 300cd/m2 (Available with sunlight readable 800-1000cd/m2 LCD)
Viewing Angle
Horizontal: Typ. 80°/80°, Vertical: Typ. 70°/70°
Contrast Ratio
TBD
Mount Type
VESA arm mount
Power Input
DC 12V with external 110-250V AC PSU
Dimension
490 x 418 x 57 mm (19.3in x 16.5in x 2.2in)
Weight
TBD
Chassis
Stainless Steel

I/O Ports

Analogue
VGA
Optional
DVI + BNC

Front Glass Options

Touch Sensor Type
5 wire resistive (USB or serial)
Other Options
Vandal Proof, toughened glass, Optical Bonding, Heater Module

Environment

Operating Temperature
0 to 50°C (-20°C with Optional Heater Module)
Storage Temperature
-20 to 60°C

Additional Information

Waterproof

Yes
Mount Type

VESA Arm Mount
IP Rating

Fully IP65
Operating Temperature

0°C to 50°C
Inputs

BNC, DVI, VGA
Viewing Angle

70° / 70°, 80° / 80°
Touch Type

Resistive
Brightness

300 cd/m² (Typ.)
Screen Size

17″
Monitor Type

Waterproof/Outdoor
