LCM-190(T)-RSS-IP
Description

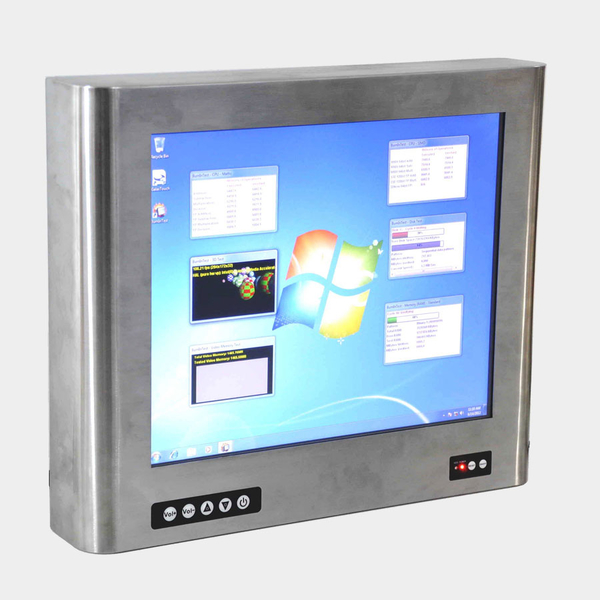

The LCM-190T-VP-RSS-IP is a 19″ fully IP65 rated waterproof LCD monitor designed for industrial automation and monitoring in harsh environments. The 19″ LCD panel provides 1280 x 1024 (SXGA) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
19″ IP65 Waterproof Monitor
1280 x 1024 Resolution
VGA DVI or BNC input
VESA mount
Fully IP65 (NEMA4) rated
Optional sunlight readable LCD
Optional optical bonding and heater
Support AC or DC 12V input
Stainless Steel Bezel
Suitable for:
Food Processing Plant, Abattoir
Submarines, Ships & Yachts
Downloads:
Description
|
Screen Size
|
19″, 1280 x 1024 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
TBD
|
|
Luminance
|
Typ. 300cd/m2 (Available with sunlight readable 800-1000cd/m2 LCD)
|
|
Viewing Angle
|
Horizontal: Typ. 80°/80°, Vertical: Typ. 75°/85°
|
|
Contrast Ratio
|
TBD
|
|
Mount Type
|
VESA arm mount
|
|
Power Input
|
DC 12V with external 110-250V AC PSU
|
|
Dimension
|
490 x 418 x 57 mm (19.3in x 16.5in x 2.2in)
|
|
Weight
|
TBD
|
|
Chassis
|
Stainless Steel
|
I/O Ports
|
Analogue
|
VGA
|
|
Optional
|
DVI
|
Front Glass Options
|
Touch Sensor Type
|
4 wire resistive or Infra-Red type
|
|
Other Options
|
Vandal Proof, toughened glass, Optical Bonding, Heater Module
|
Environment
|
Operating Temperature
|
0 to 50°C (-20°C with Optional Heater Module)
|
|
Storage Temperature
|
-20 to 60°C
|
Additional information
| Waterproof | Yes |
|---|---|
| Mount Type | VESA Arm Mount |
| Monitor Type | Waterproof/Outdoor |
| IP Rating | IP65 |
| Screen Size | 19" |
| Operating Temperature | 0°C to 50°C |
| Brightness | Typ. 300cd/m² |
| Inputs | DVI, VGA |
| Viewing Angle | 75° / 85°, 80° / 80° |
| Touch Type | Infrared, Resistive |
