LCM-220(T)-RSS-IP
Description

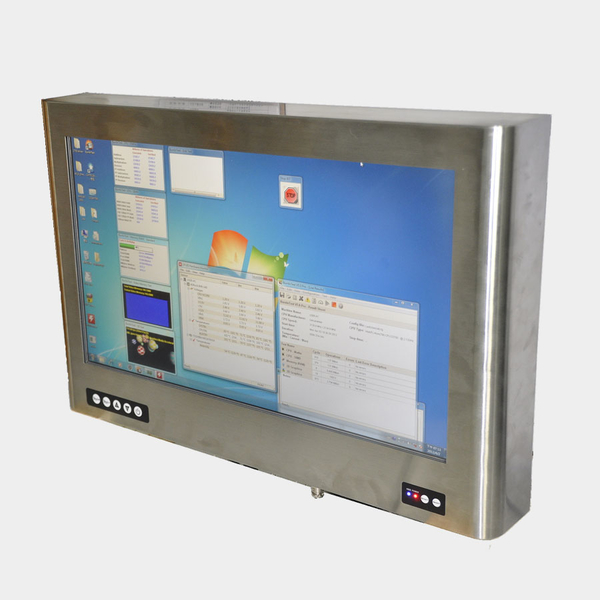

The LCM-220T-VP-RSS-IP is a 22″ fully IP65 rated waterproof LCD monitor designed for industrial automation and monitoring in harsh environments. The 22″ LCD panel provides 1920 x 1080 (FullHD) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
22″ IP65 Waterproof Monitor
1920 x 1080 Resolution
VGA DVI or BNC input
VESA mount
Fully IP65 (NEMA4) rated
Optional sunlight readable LCD
Optional optical bonding and heater
Support AC or DC 12V input
Stainless Steel Bezel
Suitable for:
Food Processing Plant, Abattoir
Submarines, Ships & Yachts
Description
|
Screen Size
|
22″, 1920 x 1080 resolution
|
|
Display Colours
|
16.2M
|
|
Pixel Pitch
|
TBD
|
|
Luminance
|
Typ. 300cd/m2 (Optional: 1000cd/m2)
|
|
Viewing Angle
|
Horizontal: Typ. 85°/85°, Vertical: Typ. 80°/80°
|
|
Contrast Ratio
|
1000:1
|
|
Mount Type
|
VESA arm mount
|
|
Power Input
|
External DC 12V or internal 110-250V AC PSU
|
|
Dimension
|
TBD
|
|
Weight
|
TBD
|
|
Chassis
|
Stainless Steel
|
I/O Ports
|
Analogue
|
VGA
|
|
Optional
|
DVI + BNC
|
Front Glass Options
|
Touch Sensor Type
|
5 wire resistive (USB or serial)
|
|
Other Options
|
Vandal Proof, toughened glass, Optical Bonding, Heater Module
|
Environment
|
Operating Temperature
|
0 to 50°C (-20°C with Optional Heater Module)
|
|
Storage Temperature
|
-20 to 60°C
|
Additional information
| Waterproof | Yes |
|---|---|
| Mount Type | VESA Arm Mount |
| Monitor Type | Waterproof/Outdoor |
| IP Rating | Fully IP65 |
| Brightness | 300 cd/m² (Typ.) |
| Operating Temperature | 0°C to 50°C |
| Inputs | BNC, DVI, VGA |
| Screen Size | 22" |
| Viewing Angle | 80° / 80°, 85° / 85° |
| Touch Type | Resistive |
