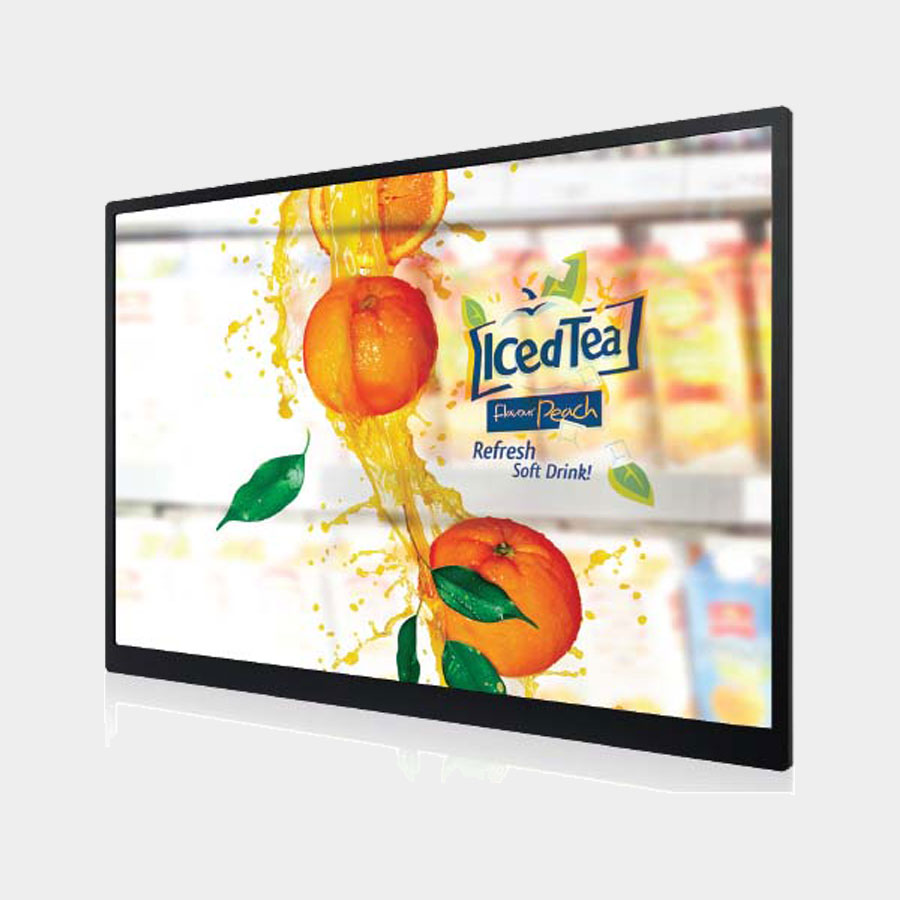

LD490EPY
Description
The LD490EPY is a 49″ transparent LCD panel made by LG designed for window mounted digital signage and information displays.
The 49″ LCD panel requires special backlight conditions, and provides 1920 x 1080 (Full HD) resolution, with 1300:1 contrast ratio for high quality image display, and mini-LVDS input.
Features
49″ LG Transparent LCD Panel
Native Resolution 1920×1080 @60Hz
Contrast Ratio: 1300:1
User Designed Backlight required
Wide Viewing Angle
Colour Depth: 10-bit
Anti-reflection coating
Downloads:
Description
|
Screen Size
|
49″, 1920 x 1080 resolution
|
|
Display Colours
|
10-bit (1.07B)
|
|
Response Time
|
8ms (G-to-G)
|
|
Transmittance
|
9.5% (Typ)
|
|
Contrast Ratio
|
Typ. 1300:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Backlight Type
|
Backlight conditions designed by user
|
|
Backlight Lifetime
|
n/a
|
|
Total Power Consumption
|
7.1W max (not including user designed backlight)
|
|
Power Input
|
LCD: 12Vdc
|
|
Outer Dimension
|
1085.5 x 616.0 x 1.3 mm (Panel glass only, not including frame)
|
Connectors
|
Digital
|
mini-LVDS
|
|
DC Jack
|
TBD
|
Environment
|
Operating Temperature
|
0 to 50°C
|
|
Storage Temperature
|
-20 to 60°C
|
Additional information
| Operating Temperature | 0°C to 50°C |
|---|---|
| Screen Size | 49" |
| Viewing Angle | 178° / 178° |
| Transparent Type | LCD Panel |
