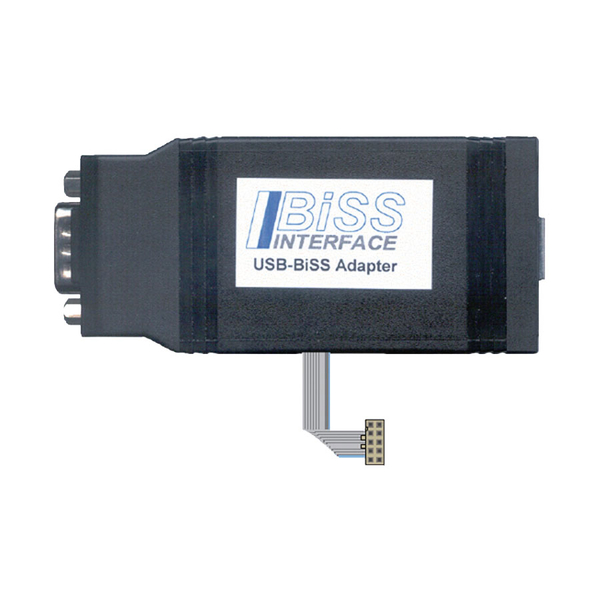

MB3U & MB3U-I2C
BiSS (SSI) and I2C to PC adapters (USB).
Features
BiSS data rates up to 10 Mbit/sec, SSI up to 4 Mbit/sec.
Synchronously triggered measurement data collection from up to 3 BiSS sensors or one SSI encoder.
Protocol compatible with BiSS Master iC-MB3.
USB 2.0 compatible.
Plug-in power supply optional for higher current.
MB3U:
Galvanic encoder signal separation.
Galvanically separated sensor supply sourced from the USB port (+12V ⁄ 90mA, +5V ⁄ 50mA).
MB3U-I2C:
Serial computer bus communication I2C or SPI.
Sensor supply sourced from the USB port (+5V up to 250mA) without isolation.
I2C data rates of up to 320kHz.
Datasheets
Manufacturer: iCHaus GmbH
Description
Applications
Bidirectional smart sensor communication
High-speed position data acquisition with linear and angle encoders
Motor feedback systems
Packages
MB3U
MB3U-I2C
Software
Additional information
| Type | BiSS & Other Tools |
|---|
