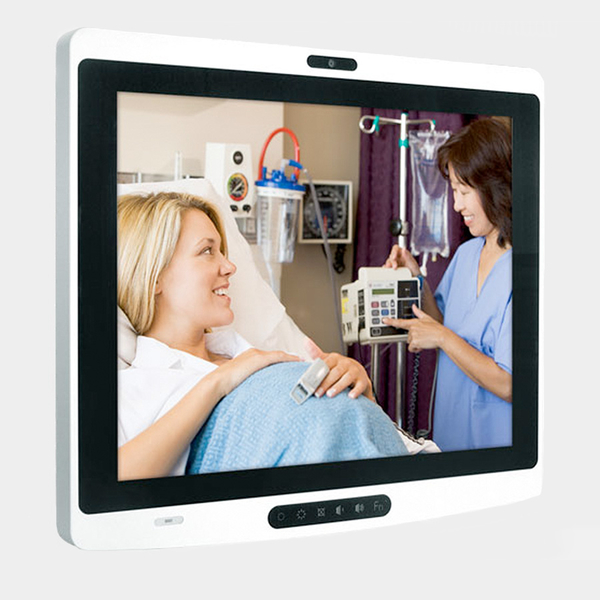

MM-7017
Description
The MM-7017 is a fanless low power medical terminal built using the latest Intel Atom D2550 CPU. The built-in 17″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the resistive or capacitive touch sensor provides precise control.
Optional features include WLAN, 3G, 2MP camera, barcode scanner and VOIP phone. For security, login can be achieved through MSR or RFID.
Features
17″ Fanless Medical Terminal
Support Intel Atom D2550
Ideal for Nursing/Hospitals
Resistive or Projected Capacitive touchscreen
Support up to 4GB of RAM
Optional WLAN and 3G function
Optional i-Button and MSR
Optional 1D / 2D barcode scanner
Downloads:
Description
|
CPU Type
|
Intel Atom D2550 or N2800 (embedded)
|
|
Memory Support
|
2pcs x DDR-3 SO-DIMM socket (up to 4GB)
|
|
Chipset Type
|
Intel© NM10
|
|
Power Supply
|
Medical Grade DC24V power supply (AC 100-240V)
|
|
O/S Support
|
Win 7 or Linux
|
|
Dimension
|
411 x 375 x 62mm
|
|
Basic System Weight
|
5.95kg
|
|
Certificate
|
CE / FCC CLass B (EN60601-1-2), EN/UL60601-1
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD/SSD
|
|
USB
|
6 x USB 2.0 (3 x external, 3 x internal)
|
|
Serial Ports
|
2 x 9-pin
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Audio
|
Line-out, Mic-in
|
|
Expansion
|
1 x mini-PCI-e for WLAN or 3G
|
|
VGA
|
1 x 15-pin VGA
|
|
LCD
|
17″ SXGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive or projected capacitive
|
|
Option
|
RFID, MSR, Fingerprint, Bluetooth, VOIP phone and Barcode Scanner
|
Environment
|
Temperature
|
Operating: 0 to 40°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Screen Size | 17" |
|---|---|
| Core | Intel, Intel Atom |
| Expansion | PCI-e |
| Mount Type | VESA Mount |
| Operating System (OS) | Linux, Windows 7 |
| Operating Temperature | 0°C to 40°C |
| Fanless | Yes |
| IP Rating | None |
