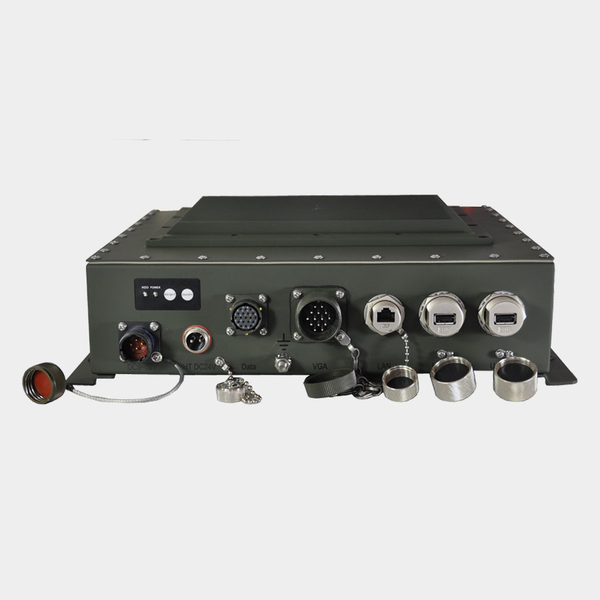

MPC-G6-HS-IP-MIL-xx
Description
The MPC-G6-HS-IP-MIL-xx is a compact, military spec computer built for high performance use due to the Intel Core-i 6th gen. CPU support.
The many I/O ports are specified to D-38999 standard, and the power system is MIL-STD-1275 to support the difficult conditions in military vehicles.
Features
Intel Core-i 6th gen. Book-size PC
Support Core-i3/i5/i7 embedded CPU
Slim and compact size
Perfect for small military vehicles
D-38999 connectors
MIL-STD-1275 power system
Low power requirement
Low Noise
Description
|
CPU Type
|
Intel Core-i 6th gen (Option: i3-6100U, i5-6300U or i7-6600U)
|
|
Chipset
|
Intel NM10
|
|
Memory Support
|
2pcs x DDR-3L DIMM socket (up to 16GB)
|
|
Video Controller
|
HD Graphics 520 Embedded
|
|
Power Supply
|
DC 12V, with options for DC 9-21V or AC 90-240V input
|
|
Basic System Weight
|
TBC
|
|
Dimension
|
TBC
|
|
Certificate
|
FCC / CE, MIL-STD-461, MIL-STD-1275, D-38999
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ SATA HDD/SSD
|
|
USB
|
3 x USB 2.0
|
|
COM / CAN
|
Option
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
n/a
|
|
Graphics Output
|
1 x VGA
|
|
BNC
|
Optional for camera
|
Environment
|
Temperature
|
Operating: 0 to 50°C, Storage: -20 to 60°C
|
|
Option
|
Operating: -40 to 60°C
|
Additional information
| Core | Intel Core i3, Intel Core i5, Intel Core i7 |
|---|---|
| Fanless | Yes |
| Operating System (OS) | Windows 7, Windows 7 e, Windows 8, Windows 8 e, Windows 8.1 |
