P550HVN02.0

Description

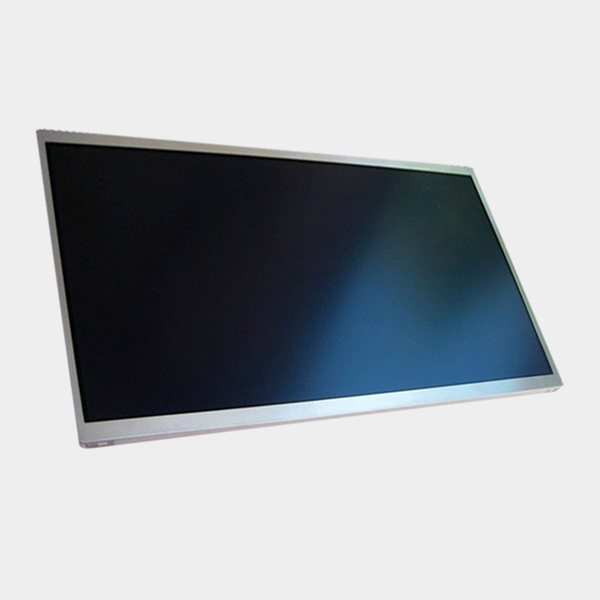

The P550HVN02.0 is a 55″ widescreen LCD panel made by AUO designed for digital signage and information displays.
The 55″ LCD panel uses an edge LED backlight for low power usage, and provides 1920 x 1080 (Full HD) resolution, with 4000:1 contrast ratio for high quality image display.

Features

55″ AUO LCD Panel
Native Resolution 1920×1080 @60Hz
Luminance: 450cd/m2
Contrast Ratio: 4000:1
Edge LED Backlight
Wide Viewing Angle
Colour Gamut: 72%
Pixel Pitch: 0.21 x 0.63
SKU: 55" FullHD LCD Panel for Digital Signage Category: Tags: , , , ,

Description

Screen Size
55″, 1920 x 1080 resolution
Display Colours
8-bit + FRC (10-bit)
Pixel Pitch
0.21 x 0.63 mm
Luminance
Typ. 450cd/m2
Contrast Ratio
Typ. 4000:1
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
Edge LED
Backlight Lifetime
Typ. 60,000 hours
Total Power Consumption
108W
Power Input
LCD: 12Vdc, LED: 24Vdc
Dimension
1236 x 707 x 25.5 mm

Connectors

LVDS
JAE FI-RE51S-HF
Backlight
Cvillux CI0114M1HRL-NH

Environment

Operating Temperature
0 to 50°C
Storage Temperature
-20 to 60°C

Additional information

Screen Size

55"

Monitor Type

Panel – Signage

Inputs

JAE FI-RE51S-HF

Brightness

450cd/m²
