PA-3122
Description

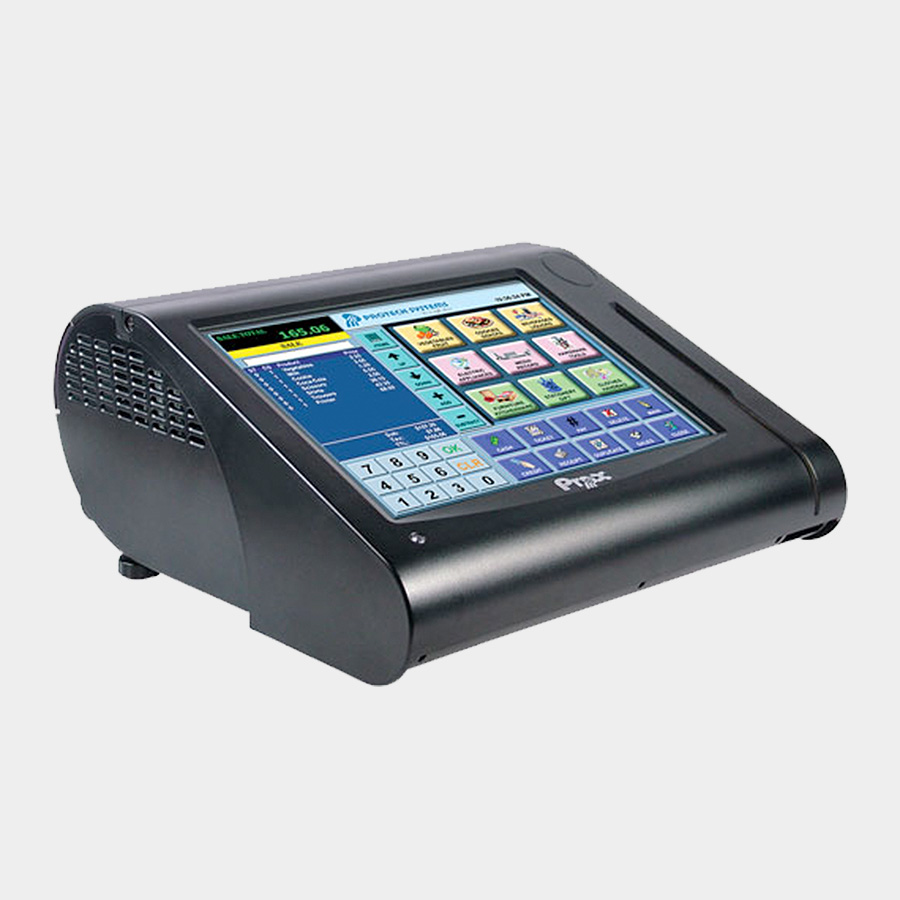

The PA-3122 is a desktop, low power point of sale terminal built using the latest Intel Celeron J1900 quad core CPU with a truly flat front. The built-in 10″ LCD panel provides 1024 x 768 (XGA) or 800 x 600 (SVGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The five USB ports and three COM ports are among the many I/O ports available on this POS terminal, and expansion is possible with cash drawer, customer VFD, and MSR options.
Features
10″ Low Power, Flat Desktop Panel PC
Support Intel Celeron J1900 (2GHz)
Silent 5 side IP54 Terminal
Optional Customer VFD
5 wire resistive touchscreen
Support up to 8GB of RAM
Optional Fingerprint module
Optional i-Button and MSR
Downloads:
Description
|
CPU Type
|
Intel Celeron J1900 (2GHz)
|
|
Memory Support
|
1pcs x DDR-3L SO-DIMM socket (up to 8GB)
|
|
Chipset Type
|
On chip solution
|
|
Power Supply
|
External AC 100-240V 72W power supply
|
|
O/S Support
|
Win 8, POSReady7 and WES7
|
|
Dimension
|
300 x 299 x 135mm
|
|
Basic System Weight
|
5kg
|
|
Certificate
|
CE / FCC
|

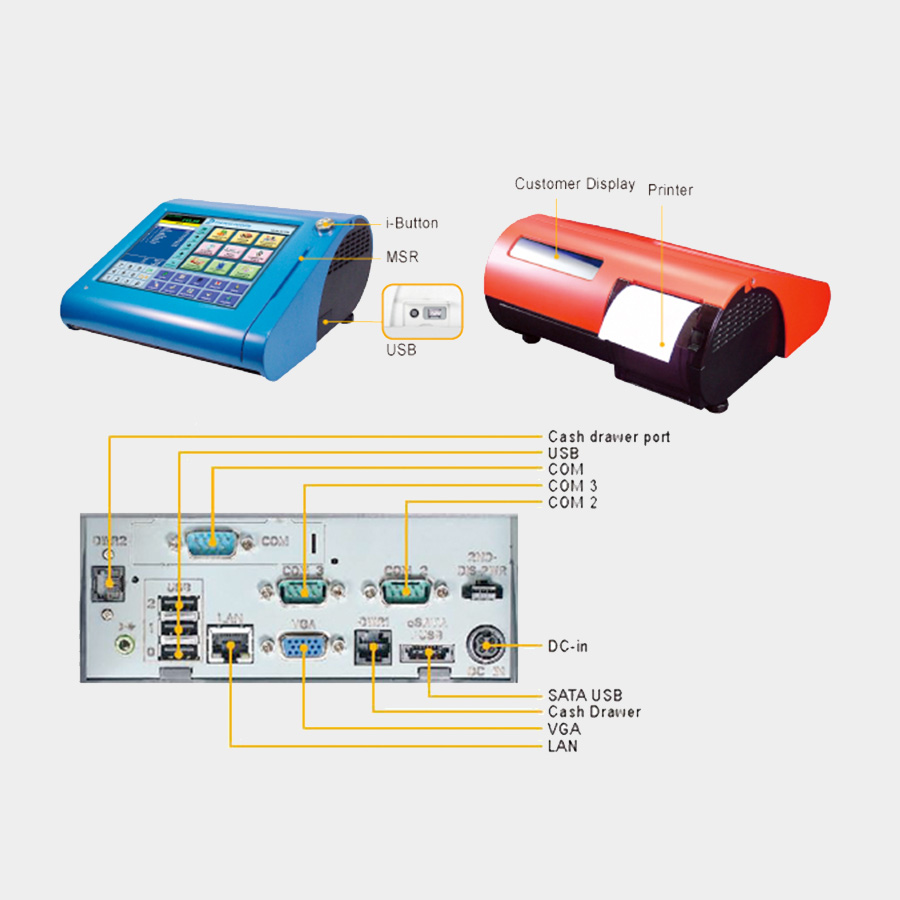

I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD/SSD
|
|
USB
|
4 x USB 2.0 on rear, 1 x USB 2.0 on side
|
|
Serial Ports
|
3 x RJ-45
|
|
eSATA
|
1 x eSATA + USB
|
|
Parallel
|
Optional DB-25 Parallel port or extra DB-9 Serial port
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
n/a
|
|
Expansion
|
RJ-11 cash drawer port
|
|
VGA
|
1 x 15-pin VGA
|
|
LCD
|
10″ SVGA or XGA TFT LCD
|
|
Touch Screen
|
5 wire True Flat analogue resistive or Projected Capacitive
|
|
Brightness
|
230cd/m² for SVGA, 400cd/m² for XGA
|
|
Option
|
i-Button, MSR, 2″/3″ thermal printer, VFD customer display, fingerprint reader
|
Environment
|
Temperature
|
Operating: 0 to 35°C, Storage: -5 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Core | Intel, Intel Celeron |
|---|---|
| Operating System (OS) | POS Ready7, Windows 8 |
| Operating Temperature | 0°C to 35°C |
| Screen Size | 10" |
| Fanless | Yes |
| IP Rating | None |
