PA-6225-PPC
Description

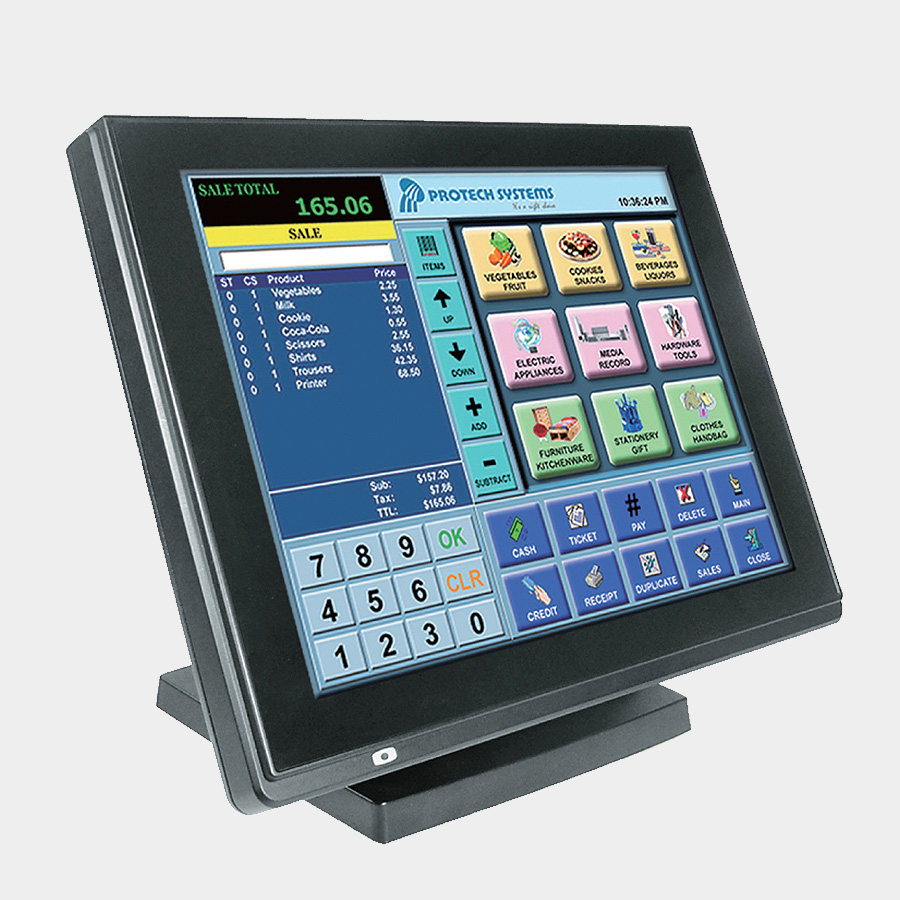

The PA-6225 is a low power point of sale terminal built using the latest Intel Celeron J1900 quad core CPU with a truly flat front. The built-in 15″ LCD panel provides 1024 x 768 (XGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The five USB ports and three COM ports are among the many I/O ports available on this POS terminal, and expansion is possible with cash drawer, customer display, and MSR options.
Features
15″ Low Power, Flat Desktop Panel PC
Support Intel Celeron J1900 (2GHz)
Silent 5 side IP54 Terminal
Optional Customer Display
5 wire resistive or PCT touchscreen
Support up to 8GB of RAM
Optional Fingerprint module
Optional i-Button and MSR
Available with and without desktop stand
Downloads:
Description
|
CPU Type
|
Intel Celeron J1900 (2GHz)
|
|
Memory Support
|
1pcs x DDR-3L SO-DIMM socket (up to 8GB)
|
|
Chipset Type
|
On chip solution
|
|
Power Supply
|
External AC 100-240V 72W power supply
|
|
O/S Support
|
Win 8, POSReady7 and WES7
|
|
Dimension
|
377 x 308 x 58mm
|
|
Basic System Weight
|
5kg
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD/SSD
|
|
USB
|
4 x USB 2.0 on rear, 1 x USB 2.0 on side
|
|
Serial Ports
|
3 x RJ-45
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
1 x Line-out
|
|
Expansion
|
RJ-11 cash drawer port
|
|
VGA
|
1 x 15-pin VGA
|
|
LCD
|
15″ XGA TFT LCD
|
|
Touch Screen
|
5 wire True Flat analogue resistive or Projected Capacitive
|
|
Brightness
|
250cd/m²
|
|
Second Display
|
Optional 8″ or 10.4″ Display
|
|
Option
|
i-Button, MSR, VFD customer display, fingerprint reader
|
Environment
|
Temperature
|
Operating: 0 to 35°C, Storage: -5 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Screen Size | 15" |
|---|---|
| Core | Intel |
| Fanless | Yes |
| Mount Type | Desktop, VESA Mount |
| Operating System (OS) | POS Ready7, Windows 8 |
| Operating Temperature | 0°C to 35°C |
| IP Rating | IP65 Front Side (Only) |
