PA-8025
Description

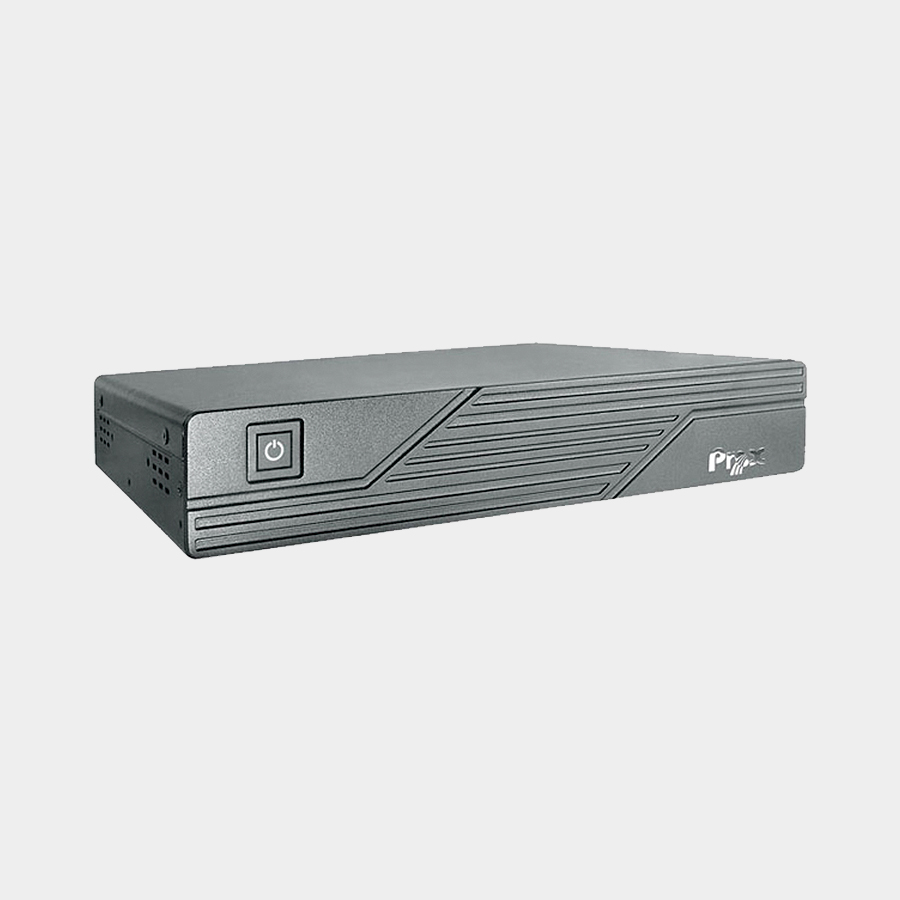

The PA-8025 is a low power book size computer built in a compact chassis with Intel Celeron J1900 CPU support.
The five USB ports and four COM ports are among the many I/O ports available on this book size PC, and options include cash drawer port and e-SATA.
Features
Intel Celeron J1900 Book-size PC
Support up to 4GB of RAM
Easy Maintenance Design
Optional Wireless LAN
Gigabit LAN
VGA output
e-SATA and Cash Drawer Ports
Industry level of durability
Downloads:
Description
|
CPU Type
|
Intel Celeron J1900 (embedded)
|
|
Chipset
|
n/a
|
|
Memory Support
|
1pcs x DDR-3 SODIMM socket (up to 8GB)
|
|
O/S Support
|
Windows 8 / 7 / POSReady7
|
|
Power Supply
|
DC Input with external 72-120W adapter
|
|
Basic System Weight
|
4kg
|
|
Dimension
|
277 x 192 x 53 mm (10.24in x 9.45in x 2.44in)
|
|
Certificate
|
FCC / CE
|

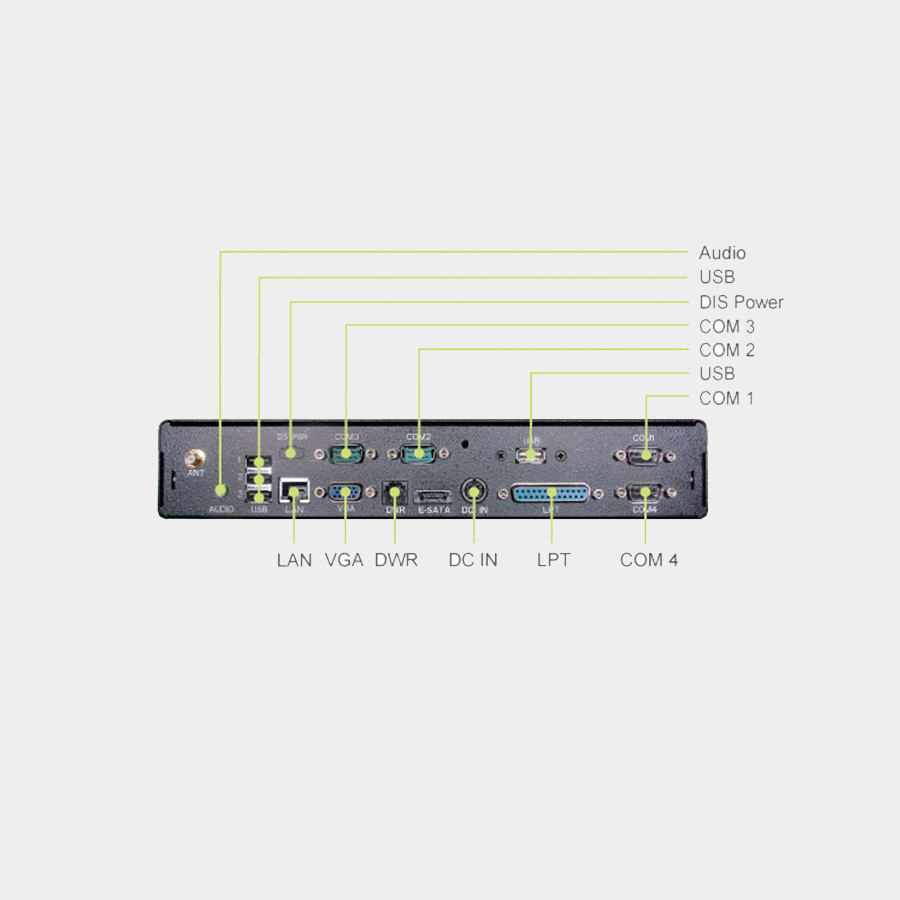

I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD
|
|
USB
|
5 x USB 2.0
|
|
Serial Ports
|
4 x 9-pin
|
|
Parallel
|
1 x 25-pin, supporting SPP, EPP and ECP
|
|
Keyboard/Mouse
|
n/a
|
|
Video Outputs
|
1 x VGA
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
Line-out
|
|
Expansion
|
e-SATA, WLAN, Cash Drawer
|
Environment
|
Temperature
|
Operating: 0 to 35°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Fanless | Yes |
|---|---|
| Core | Intel |
| Operating System (OS) | POS Ready7, Windows 8 |
