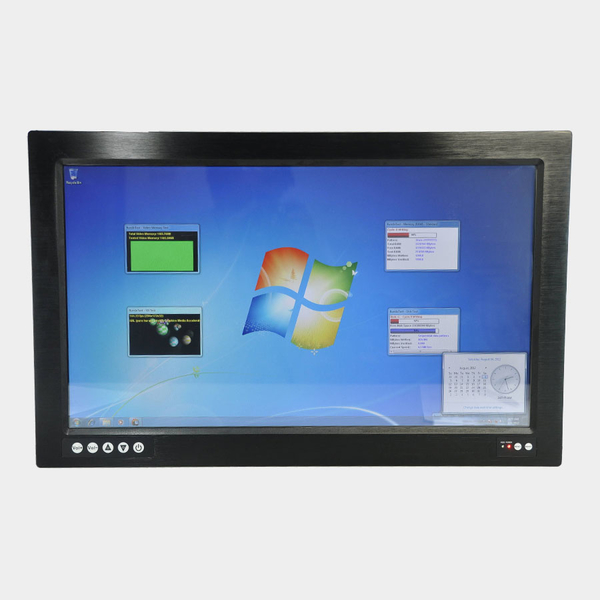

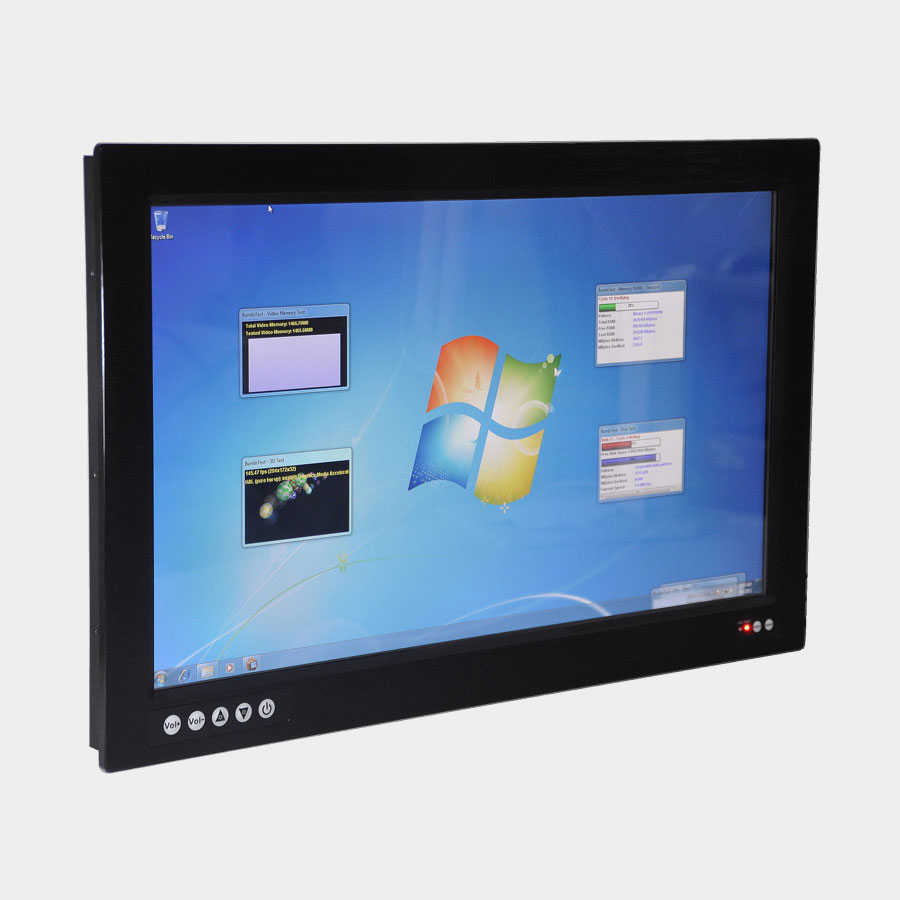

PPC-23627PG-VP-AL-Slm
Description
The PPC-23627PG-VP-AL-Slm is a Full HD widescreen panel PC that can provide great performance due to the Intel Atom D2700 CPU. The chassis is made from anti-corrosion galvanised steel and aluminium.
The Dual Gigabit LAN and 6 USB2.0 ports are among the many I/O ports available on this panel PC and power options are available for AC and DC supplies.
Features
23.6″ Slimline Panel PC
Support Intel Atom D2700 (2.13GHz)
Dual Gigabit LAN
Support DC 9-32V or 90-264V AC Power
Vandal Proof Glass
Support up to 4GB of RAM
Optional Digital I/O Port
IP65 Rated Front Side
Suitable for:
Factory Control
Military Devices
Description
|
CPU Type
|
Intel Atom D2700 (2.13GHz)
|
|
Memory Support
|
1pcs x DDR-3 SODIMM socket (up to 4GB)
|
|
Chassis
|
Anti-corrosion Galvanised Steel Chassis and Aluminium Bezel
|
|
Ruggedness Certification
|
Front side IP65, Other sides (except I/O) IP54, MIL-STD-810F
|
|
Power Supply
|
DC 9~32V or AC 90~264V
|
|
O/S Support
|
Win 7
|
|
Mounting Method
|
VESA-75 or Panel Mount
|
|
Dimension
|
595 x 375 x 97mm
|
|
Conformity Certification
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
2 x 2.5″ HDD/SSD
|
|
USB
|
6 x USB 2.0 (1 x Front Side)
|
|
Serial Ports
|
6 x 9-pin
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
2 x Gigabit
|
|
Digital I/O
|
Optional 4in/4out
|
|
VGA
|
15-pin for Secondary Display
|
|
DVI
|
n/a
|
|
Brightness Control
|
Optional front panel controls
|
LCD
|
LCD Size
|
23.6″
|
|
LCD Resolution
|
1920 x 1080
|
|
Touch Screen
|
Optional 5-wire Analogue Resistive or Multi-Point Capacitive
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -20 to 80°C
|
|
Humidity
|
5 to 95%
|
Additional information
| Screen Size | 23.6", 24" |
|---|---|
| Core | Intel, Intel Atom |
| Operating Temperature | 0°C to 60° C |
| Operating System (OS) | Windows 7 |
| Mount Type | Panel Mount, VESA Mount |
| IP Rating | IP65 Front Side (Only) |
