PL-520-B1
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
50
|
mW
|
|
Reverse
Voltage |
VR
|
+2
|
V
|
|
Operating
Current |
IF
|
200
|
mA
|
|
Operating
Temperature |
Topr
|
-20 to +60
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
|
Soldering
Temperature |
Tsolder
|
+260
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
125
|
160
|
mA
|
CW
|
|
Operating
Voltage |
VF
|
–
|
+6.9
|
+8.0
|
V
|
–
|
|
Spectral
Width (FWHM) |
Δλ
|
–
|
2
|
–
|
nm
|
Pop=50mW
|
|
Beam
Divergence |
Θ// x Θ⊥
|
5×19
|
7×22
|
9×25
|
deg
|
Pop=50mW
|
|
Peak
Wavelength |
λp
|
515
|
520
|
530
|
nm
|
Pop=50mW
|
|
Polarisation
|
Pgr
|
–
|
100:1
|
–
|
Pop=50mW
|
|
|
Monitor
Current |
Im
|
–
|
–
|
–
|
μA
|
Pop=80mW
|
Additional information
| Colour | Green (510 – 532nm) |
|---|---|
| Operating Current | 200 |
| Operating Voltage | 6.9 Typ. 8.0 Max. |
| Power Output | 50mW |
| Wavelength | 515nm |
| PIN Type | G (no PD) |

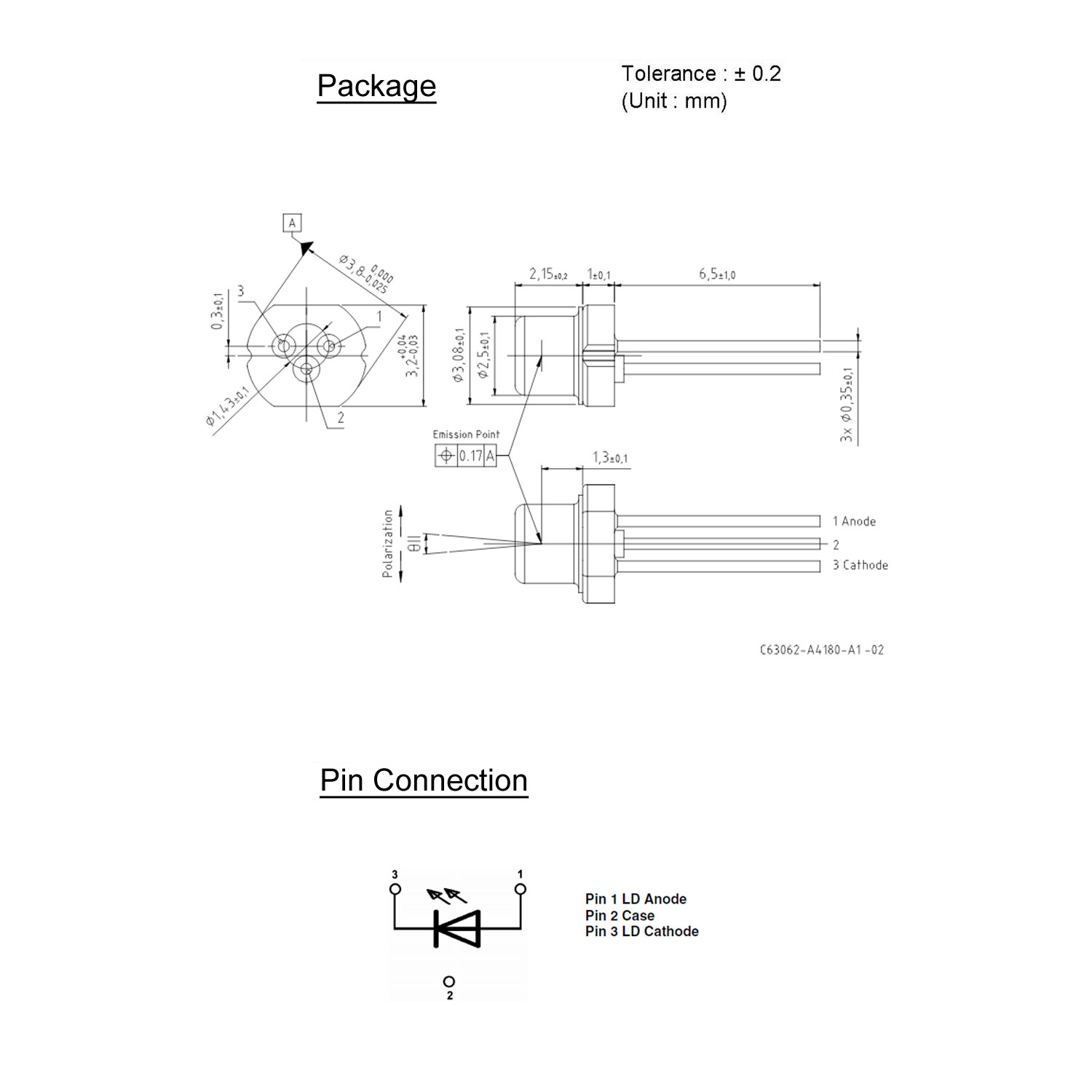

| Package Type | TO-38 |
| Driver IC | iC-HB, iC-HG, iC-HK |
