PL-520B

Feature

OSRAM Green Laser Diode

Wavelength: 515-530nm (typ.)

Output Power: 80mW

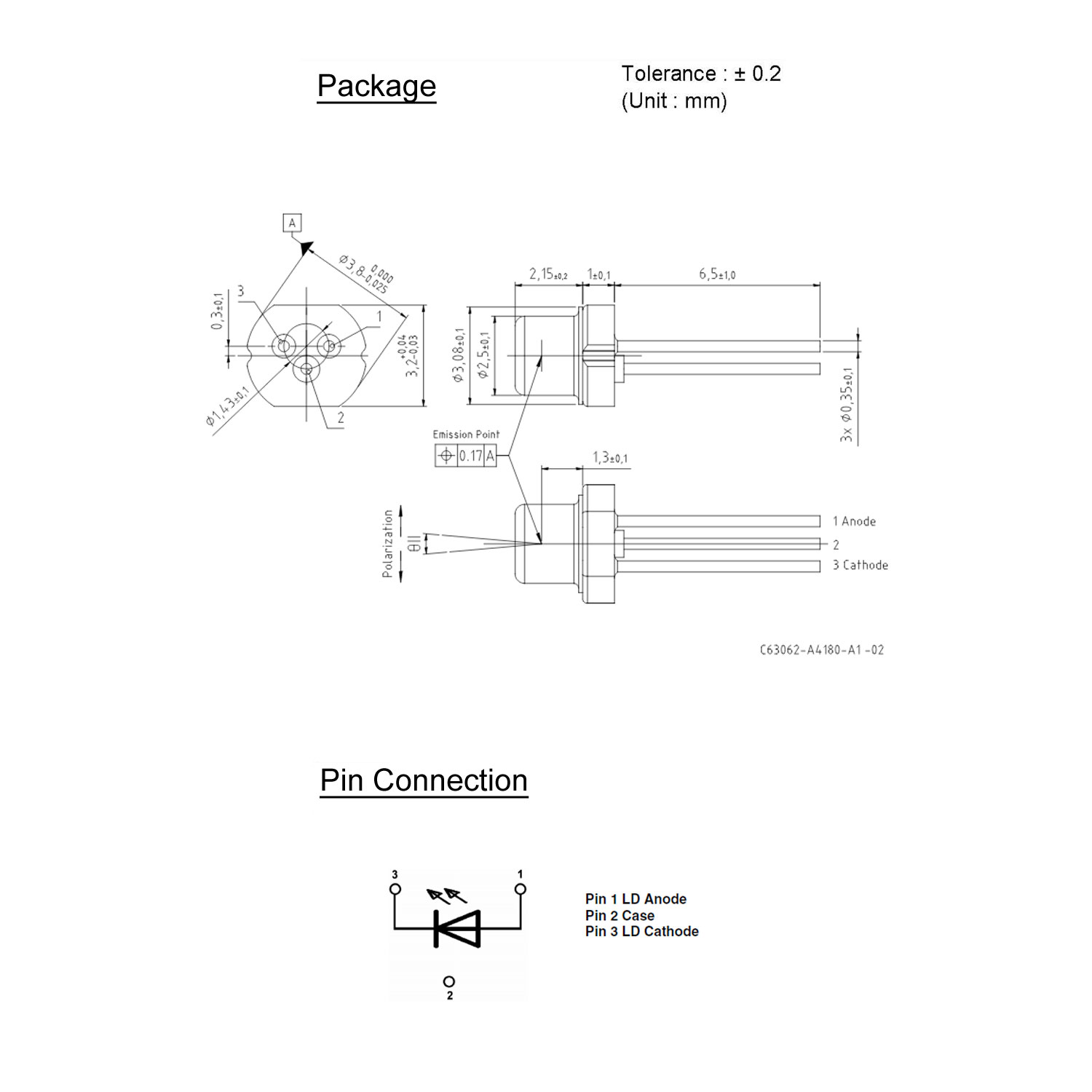

Package: TO38 (RoHS compliant)

Applications

Laser Projection

Biomedical Applications

Holography

Metrology

Driver ICs

This diode is best driven using the following IC Haus driver:

Downloads

SKU: 520nm, 80mW Green Laser Diode (OSRAM) Categories: Laser Diodes, Laser Diodes Tags: 515nm, 520nm, 530nm, 80mW, Green, Laser DIode

Description
Additional information

Description

Absolute Maximum Ratings

(Ta=25°C)

Items	Symbols	Values	Units
Optical Output Power	Po	80	mW
Reverse Voltage	V_R	+2	V
Operating Current	I_F	300	mA
Operating Temperature	Topr	-20 to +60	°C
Storage Temperature	Tstg	-40 to +85	°C
Soldering Temperature	T_solder	+260	°C

Electrical and Optical Characteristics

(Ta=25°C)

Item	Symbols	Min.	Typ.	Max.	Unit	Condition
Operating Current	Iop	–	200	240	mA	CW
Operating Voltage	V_F	–	+6.4	+8.0	V	–
Spectral Width (FWHM)	Δλ	–	2	–	nm	P_op=80mW
Beam Divergence	Θ_// x Θ_⊥	5×18	6.3×22.5	7.5×25	deg	P_op=80mW
Peak Wavelength	λp	515	520	530	nm	P_op=80mW
Polarisation	P_gr	–	100:1	–		P_op=80mW
Monitor Current	Im	–	–	–	μA	P_op=80mW

Additional information

Colour	Green (510 – 532nm)
Operating Current	300
Operating Voltage	6.4 Typ. 8.0 Max.
Power Output	80mW
Wavelength	515nm, 520nm, 525nm, 530nm
PIN Type	G (no PD)
Package Type	TO-38
Driver IC	iC-HB, iC-HG, iC-HK
