PLT5-510-B2
Feature
OSRAM Green Laser Diode
Wavelength: 515-520nm (typ.)
Output Power: 10mW

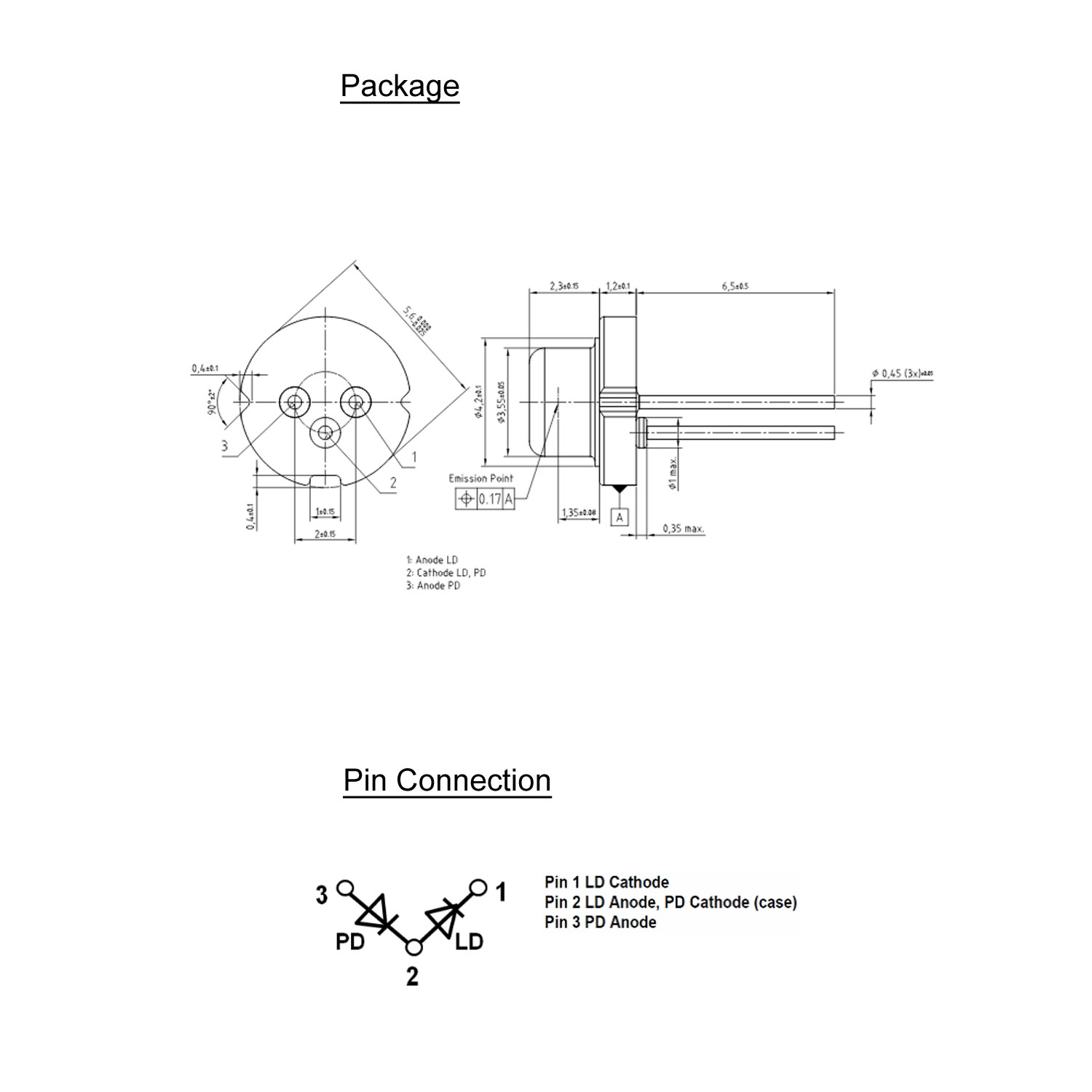

Package: TO56 (RoHS compliant)
Applications
Laser Projection
Biomedical Applications
Holography
Metrology
Driver ICs
This diode is best driven using the following IC Haus driver:
Downloads
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
10
|
mW
|
|
Reverse
Voltage |
VR
|
+2
|
V
|
|
Operating
Current |
IF
|
120
|
mA
|
|
Operating
Temperature |
Topr
|
-20 to +60
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
|
Soldering
Temperature |
Tsolder
|
+260
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
60
|
100
|
mA
|
CW
|
|
Operating
Voltage |
VF
|
–
|
+5.4
|
+7.0
|
V
|
–
|
|
Spectral
Width (FWHM) |
Δλ
|
–
|
2
|
–
|
nm
|
Pop=10mW
|
|
Beam
Divergence |
Θ// x Θ⊥
|
5×19
|
6.6×21.4
|
9×25
|
deg
|
Pop=10mW
|
|
Peak
Wavelength |
λp
|
515
|
–
|
520
|
nm
|
Pop=10mW
|
|
Polarisation
|
Pgr
|
–
|
100:1
|
–
|
Pop=10mW
|
|
|
Monitor
Current |
Im
|
–
|
150
|
–
|
μA
|
Pop=10mW
|
Additional information
| Colour | Green (510 – 532nm) |
|---|---|
| Operating Current | 120 |
| Operating Voltage | 5.4 Typ. 7.0 Max. |
| Power Output | 10mW |
| Wavelength | 520nm, 525nm, 530nm |
| PIN Type | N or A (inc. PD) |
| Package Type | TO-56 |
| Driver IC | iC-HB, iC-HK, iC-NZ, iC-NZN |
