PLT5-488
Feature
OSRAM Cyan Laser Diode
Wavelength: 488nm (typ.)
Output Power: 60mW

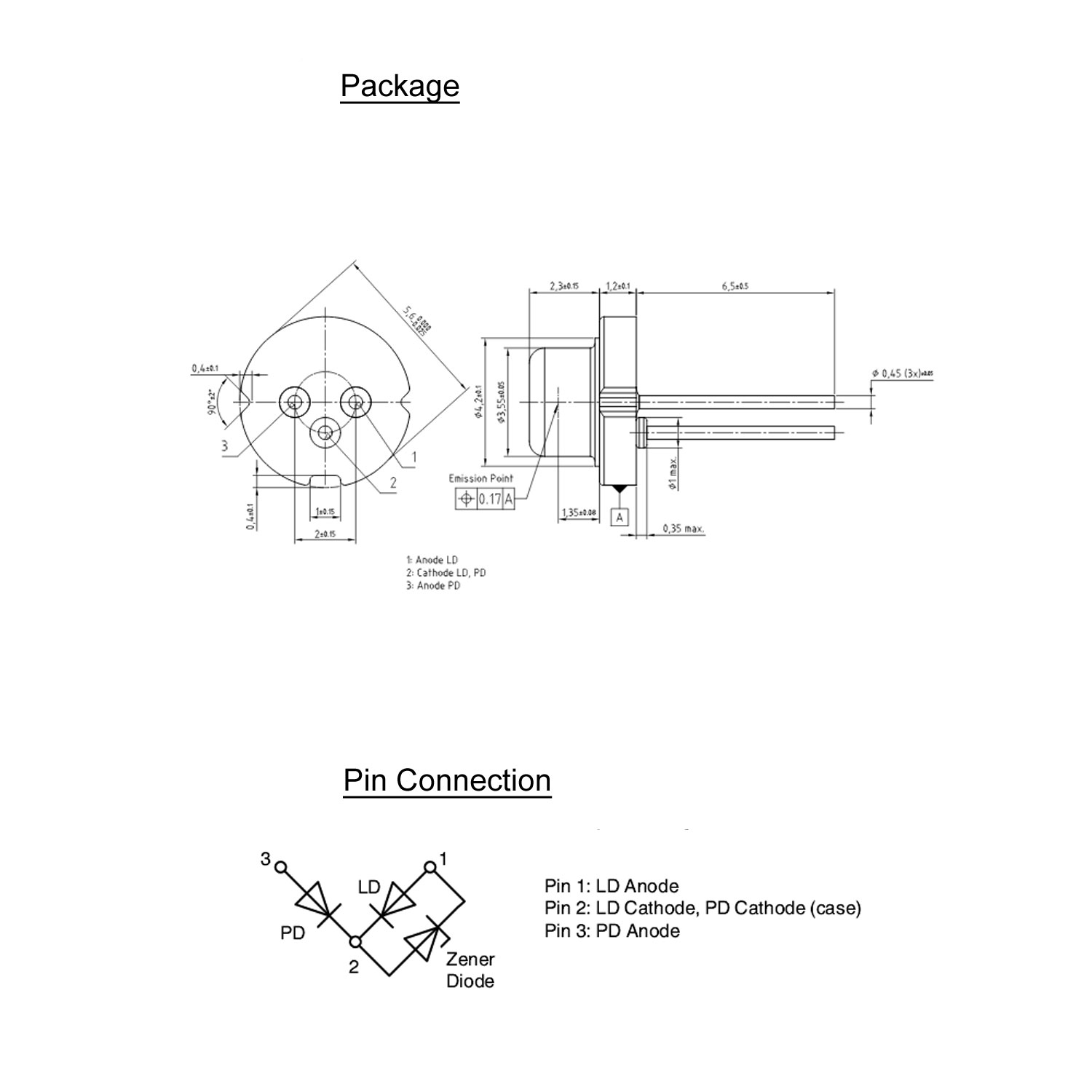

Package: TO56 (RoHS compliant)
Efficient radiation source for CW and pulsed operation
Applications
Instrumentation
Biomedical Applications
Holography
Metrology
Driver ICs
This diode is best driven using the following IC Haus driver:
Downloads
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
60
|
mW
|
|
Reverse
Current |
IR
|
20
|
mA
|
|
Operating
Current |
IF
|
150
|
mA
|
|
Operating
Temperature |
Topr
|
-20 to +60
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
|
Soldering
Temperature |
Tsolder
|
+260
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
85
|
100
|
mA
|
CW
|
|
Operating
Voltage |
VF
|
–
|
+6.0
|
+7.5
|
V
|
–
|
|
Spectral
Width (FWHM) |
Δλ
|
–
|
2
|
–
|
nm
|
Pop=60mW
|
|
Beam
Divergence |
Θ// x Θ⊥
|
4×16
|
6×23
|
8×26
|
deg
|
Pop=60mW
|
|
Peak
Wavelength |
λp
|
486
|
488
|
490
|
nm
|
Pop=60mW
|
|
Polarisation
|
Pgr
|
–
|
100:1
|
–
|
Pop=60mW
|
|
|
Threshold
Current |
Ith
|
–
|
25
|
40
|
mA
|
Pop=60mW
|
Additional information
| Power (CW) | 60mW |
|---|---|
| Operating Current | 150 |
| Operating Voltage | 6.0 Typ. 8.0 Max. |
| Power Output | 60mW |
| Colour | Blue (445 – 488nm) |
| Package Type | TO-56 |
| Wavelength | 488nm |
| PIN Type | M or B (inc. PD) |
| Driver IC | iC-HB, iC-HK, iC-HT, iC-NZ, iC-NZN, iC-WKM |
