PPC-1208F
Description

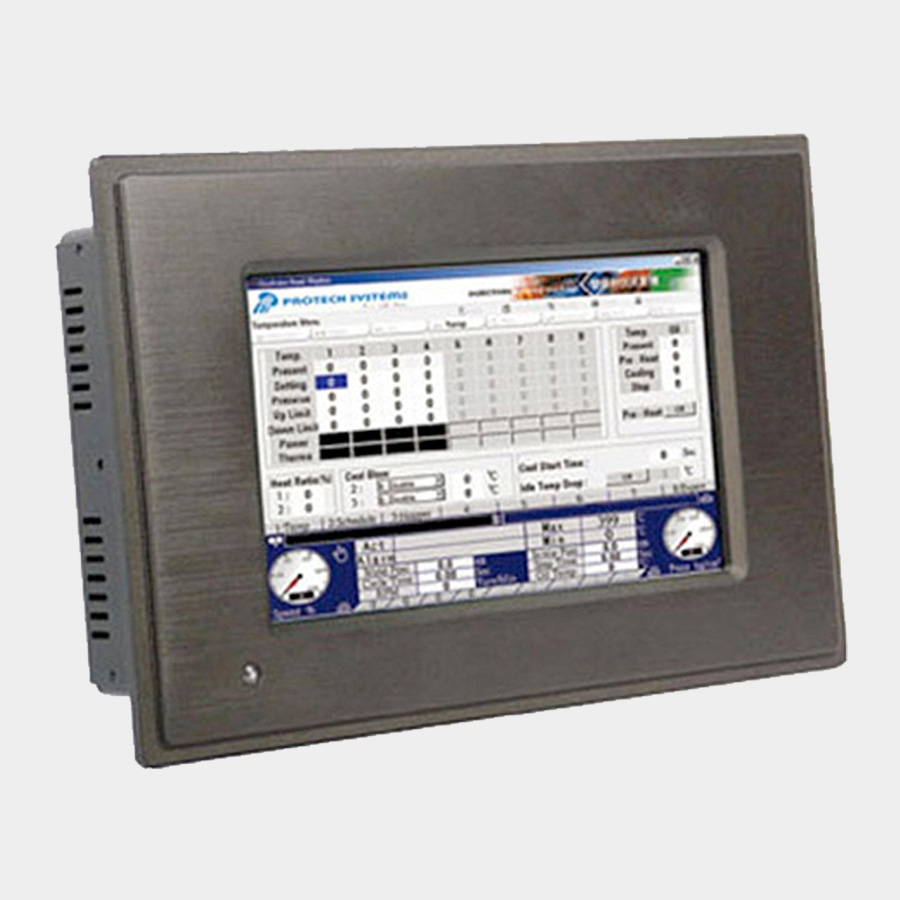

The PPC-1208F is a fanless and low power panel mount panel PC based on the embedded Freescale ARM Cortex A8 CPU and is designed to be lowered into the front of a cabinet. The built-in 7″ LCD panel provides 800 x 480 (WVGA) resolution, and the resistive touch sensor provides precise control.
The Digital I/O ports are among the many I/O ports available on this panel PC.
Features
7″ Fanless and Low Power Panel PC
Freescale ARM Cortex A8 CPU
1x 10/100Mbps LAN
Support DC 12V power supply
4 wire resistive touch screen
Support up to 512MB of RAM
Optional 75mm VESA mount
Aluminium front bezel
Suitable for:
Factory Control
Industrial Automation
Downloads:
Description
|
CPU Type
|
Freescale ARM Cortex A8 CPU (800MHz)
|
|
Memory Support
|
DDR-II DIMM (up to 512MB)
|
|
Front Bezel
|
Aluminium
|
|
IP65/NEMA
|
Yes
|
|
Power Supply
|
DC 12V or AC 100-240V with power adapter
|
|
O/S Support
|
Win CE6.0, Android 2.3 and Linux 2.6.35
|
|
Dimension
|
235 x 150 x 41.5mm (9.25in x 5.9in x 1.6in)
|
|
Basic System Weight
|
2kg (4.54lb)
|
|
VESA support
|
75mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
Built-in storage
|
|
Additional Storage
|
1 x micro-SD slot
|
|
Serial Ports
|
2 x 9-pin*, COM2 for RS232/422/485
|
|
USB
|
2 x USB 2.0
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
1 x 10/100Mbps
|
|
Audio
|
Line-out
|
|
Expansion
|
N/A
|
|
Digital I/O
|
3-in, 3-out
|
|
Brightness Control
|
n/a
|
|
LCD
|
7″ WVGA TFT LCD
|
|
Touch Screen
|
4 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: 0 to 55°C, Storage: -20 to 80°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Core | ARM Cortex A8 |
|---|---|
| Expansion | Micro SD |
| Fanless | Yes |
| Mount Type | Panel Mount, VESA Mount |
| Operating System (OS) | Windows CE 6.0 |
| Operating Temperature | 0°C to 50°C |
| Screen Size | 7" |
| IP Rating | IP65 Front Side (Only) |
