PPC-2226T-RSS-IP
Description

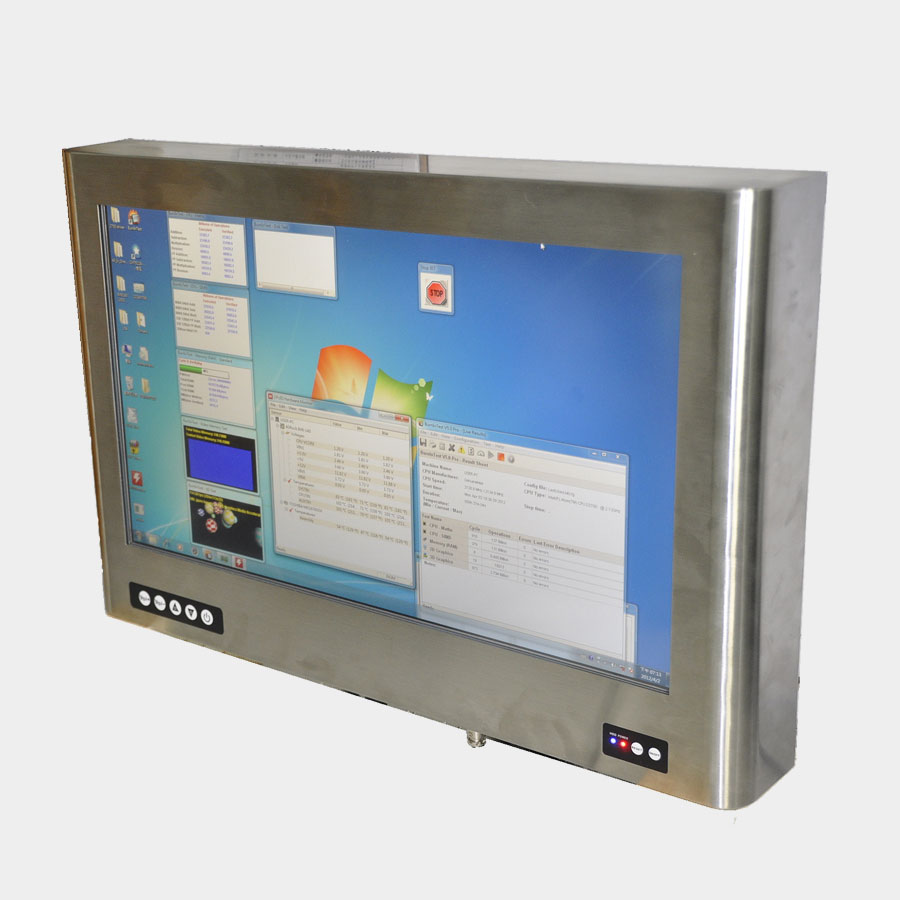

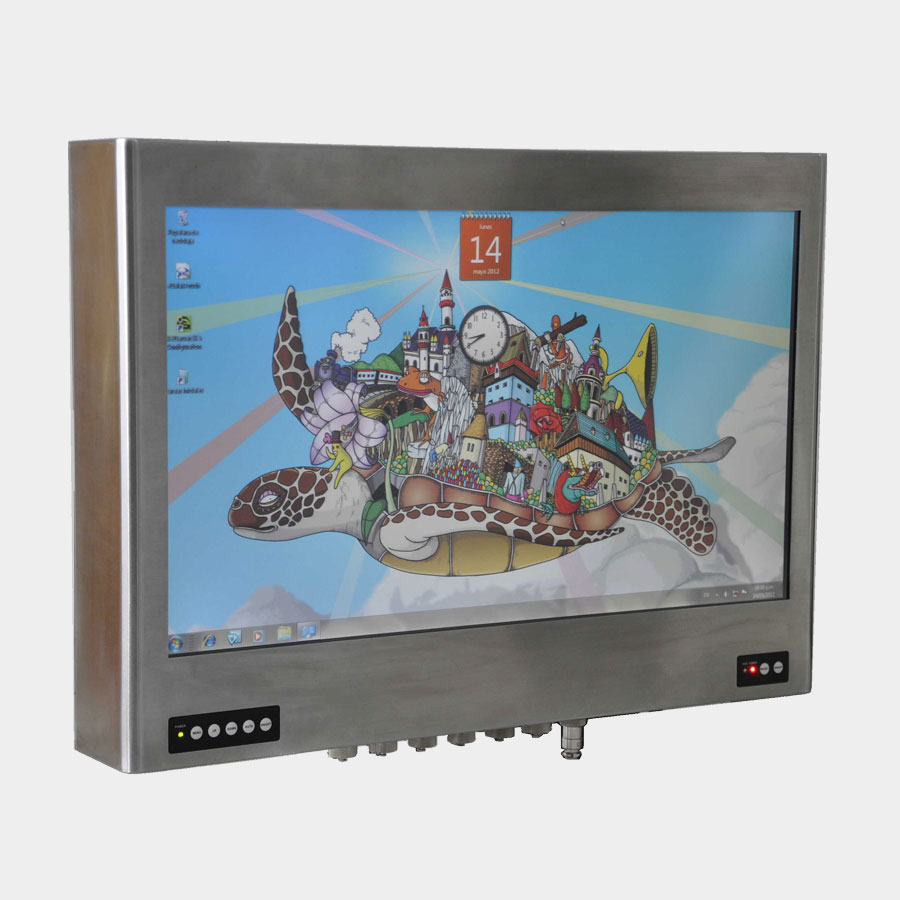

The PPC-2226T-RSS-IP is a completely sealed waterproof panel PC that can still provide great performance due to the Intel Atom N2600 CPU and is designed to be VESA mounted. The 5-wire resistive touch sensor provides precise control.
The Gigabit LAN and up to 6 x COM ports are among the many I/O ports available on this panel PC all sealed to IP65 rating, so the PPC-2226T-RSS-IP is perfect for food and chemical industries, or any harsh environments.
Features
21.5″ Fully Waterproof Panel PC
Support Intel Atom N2600 (1.6GHz)
Gigabit LAN
Support DC power supply
Sealed resistive touch screen
Support up to 4GB of RAM
Totally 6 sided IP65 rated
Stainless steel chassis
Suitable for:
Food Processing Plant, Abattoir
Submarines, Military Ships
Description
|
CPU Type
|
Intel Atom N2600 (1.6GHz)
|
|
Memory Support
|
1pcs x DDR-3 SO-DIMM socket (up to 4GB)
|
|
Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 6-side
|
|
Power Supply
|
DC 12~36V direct, or External AC 90~264V PSU
|
|
O/S Support
|
Win 7 or 7e
|
|
Dimension
|
570 x 375 x 88mm
|
|
Basic System Weight
|
14kg
|
|
VESA support
|
75mm / 100mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC / IEC-60945 / MIL-STD-810F
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD (160GB), 1 x CF Type II (optional)
|
|
USB
|
4 x USB 2.0 (x6 if without full IP65 rating)
|
|
Serial Ports
|
2 x 9-pin (x6 if without full IP65 rating)
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
1 x 10/100/1000Mbps
|
LCD / Touch
|
LCD
|
21.5″ FullHD TFT LCD
|
|
Brightness
|
350cd/m2 (Optional 1000cd/m2)
|
|
Touch Screen
|
Option: 5 wire analogue resistive (USB interface)
|
|
Options
|
Optical Bonding, Transflective LCD, Heater Module
|
Environment
|
Temperature
|
Operating: 0 to 50°C, Storage: -30 to 70°C
|
|
Optional Heater
|
Built-in heater allows operation at -30°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Screen Size | 21.5" |
|---|---|
| Operating Temperature | 0°C to 50°C |
| Mount Type | VESA Mount |
| Operating System (OS) | Windows 7, Windows 7 e |
| Core | Intel, Intel Atom |
| IP Rating | Fully IP65 |
