PPC-32G6T-AL-i3
Description

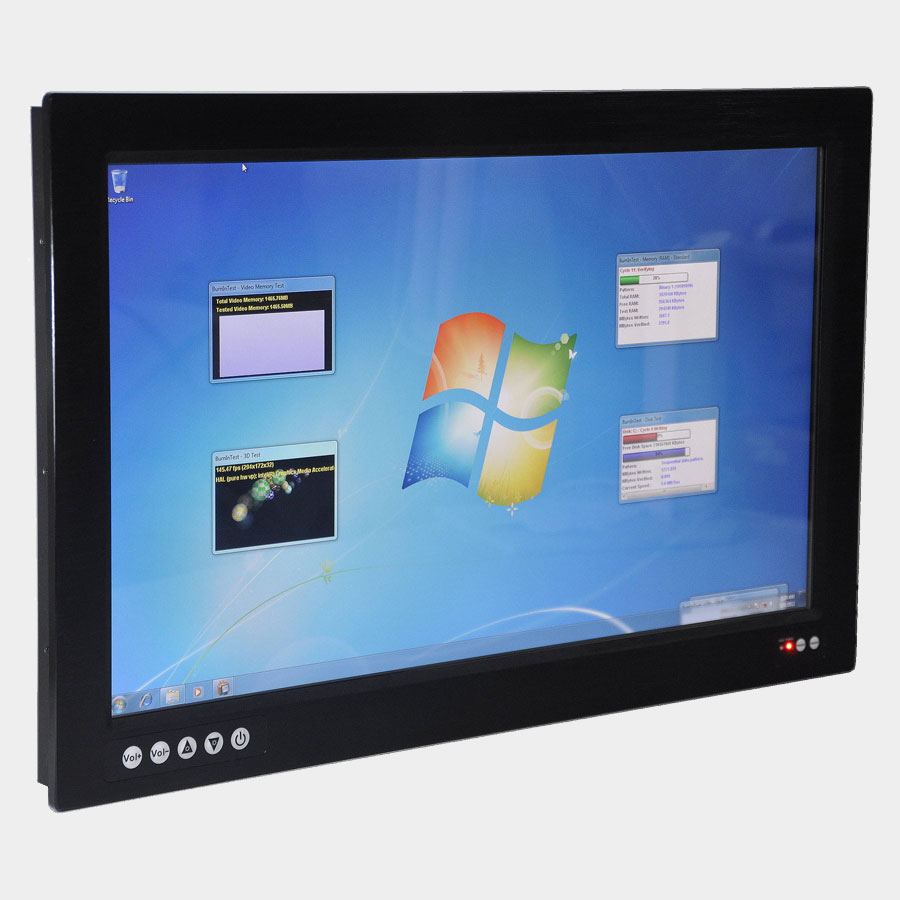

The PPC-32G6T-AL-i3 is a 32″ Full HD widescreen panel PC that can provide great performance due to the Intel Core i3-6100U CPU. The chassis is made from anti-corrosion galvanised steel and aluminium.
The Dual Gigabit LAN and 6 USB2.0 ports are among the many I/O ports available on this panel PC and power options are available for AC and DC supplies.
Features
32″ Slimline Panel PC
Support Intel Core i3-6100U (2.3GHz)
Dual Gigabit LAN
Support DC 12V, 9-32V or 90-264V AC Power
Vandal Proof Glass Option
Projected Capacitive Touch Option
Support up to 16GB of RAM
Optional Digital I/O Port
IP65 Rated Front Side
Suitable for:
Factory Control
Military Devices
Description
|
CPU Type
|
Intel Core i3-6100U (2.3GHz)
|
|
Memory Support
|
2pcs x DDR-3 SODIMM socket (up to 16GB)
|
|
Chassis
|
Anti-corrosion Galvanised Steel Chassis and Aluminium Bezel
|
|
Ruggedness Certification
|
Front side IP65, Other sides (except I/O) IP54
|
|
Power Supply
|
DC 12V, DC 9~32V or AC 90~264V
|
|
O/S Support
|
Windows 7 / 7e / 8 / 8e
|
|
Mounting Method
|
VESA-75 or Panel Mount
|
|
Dimension
|
TBD
|
|
Conformity Certification
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
2 x 2.5″ HDD/SSD
|
|
USB
|
4 x USB 3.0
|
|
Serial Ports
|
Optional
|
|
LAN
|
2 x Gigabit
|
|
Digital I/O
|
Optional 4in/4out
|
|
Analogue Video
|
15-pin VGA for Secondary Display
|
|
Digital Video
|
HDMI + Display Port
|
|
Brightness Control
|
Optional front panel controls
|
LCD
|
LCD Size
|
232″
|
|
LCD Resolution
|
1920 x 1080
|
|
Touch Screen
|
Optional Multi-Point Projected Capacitive
|
Environment
|
Temperature
|
Operating: 0 to 50°C, Storage: -20 to 80°C
|
|
Humidity
|
5 to 95%
|
Additional information
| Screen Size | 32" |
|---|---|
| Core | Intel Core i3 |
| Operating System (OS) | Windows 7, Windows 7 e, Windows 8, Windows 8 e, Windows 8.1 |
| Mount Type | Panel Mount |
| IP Rating | IP65 Front Side (Only) |
