QL63D5Sx
Click to enlarge

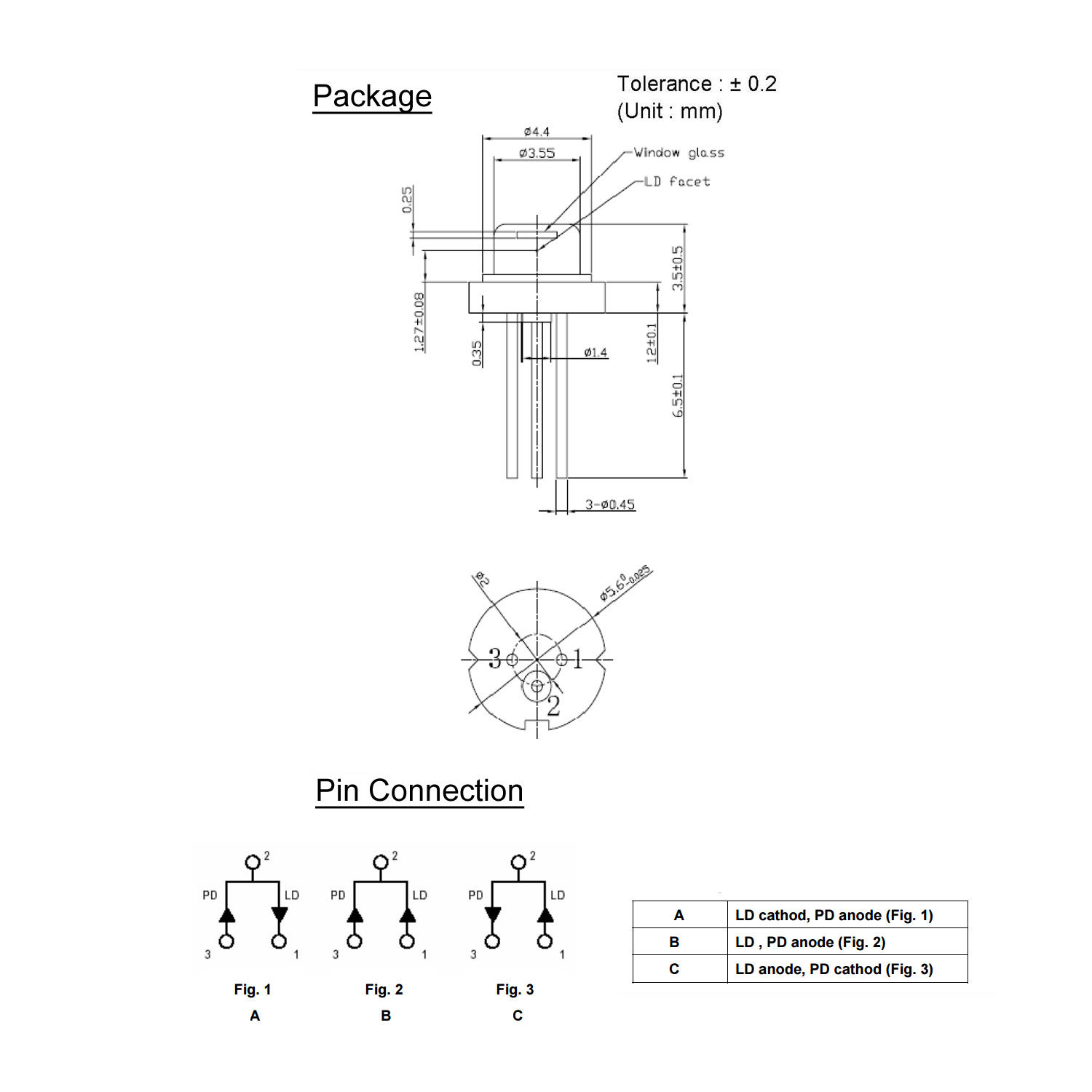

QL63D5Sx QL63D5Sx pin

635nm, 5mW Red Laser Diode (QSI)

QL63D5Sx

Feature

QSI Red Laser Diode
Wavelength: 635nm (typ.)
Output Power: 5mW
Package: TO18 (RoHS compliant)
Built-in Monitor Photodiode

Applications

Industrial Laser Markers
Industrial Measuring
Laser Pointer

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-WK/L
iC-NZN
iC-NZP
iC-HK
iC-HB

Pin options

This diode is available in the following pin types:
QL63D5SA – N-type
QL63D5SB – M-type
QL63D5SC – P-type
SKU: 635nm, 5mW Red Laser Diode (QSI) Category: Tags: , , , , ,

Product Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power
Po
6
mW
Reverse
Voltage
VR
+2
V
Operating
Current
IF
35
mA
Operating
Temperature
Topr
-10 to +50
°C
Storage
Temperature
Tstg
-40 to +85
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
5
6
mW
–
Threshold
Current
Ith
–
18
25
mA
Po=5mW
Operating
Current
Iop
–
23
35
mA
Po=5mW
Differential
Efficiency
η
–
–
–
mW/mA
–
Operating
Voltage
Vop
–
2.3
2.5
V
Po=5mW
Peak
Wavelength
λp
630
635
640
nm
Po=5mW
Monitor
Current
Im
0.1
0.2
0.5
mA
Po=5mW
Beam *4
Divergence
Θ// / Θ⊥
6.0 / 25
8.0 / 30
12.0 / 35
deg
Po=5mW
Beam
Angle
ΔΘ// / ΔΘ⊥
-3.0 / -3.0
–
3.0 / 3.0
deg
Po=5mW

Additional Information

Colour

Red (635 – 685nm)
Wavelength

635nm
Power Output

5mW
Operating Voltage

2.3 Typ. 2.5 Max.
Operating Current

35
PIN Type

M or B (inc. PD), N or A (inc. PD), P or C (inc. PD)
Package Type

TO-18
Driver IC

iC-HB, iC-HK, iC-NZN, iC-NZP, iC-WK/L
