SA-5592
Description

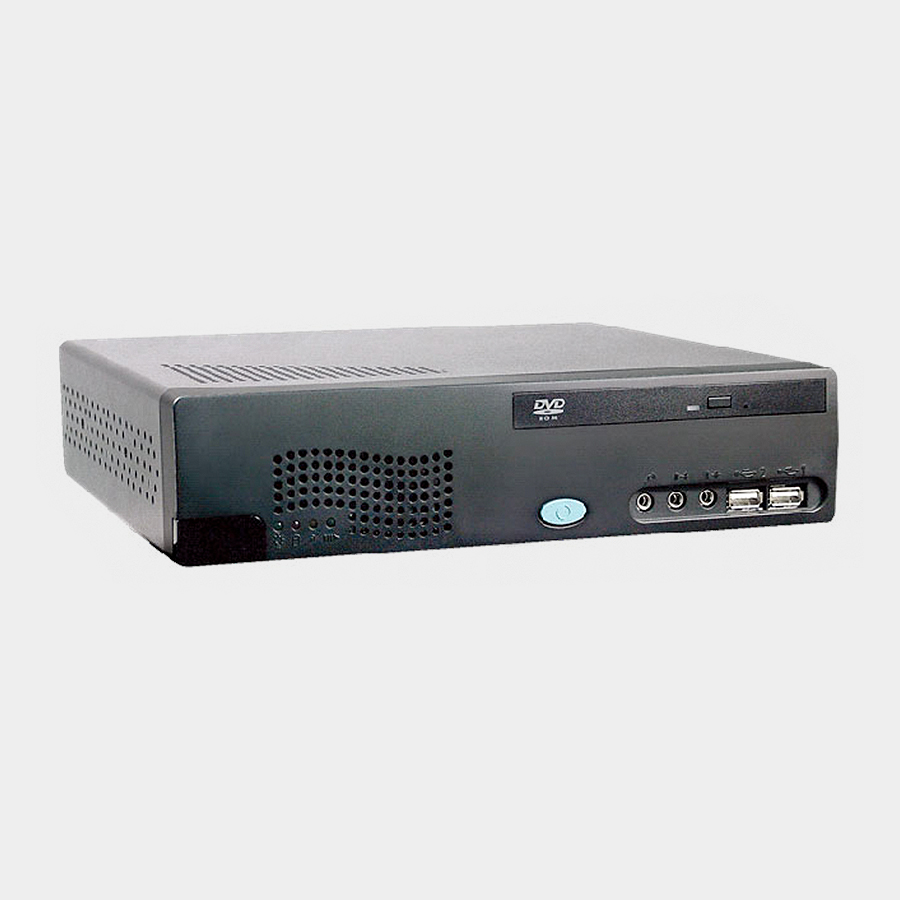

The SA-5592 is a high performance book size computer built for multi-processing due to the Intel Core i3/i5 CPU support.
The seven USB ports and four COM ports are among the many I/O ports available on this book size PC, and expansion is possible with 1 x PCI-e or 1 x PCI slots.
Features
Intel Core-i series Book-size PC
Support Core i3/i5 CPU (socket 988)
Support up to 4GB of RAM
Expansion slot (1 x PCI-e or 1 x PCI)
Gigabit LAN
DVI/VGA output
Support rackmount and wallmount solutions
Industry level of durability
Downloads:
Description
|
CPU Type
|
Intel Core i3/i5, socket 988 type
|
|
Chipset
|
Intel HM65 / QM67
|
|
Memory Support
|
2pcs x DDR-3 SODIMM socket (up to 4GB)
|
|
O/S Support
|
Windows 7 / XP / XPe
|
|
Power Supply
|
AC 100V to 240V input, ATX 110W output
|
|
Basic System Weight
|
3.3kg
|
|
Dimension
|
260 x 240 x 62 mm (10.24in x 9.45in x 2.44in)
|
|
Certificate
|
FCC / CE
|

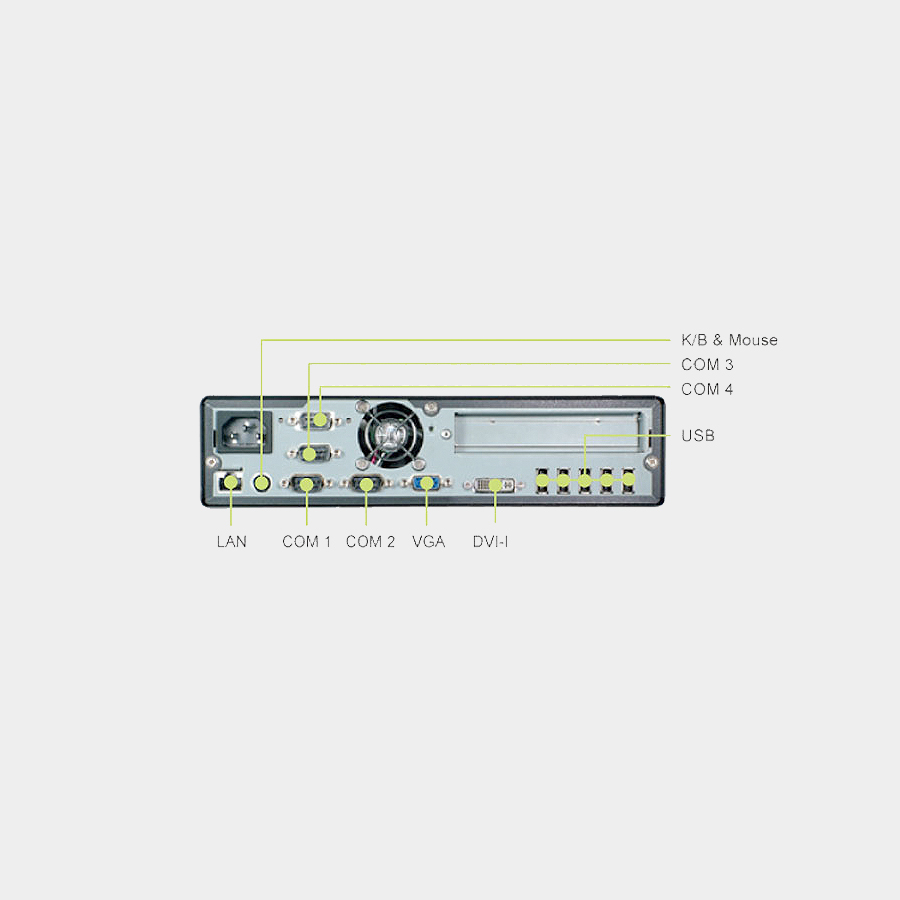

I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD + 1 x Slim CD
|
|
USB
|
2 x USB 2.0 (front) + 5 x USB 2.0 (rear)
|
|
Serial Ports
|
4 x 9-pin, COM2 for RS232/422/485
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
1 x PS/2 with Y-splitter
|
|
Video Outputs
|
1 x DVI-I + 1 x VGA
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Audio
|
Line-in/Line-out/Mic
|
|
Expansion
|
1 x PCI or 1 x PCI-e
|
Environment
|
Temperature
|
Operating: 0 to 40°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Core | Intel Core i3, Intel Core i5 |
|---|---|
| Expansion | PCI, PCI-e |
| Operating System (OS) | Windows 7, Windows XP |
