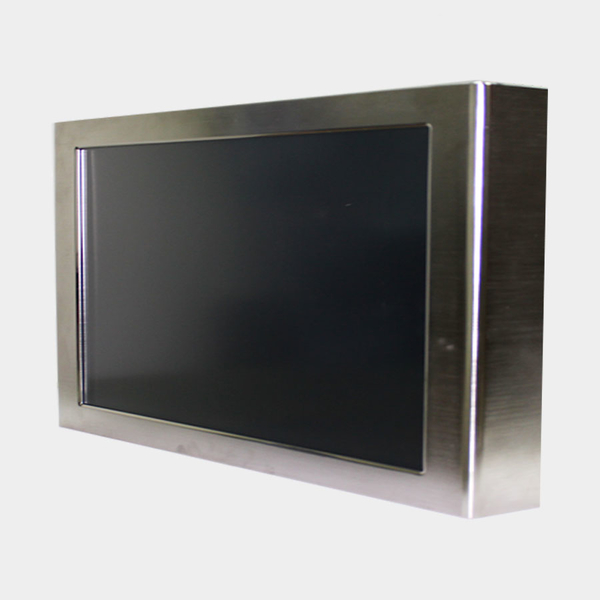

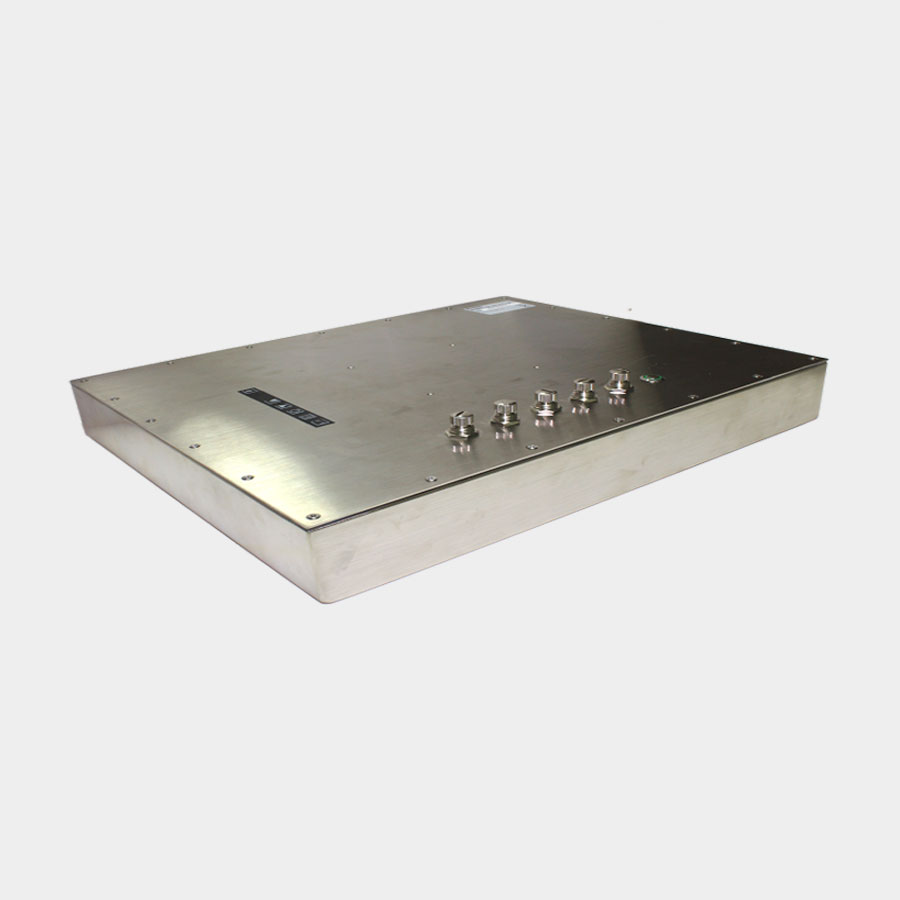

SA-ZJD24RF
Description
The SA-ZJD24RF is a 24″ fully IP65 rated waterproof LCD monitor designed for industrial automation and monitoring in harsh environments. The 24″ LCD panel provides 1920 x 1080 (FullHD) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
24″ IP65 Waterproof Monitor
1920 x 1080 Resolution
VGA input
VESA mount
Fully IP65 (NEMA4) rated
Optional optical bonding
Support DC 12V input
Stainless Steel Bezel
Suitable for:
Food Processing Plant, Abattoir
Submarines, Ships & Yachts
Downloads:
Description
|
Screen Size
|
24″, 1920 x 1080 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
TBD
|
|
Luminance
|
Typ. 250cd/m2 (Optional: 1000cd/m2)
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Contrast Ratio
|
5000:1
|
|
Mount Type
|
VESA arm mount
|
|
Power Input
|
External DC 12V (IP65 or standard type options)
|
|
Dimension
|
TBD
|
|
Weight
|
TBD
|
|
Chassis
|
Stainless Steel
|
I/O Ports
|
Analogue
|
VGA
|
Front Glass Options
|
Touch Sensor Type
|
5 wire resistive (USB or serial)
|
|
Other Options
|
Toughened glass, Optical Bonding
|
Environment
|
Operating Temperature
|
0 to 45°C
|
|
Storage Temperature
|
-10 to 70°C
|
Additional information
| Waterproof | Yes |
|---|---|
| Mount Type | VESA Arm Mount |
| Monitor Type | Waterproof/Outdoor |
| IP Rating | Fully IP65 |
| Brightness | 250cd/m² (Typ) |
| Operating Temperature | 0°C to 45°C |
| Inputs | VGA |
| Screen Size | 24" |
| Viewing Angle | 178° / 178° |
| Touch Type | Resistive |
