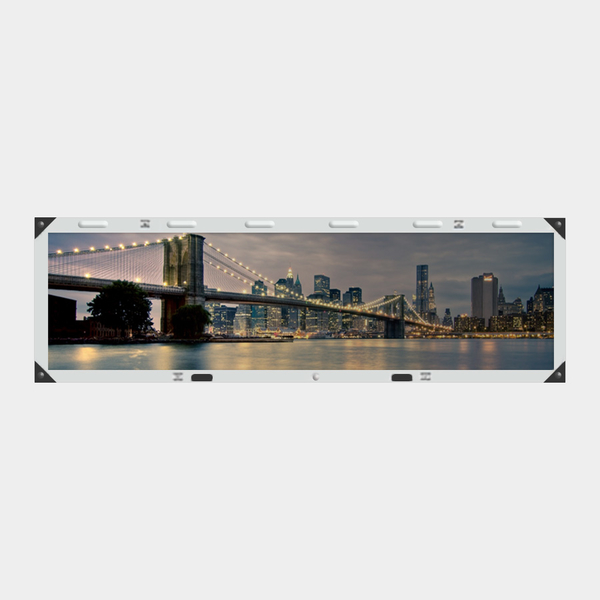

20" 1/2 Cut FullHD Bar LCD Monitor

SBL-P2022V2

Description

The SBL-P2022V2 is a 20″ ultra widescreen open frame bar LCD monitor designed for gaming scoreboards, as well as digital signage.
A 22″ panel is 1/2 cut to produce a 20″ LCD panel providing 1920 x 510 resolution. With the option of various input types, the monitor can be used in many situations.

Features

20″ (22″ 1/2 cut) Bar LCD Monitor
Native Resolution 1920×510 @60Hz
DVI and VGA input
Optional Audio board
Optional Thermal/Brightness Monitor
LED backlight
Open Frame Type
Custom metalwork is available.

Downloads:

Datasheet
SKU: 20" 1/2 Cut FullHD Bar LCD Monitor Category: Tags: , , , , ,

Product Description

Screen Size
20″ (From 22″ 1/2 cut), 1920 x 510 resolution
Display Colours
16.7M (6-bit + A-FRC)
Pixel Pitch
0.2475 x 0.2475 mm
Luminance
Typ. 500cd/m2
Backlight Lifetime
Typ. 50,000 hours
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
Edge LED
Contrast Ratio
Typ. 1000:1
Mount Type
Open frame mount and optional VESA arm mount
Power Input
DC 12V or 24V
Dimension
495 x 151 x 11mm (Panel depth only. Board kit will determine total depth)

I/O Ports

Digital
DVI-D
Analogue
15-pin VGA
Options
IR remote, thermal and brightness control & audio amp

Environment

Temperature
Operating: 0 to 50°C

Additional Information

Screen Size

20″
Monitor Type

Monitor – 6″ to 24″, Monitor – Ultrawide
Inputs

DVI, VGA
Mount Type

Open Frame, VESA Arm Mount
Brightness

500cd/m²
