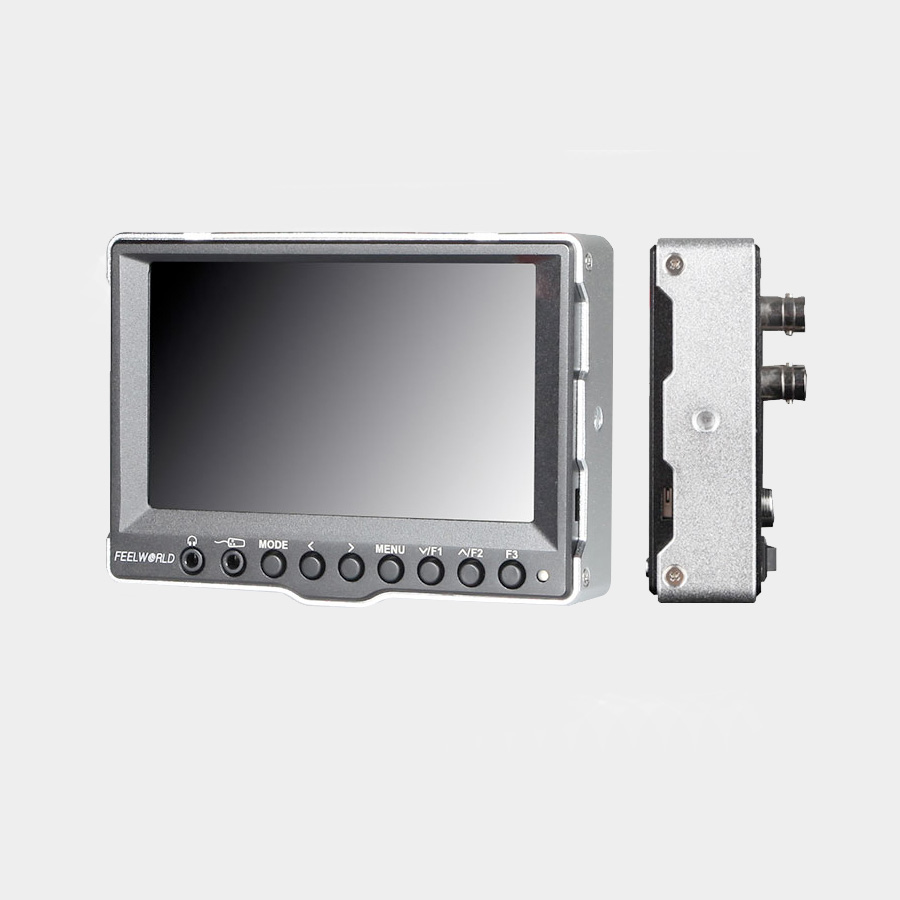

SBM-A5 sbm-a5-back sbm-a5-front sbm-a5-back2

5" Aluminum Case On-Camera Field Monitor

SBM-A5

Description

The SBM-A5 is a 5″ aluminium cased monitor designed for on-camera field use in TV and film production. The 5″ LCD panel provides 800 x 480 (WVGA) resolution.
With the option of a battery plate and HDMI/SDI inputs, the monitor is easily portable.

Features

5″ On-Camera Broadcast Monitor
800 x 480 Resolution
HDMI/SDI input
Threaded camera mount

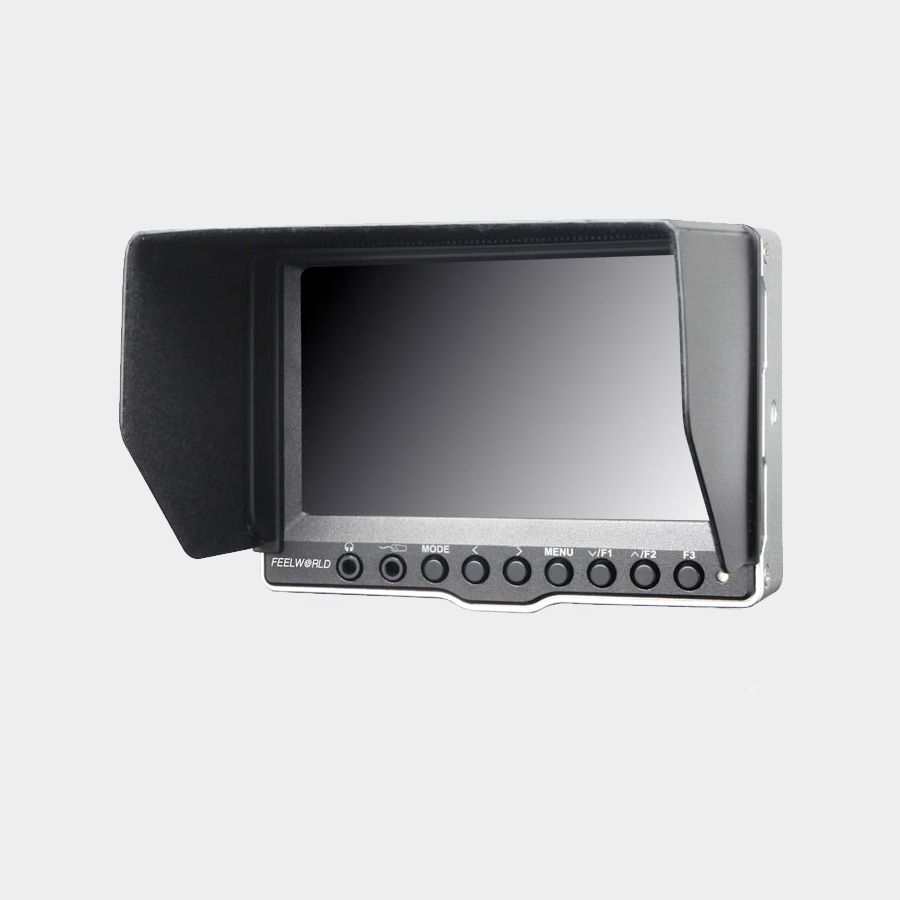

Optional sunshade

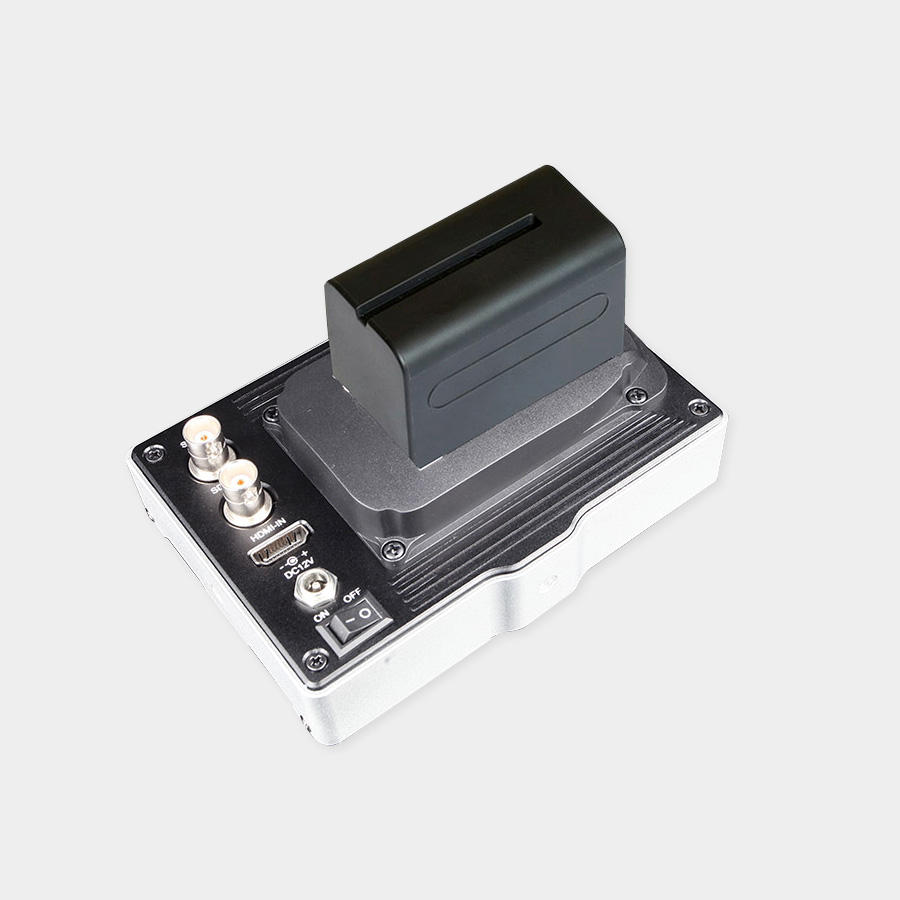

Optional battery plate
Support DC 7-18V input
Optional colour: black, silver

Suitable for:

Film and Video Production
BlackMagic Cinema Cameras

Downloads:

TBA
SKU: 5" Aluminum Case On-Camera Field Monitor Categories: , Tag:

Product Description

Screen Size
5″, 800 x 480 resolution
Luminance
Typ. 350cd/m2
Contrast Ratio
Typ. 500:1
Viewing Angle
Horizontal: Typ. 70°/70°, Vertical: Typ. 50°/70°
Mount Type
1/4″-20 Thread Socket mount
Power Input
DC 7-18V <10W
Dimension
134 x 97 x 28.5 mm
Weight
475g
Chassis
Front – Aluminium, Rear – Aluminium

I/O Ports

Video Inputs
HDMI and SDI
Video Outputs
SDI
Audio
Headphone jack

Format Support

HDMI
480i/p
576i/p
720p(60/59.94/50/30/29/25/24/23.98）
1080i(60/59.94/50）
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
SDI
480i
576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)/
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

Environment

Temperature
Operating: -20 to 55°C, Storage: -30 to 65°C

Additional Information

Mount Type

Camera Bracket
Screen Size

5″
Operating Temperature

-20°C to 55°C
Brightness

350cd/m² (Typ.)
Viewing Angle

50° / 70°, 70° / 70°
Inputs

HDMI, SD Video
Monitor Type

Video Broadcast
