SBM-A7
Description
The SBM-A7 is a 7″ Aluminium cased monitor designed for on-camera field use in TV and film production. The 7″ LCD panel provides 1280 x 800 (WXGA) resolution.
With the option of a battery plate and Component/HDMI/3D-SDI inputs, the monitor is easily portable.
Features
7″ On-Camera Broadcast Monitor
1280 x 800 Resolution
Component/HDMI/3D-SDI input/output
Threaded camera mount

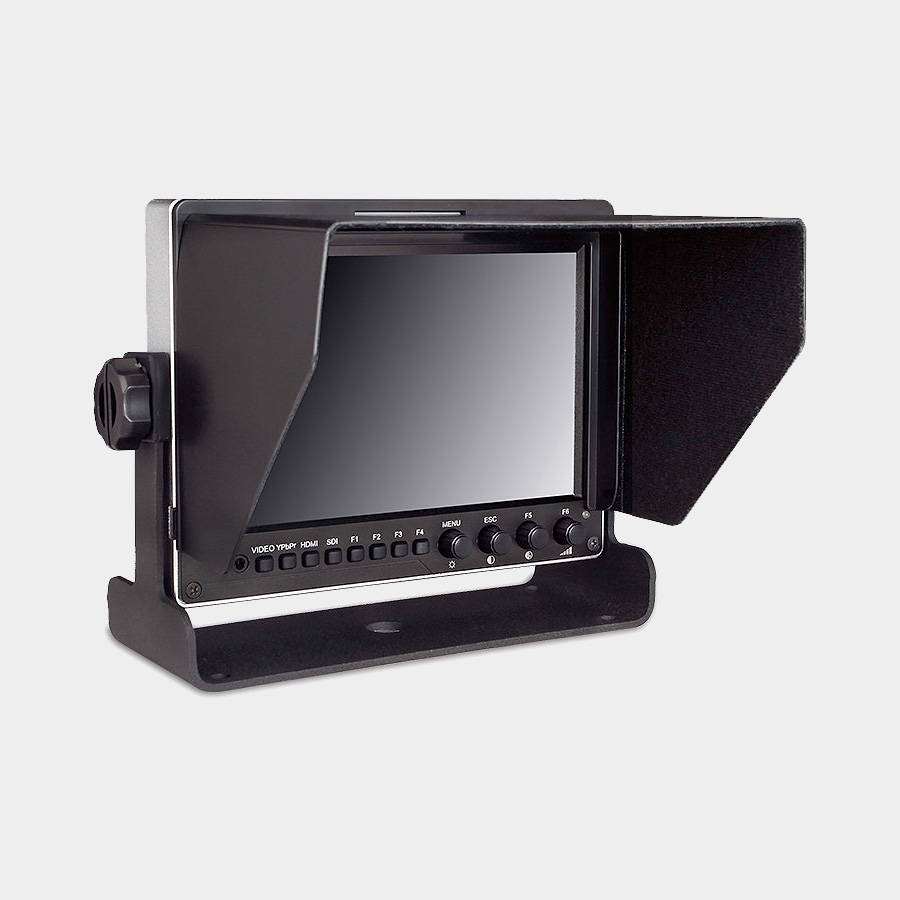

Optional sunshade
Optional battery plate
Support DC 7-18V input
Waveform and Vectorform functions

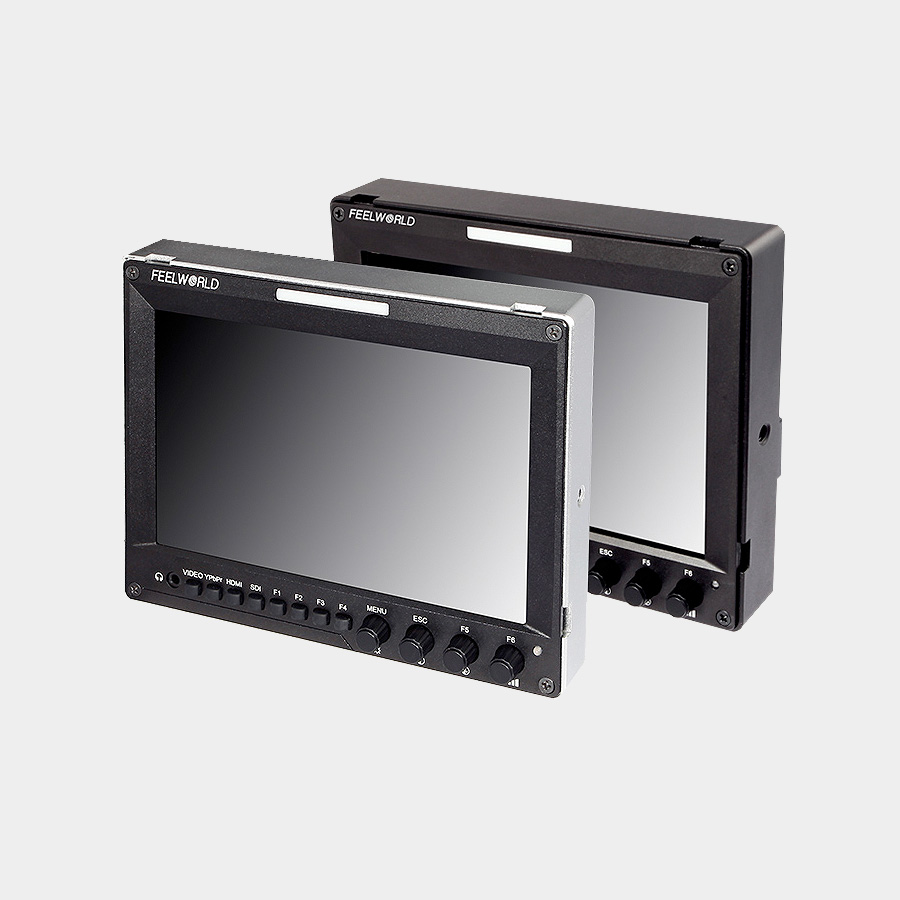

Optional Colour: Black, Silver
Suitable for:
Film and Video Production
BlackMagic Cinema Cameras
Downloads:
TBA
Description
|
Screen Size
|
7″, 1280 x 800 resolution
|
|
Luminance
|
Typ. 400cd/m2
|
|
Contrast Ratio
|
Typ. 800:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Mount Type
|
1/4″-20 Thread Socket mount
|
|
Power Input
|
DC 7-18V <12W (DC12V / 4-pin XLR Connector)
|
|
Dimension
|
180 x 140 x 26.5 mm
|
|
Weight
|
770g
|
|
Chassis
|
Aluminium
|

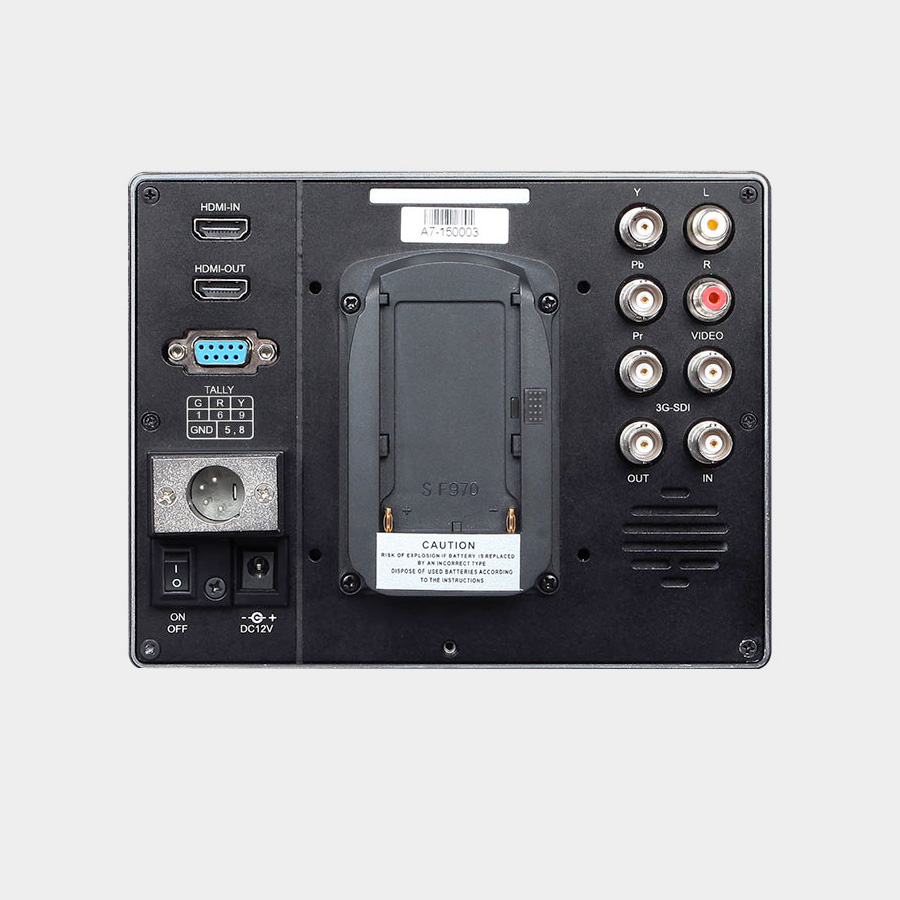

I/O Ports
|
Video Inputs
|
SD Video, Component, HDMI and 3D-SDI
|
|
Video Outputs
|
HDMI and 3D-SDI
|
|
Audio
|
Headphone Output, L/R Phono jacks input + Built-in Speakers
|
Format Support
|
HDMI
|
480i/p
576i/p 720p(60/59.94/50/30/29/25/24/23.98） 1080i(60/59.94/50） 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
|
HDMI and 3D-SDI
|
480i
576i 720p(60/59.94/50/30/29/25/24/23.98) 1080i(60/59.94/50)/ 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
Functions
|
Waveform
|
RGB, Y/Cb/Cr
|
|
Vector Scope
|
Yes
|
|
Colour Histogram
|
Yes
|
|
Histogram
|
Yes
|
|
Focus Assist
|
Red, Green, Blue, 3 colour optional highlight over parts of the image in focus
|
|
Embedded Auido Meter
|
Yes
|
|
False Colour
|
Yes
|
|
Zebra Exposure
|
Yes
|
|
Camera Mode
|
Yes
|
|
Pixel to Pixel
|
Yes
|
|
Center Marker
|
Yes
|
|
Safe Marker
|
80%, 85%, 90%, 93%, 96%
|
|
Ratio Marker
|
4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1
|
|
Marker Colour
|
Red, Green, Blue, White, Gray, Black
|
|
Image Flip
|
Horizontal, Vertical, Hor & Ver
|
|
Image Freeze
|
Yes
|
|
Check Field
|
Gray, Red, Green, Blue
|
|
Tally
|
Red, Green, Yellow
|
Environment
|
Temperature
|
Operating: -20 to 55°C, Storage: -30 to 65°C
|
Additional information
| Mount Type | Camera Bracket |
|---|---|
| Screen Size | 7" |
| Operating Temperature | -20°C to 55°C |
| Brightness | 400cd/m² |
| Inputs | 3D-SDI, HDMI, SD Video |
| Viewing Angle | 89° / 89° |
| Monitor Type | Video Broadcast |
