SBM-FW7D-JC/O
Description

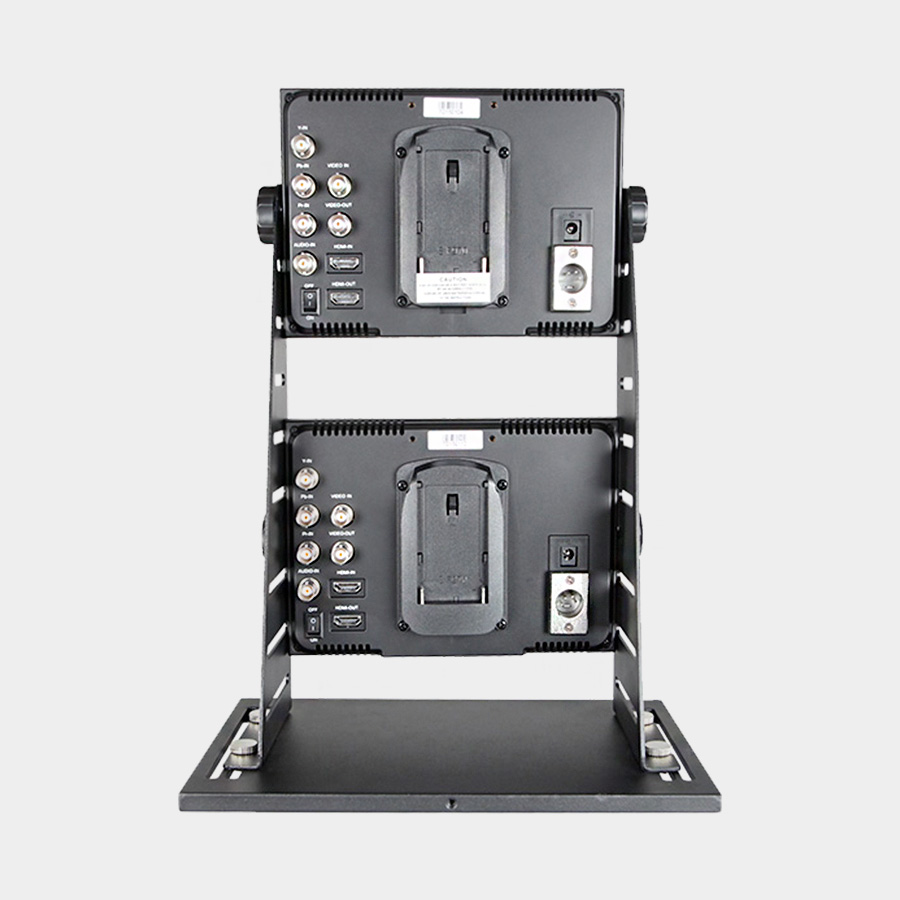

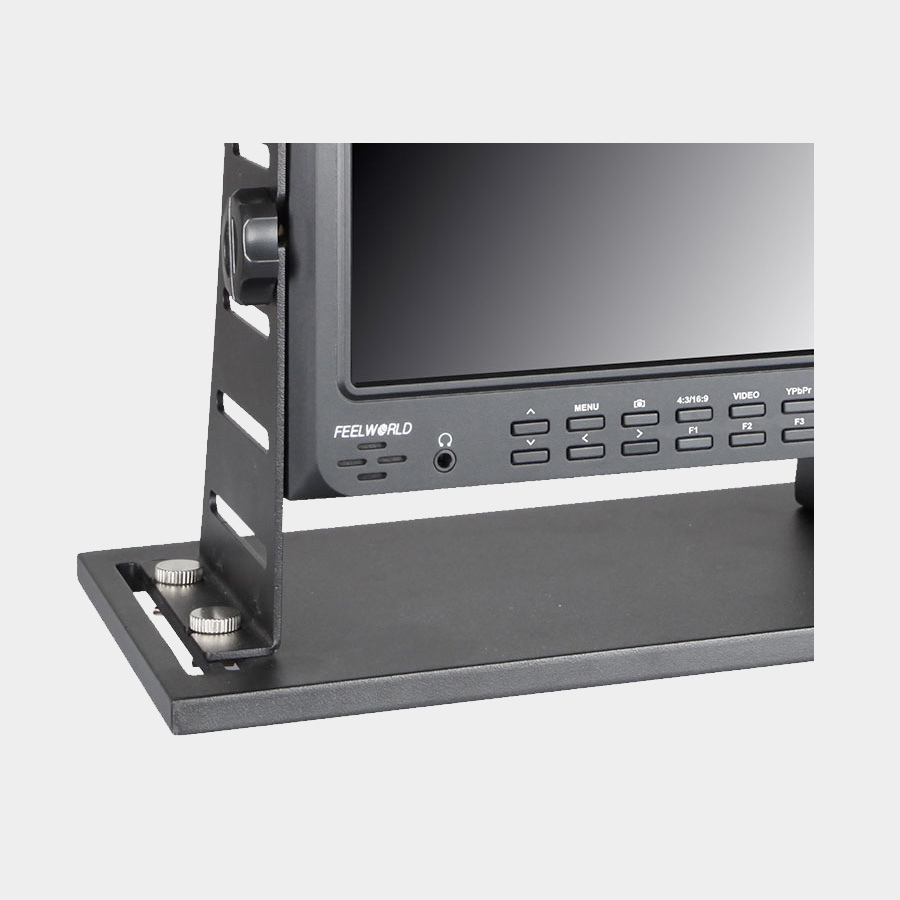

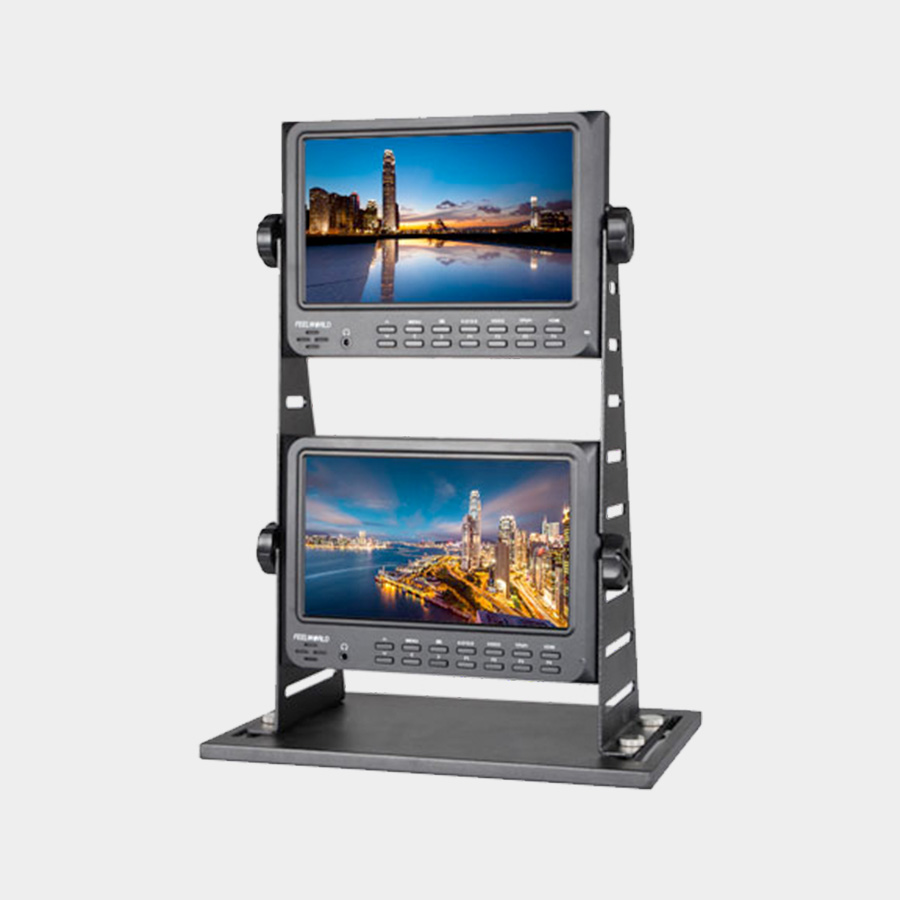

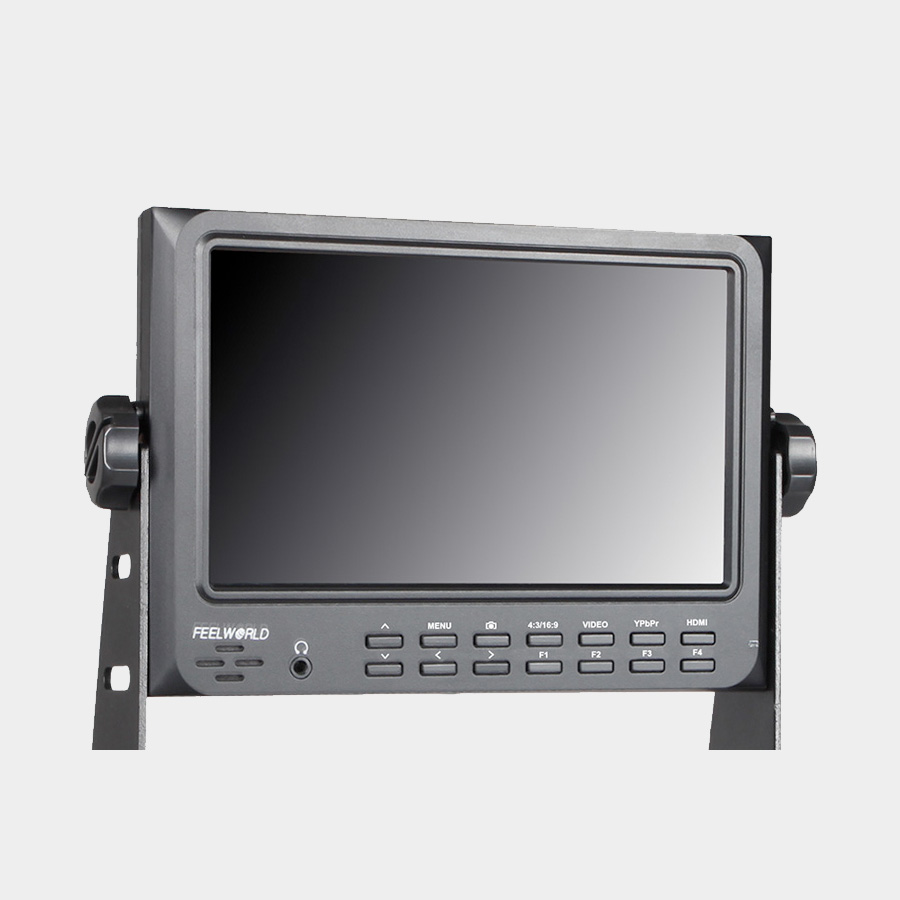

The SBM-FW7D-JC/O is a dual 7″ monitor system designed for jib/crane use in TV and film production. The 7″ LCD panels provide 1024 x 600 (WSVGA) resolution.
With the option of a battery plate and Component/HDMI inputs, the monitor is easily portable.
Features
Dual 7″ Jib/Crane Broadcast Monitor
1024 x 600 Resolution
Component/HDMI/Video input/output
Threaded camera mount

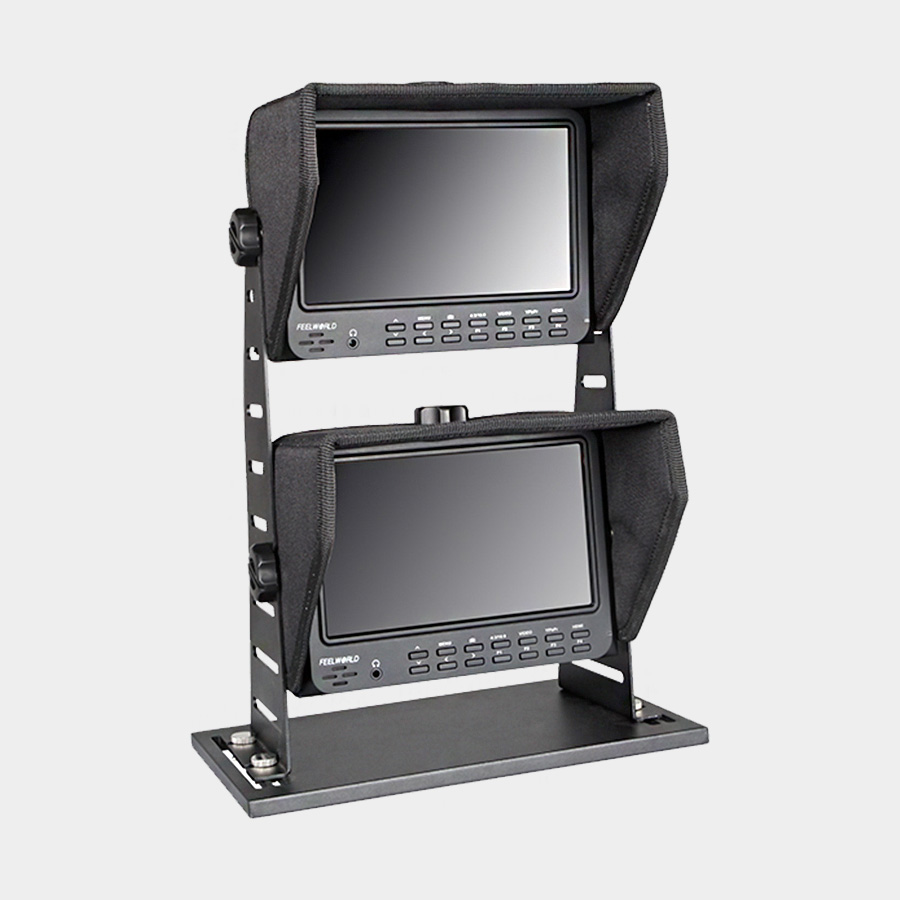

Optional sunshade
Optional battery plate
Support DC 7-12V input
Tally indicator
Suitable for:
Film and Video Production
Downloads:
TBA
Description
|
Screen Size
|
Dual 7″, 1024 x 600 resolution
|
|
Luminance
|
Typ. TN panel: 450cd/m2, IPS panel: 600cd/m2
|
|
Contrast Ratio
|
Typ. TN panel: 700:1, IPS panel: 800:1
|
|
Viewing Angle
|
TN Hori. Typ. 75°/75°, Vert. Typ. 70°/75°, IPS Hori. Typ. 85°/85°, Vert. Typ. 85°/85°
|
|
Mount Type
|
Jib/Crane stand mount
|
|
Power Input
|
DC 7-18V <6W (Dual 4-pin XLR Connector)
|
|
Dimension
|
Unit without stand 188.4 x 134 x 34.2 mm
|
|
Weight
|
450g
|
|
Chassis
|
TBC
|

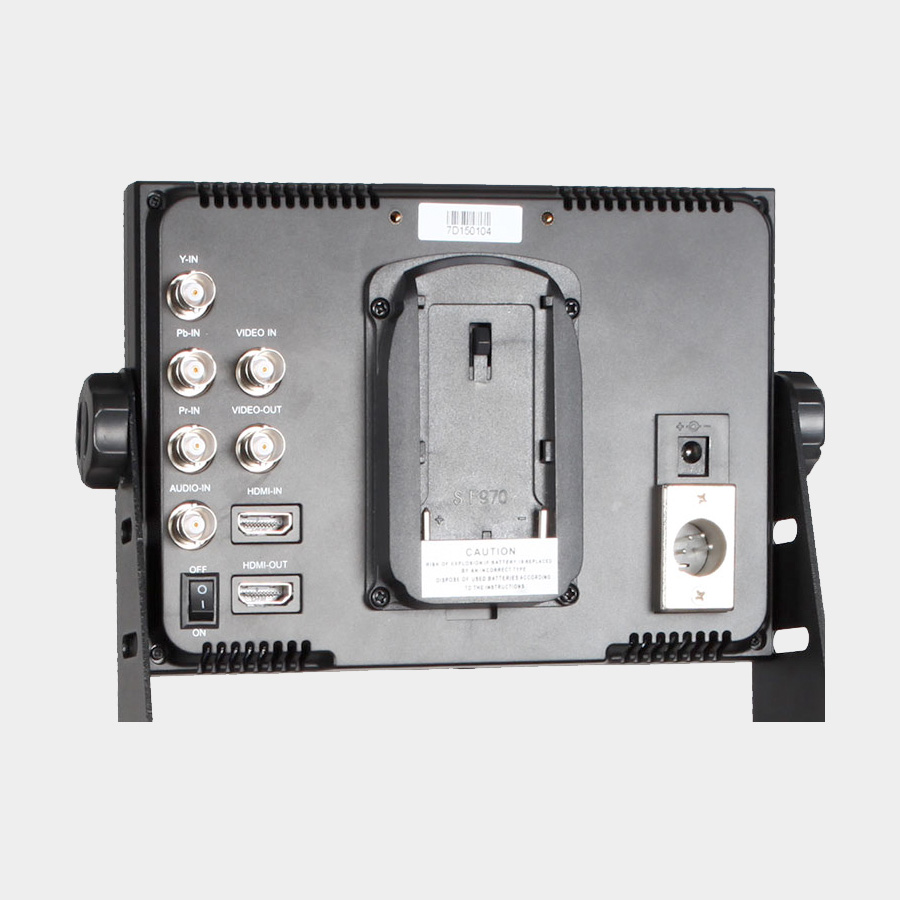

I/O Ports
|
Video Inputs
|
SD Video, Component, HDMI and Audio (-JC w/o HDMI)
|
|
Video Outputs
|
SD Video and HDMI
|
|
Audio
|
Headphone Output + Built-in Speakers
|
Format Support
|
HDMI
|
480i/p
576i/p 720p(60/59.94/50/30/29/25/24/23.98） 1080i(60/59.94/50） 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
Functions
|
Check Field
|
Mono, Red, Green, Blue
|
|
Camera Mode
|
Yes, 5D II
|
|
Center Marker
|
Yes
|
|
Safe Marker
|
80%, 85%, 90%, 93%, 96%
|
|
Image Adjustment
|
4:3, 16:9
|
|
Image Freeze
|
Yes
|
|
Image Flip
|
Yes
|
|
Pixel to Pixel
|
Yes
|
Environment
|
Temperature
|
Operating: -20 to 55°C, Storage: -30 to 65°C
|
Additional information
| Brightness | 450cd/m², 600cd/m² |
|---|---|
| Screen Size | 7" |
| Inputs | HDMI, SD Video |
| Mount Type | Camera Bracket |
| Viewing Angle | 70° / 75°, 75° / 75°, 85° / 85° |
| Operating Temperature | -20°C to 55°C |
| Monitor Type | Video Broadcast |
