SBM-P215-9HSD-CO
Description

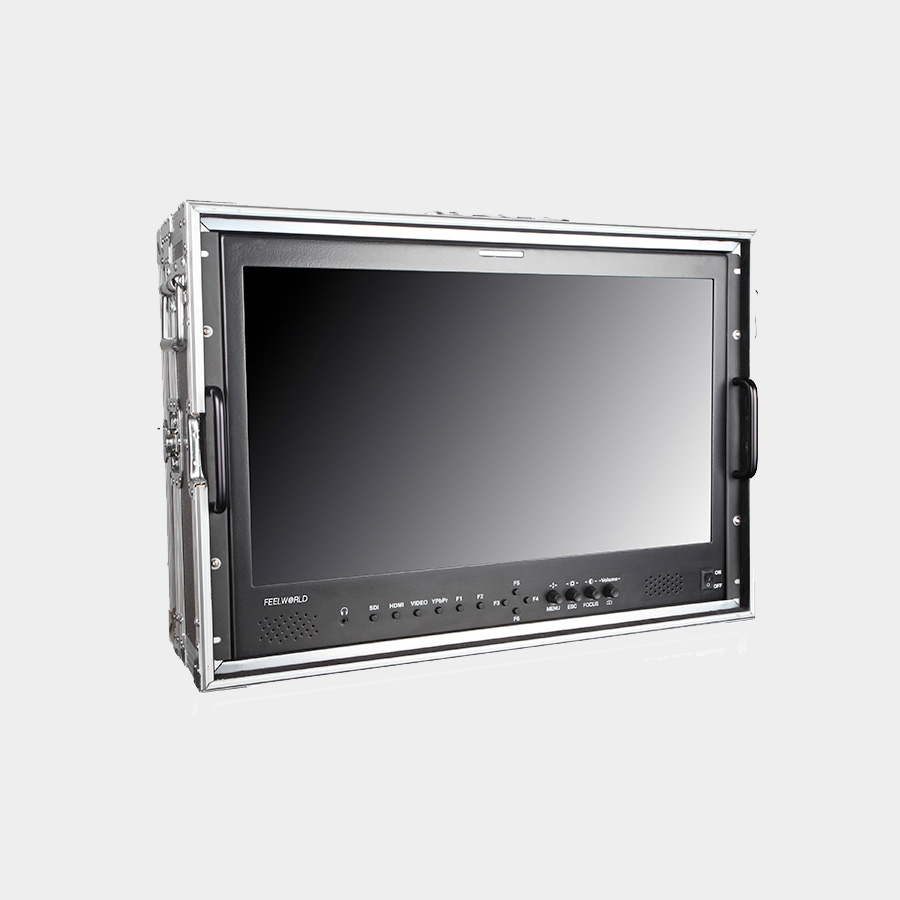

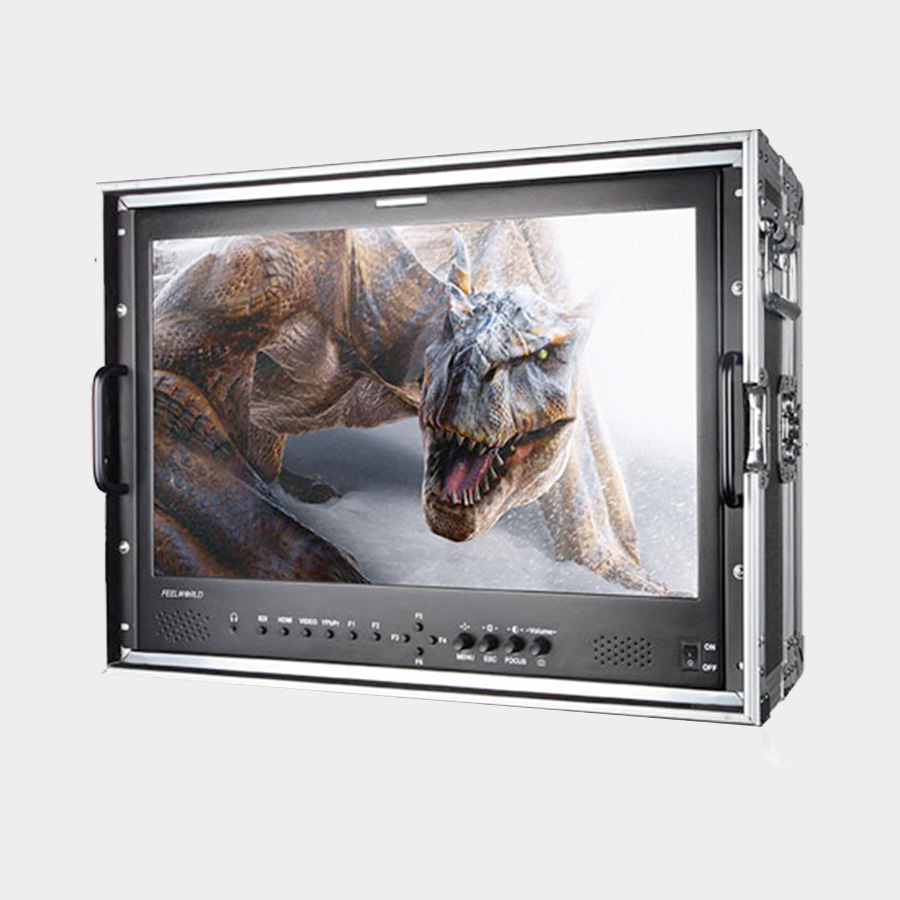

The SBM-P215-9HSD-CO is a 21.5″ Aluminium cased monitor designed for field use in TV and film production. The 21.5″ LCD panel provides 1920 x 1080 (FullHD) resolution.
With the option of a battery plate and Component/HDMI/3D-SDI inputs, and aluminium flight case, the monitor is easily portable.
Features
21.5″ Director Carry-on Broadcast Monitor
1920 x 1080 Resolution
Component/HDMI/3D-SDI input/output

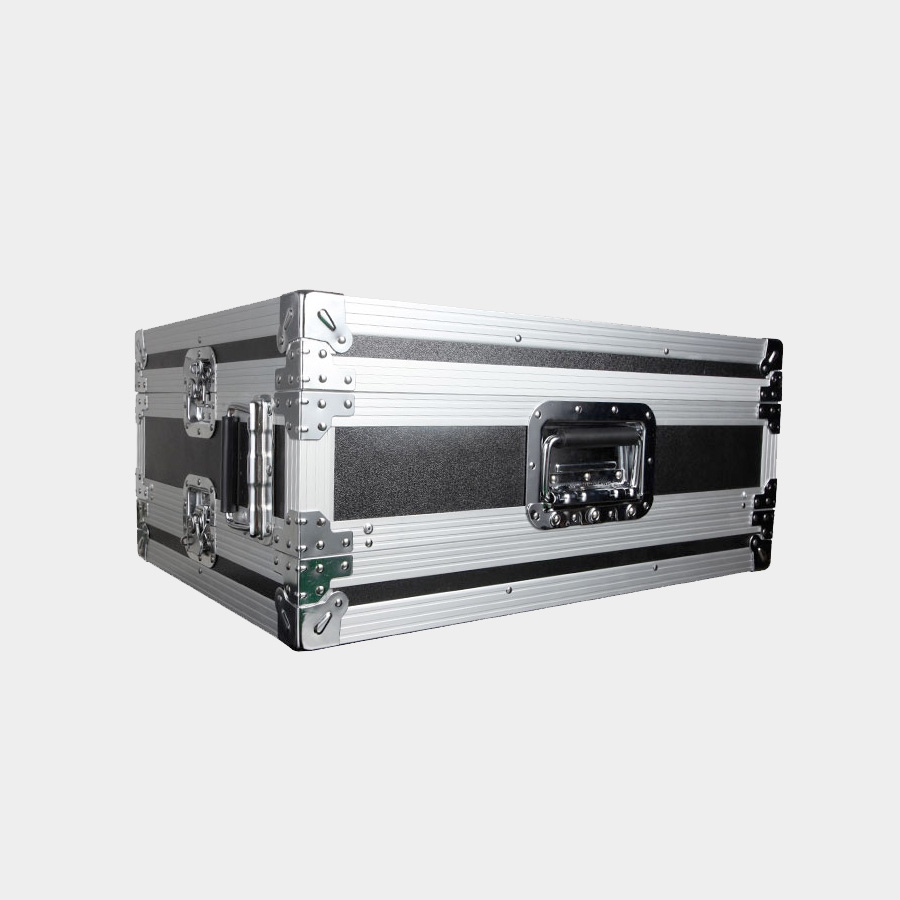

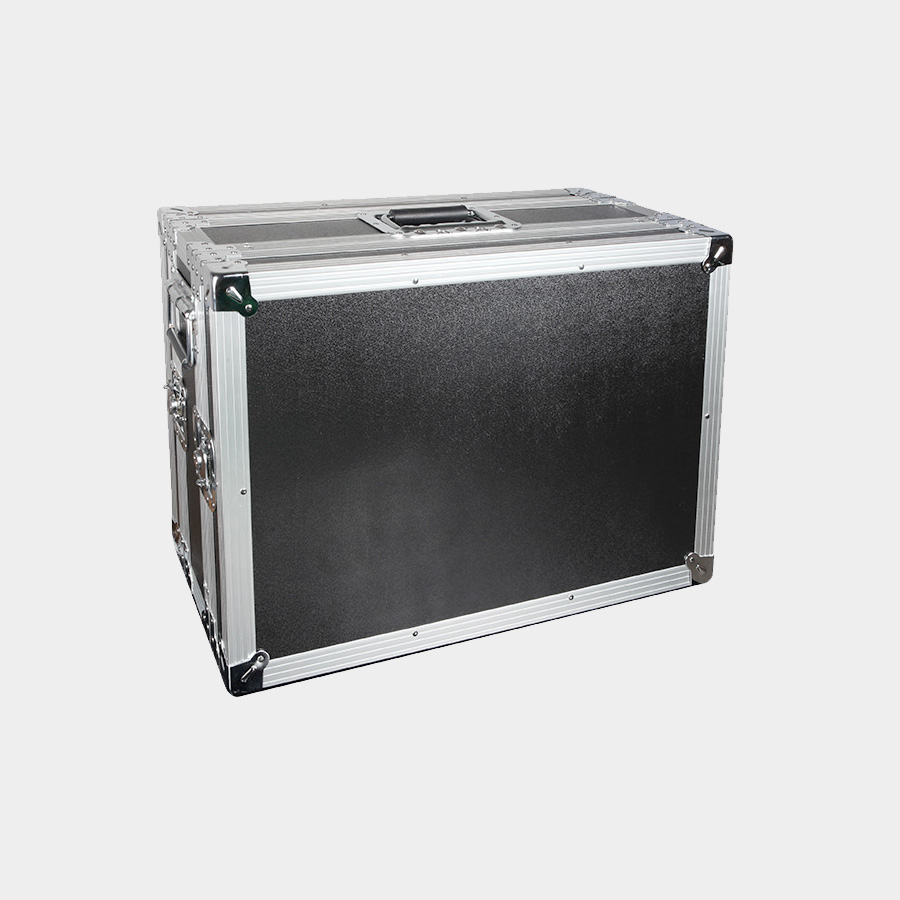

Aluminium flight case

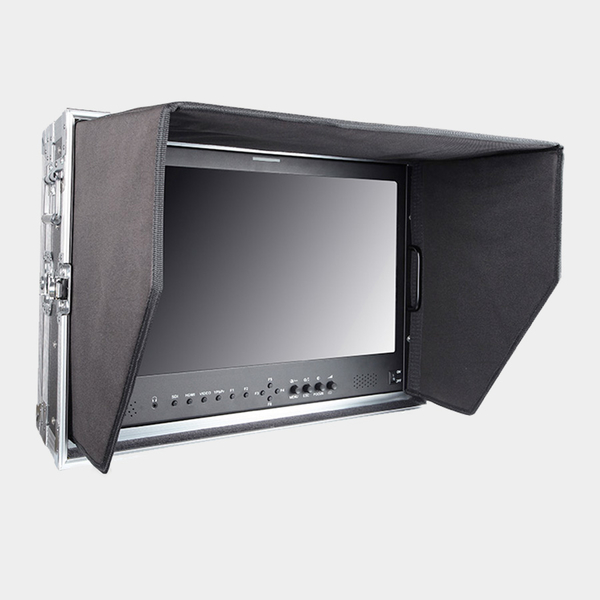

Optional sunshade

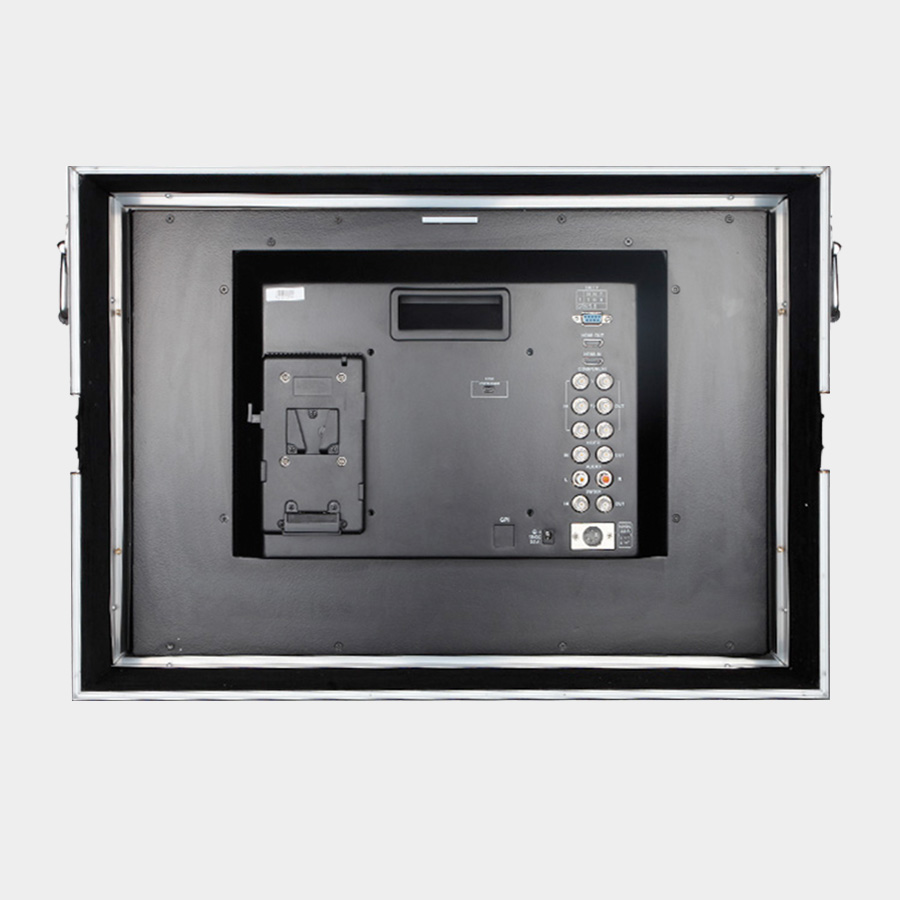

Optional battery plate
Support DC 12V input
Focus Assist and Check Field functions
Suitable for:
Film and Video Production
Description
|
Screen Size
|
21.5″, 1920 x 1080 resolution
|
|
Luminance
|
Typ. 250cd/m2
|
|
Contrast Ratio
|
Typ. 3000:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Mount Type
|

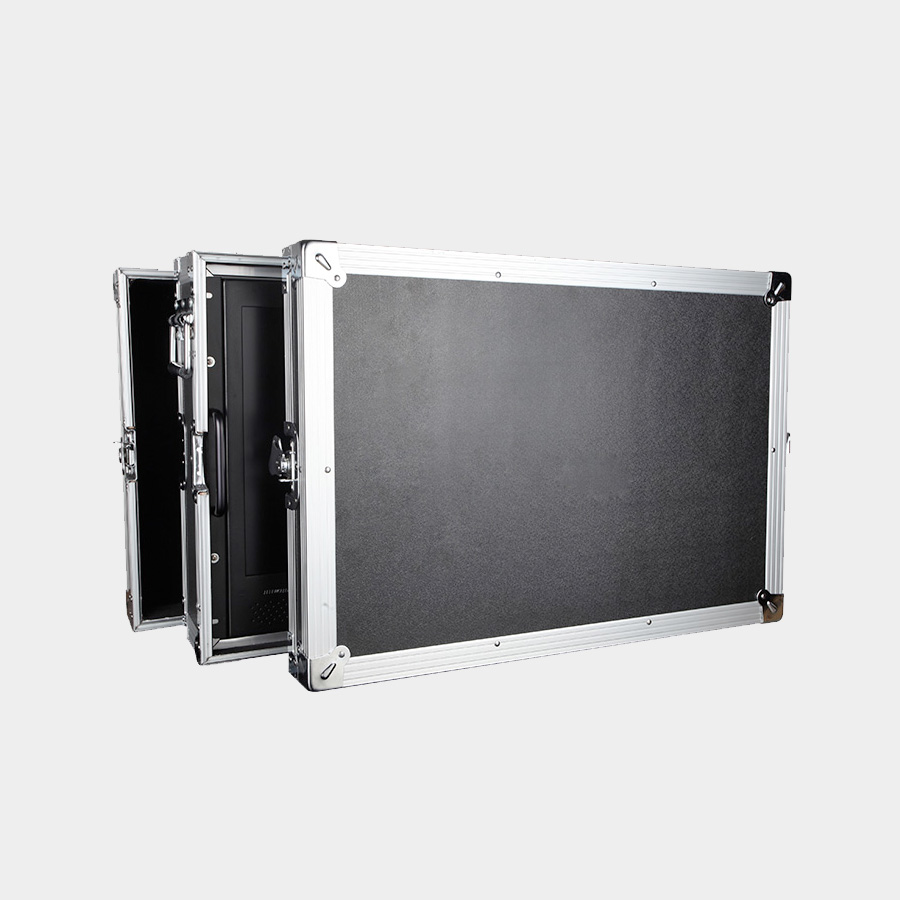

Monitor fitted inside a rugged aluminium flight case with removable sides.
|
|
Power Input
|
DC 12V <15W (DC12V / 4-pin XLR Connector)
|
|
Dimension
|
510 x 355.5 x 48.7mm bare monitor, 590 x 410 x 260mm inside case
|
|
Weight
|
4.25Kg bare monitor, 14.5Kg including case
|
|
Chassis
|
Aluminium
|

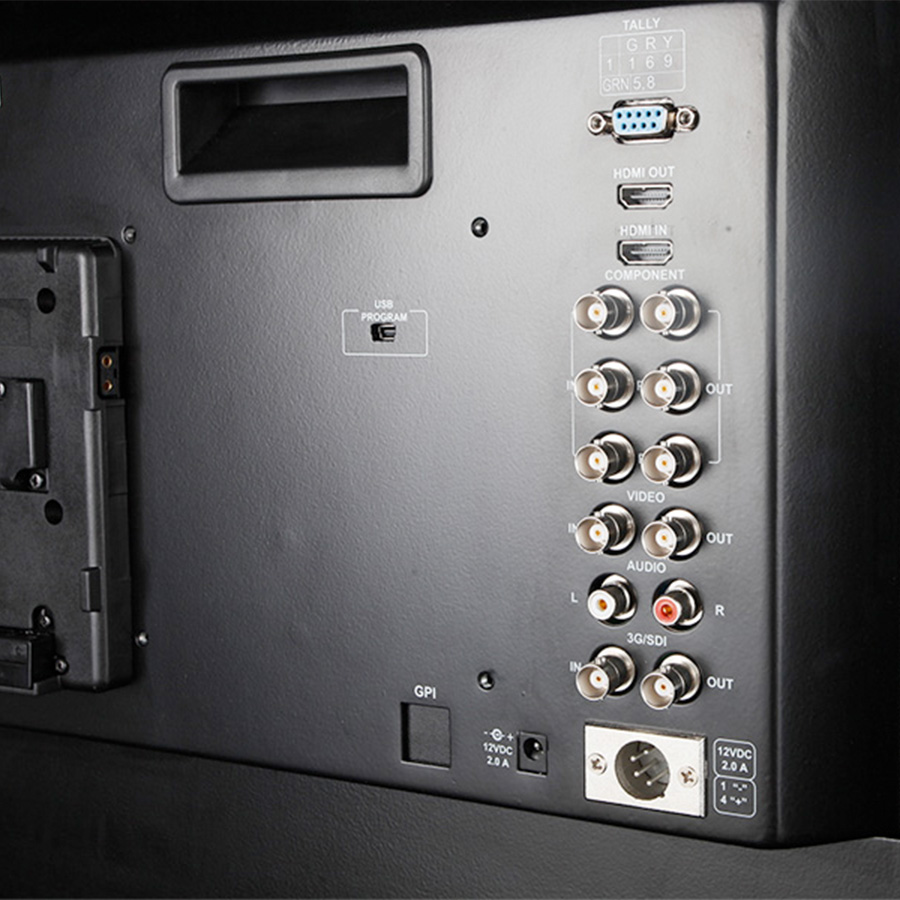

I/O Ports
|
Video Inputs
|
SD Video, Component, HDMI and 3D-SDI
|
|
Video Outputs
|
SD Video, Component, HDMI and 3D-SDI
|
|
Audio
|
Headphone Output + Built-in Speakers
|
Format Support
|
HDMI
|
480i/p
576i/p 720p(60/59.94/50/30/29/25/24/23.98） 1080i(60/59.94/50） 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
|
SDI
|
480i
576i 720p(60/59.94/50/30/29/25/24/23.98) 1080i(60/59.94/50)/ 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
Functions
|
Focus Assist
|
Peaking, red highlight over parts of the monochrome image in focus
|
|
Check Field
|
Mono, Red, Green, Blue
|
|
Camera Mode
|
Yes, 5D II
|
|
Pixel to Pixel
|
Yes
|
|
Center Marker
|
Yes
|
|
Safe Marker
|
80%, 85%, 90%, 93%, 96%, 2.35:1
|
|
Image Flip
|
Horizontal, Vertical, Hor & Ver
|
|
Image Freeze
|
Yes
|
Environment
|
Temperature
|
Operating: -20 to 55°C, Storage: -30 to 65°C
|
Additional information
| Mount Type | Flight Case |
|---|---|
| Screen Size | 21.5" |
| Viewing Angle | 89° / 89° |
| Operating Temperature | -20°C to 55°C |
| Inputs | 3D-SDI, HDMI, SD Video |
| Brightness | 250cd/m² (Typ) |
| Monitor Type | Video Broadcast |
