SDL-405-120-512M
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
140
|
mW
|
|
Reverse
Voltage (PD) |
VR (PD)
|
+5
|
V
|
|
Operating
Current |
IF
|
150
|
mA
|
|
Operating
Temperature |
Topr
|
-10 to +70
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Optical Output
Power |
Po
|
–
|
120
|
140
|
mW
|
–
|
|
Threshold
Current |
Ith
|
–
|
35
|
50
|
mA
|
Po=120mW
|
|
Operating
Current |
Iop
|
–
|
120
|
150
|
mA
|
Po=120mW
|
|
Differential
Efficiency |
η
|
1.2
|
1.4
|
1.9
|
mW/mA
|
Po=120mW
|
|
Operating
Voltage |
Vop
|
–
|
4.8
|
5.5
|
V
|
Po=120mW
|
|
Peak
Wavelength |
λp
|
400
|
405
|
410
|
nm
|
Po=120mW
|
|
Monitor
Current |
Im
|
0.2
|
0.4
|
0.7
|
mA
|
Po=120mW
|
|
Beam *4
|
Θ//
|
7.0
|
9.0
|
12.0
|
deg
|
Po=120mW
|
|
Divergence
|
Θ⊥
|
15
|
19.5
|
23
|
deg
|
Po=120mW
|
|
Beam
|
ΔΘ//
|
-2
|
–
|
+2
|
deg
|
Po=120mW
|
|
Angle
|
ΔΘ⊥
|
-2.5
|
–
|
+2.5
|
deg
|
Po=120mW
|
(*2) X axial direction
(*3) Measurement distance from laser aperture
Additional information
| Colour | Blue Violet (405nm) |
|---|---|
| Operating Current | 120 |
| Operating Voltage | 4.8 Typ. 5.5 Max. |
| Power Output | 120mW |

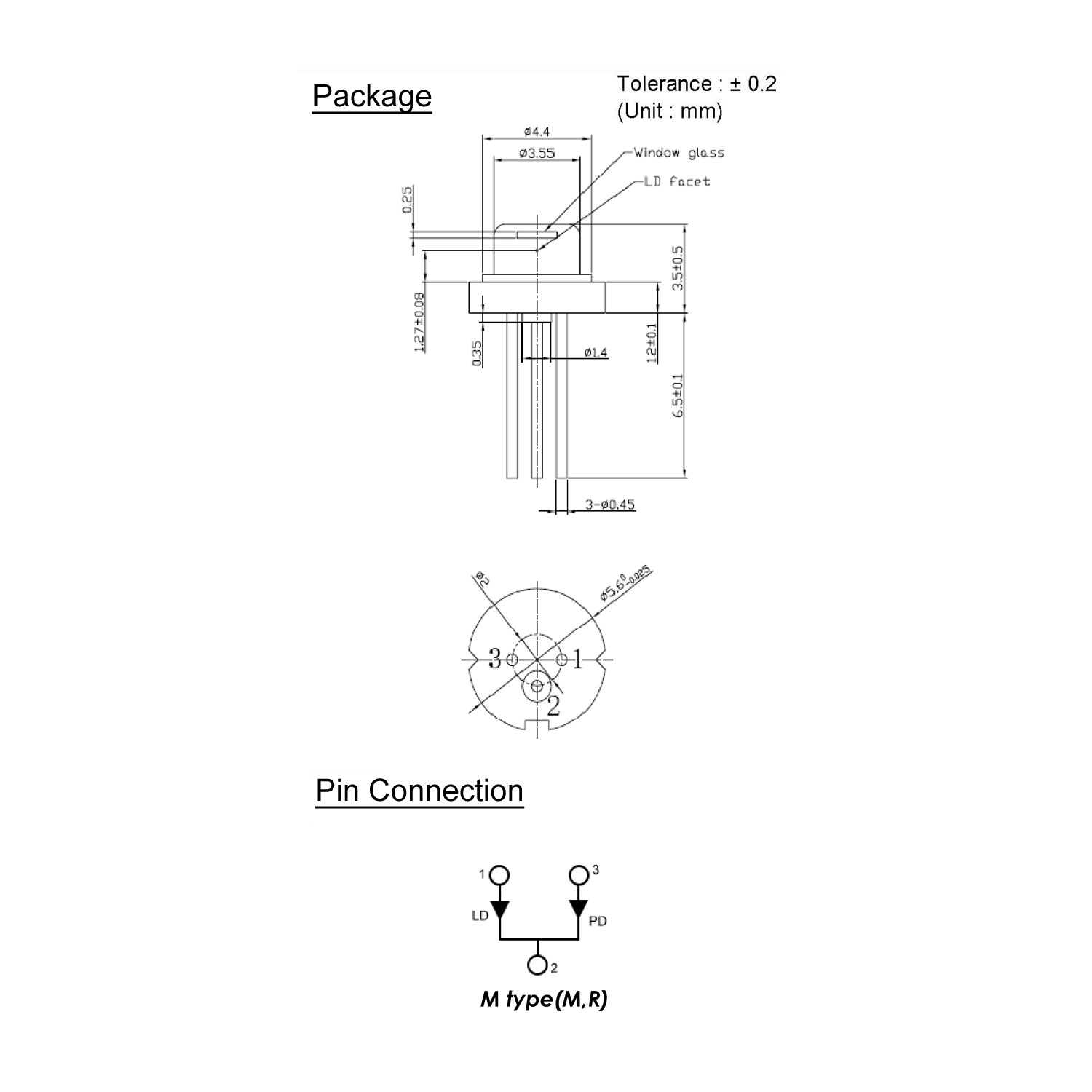

| PIN Type | M or B (inc. PD) |
| Wavelength | 405nm |
| Package Type | TO-18 |
| Driver IC | iC-HB, iC-HG, iC-HK, iC-NZ, iC-NZN, iC-WKM |
