SDL-658-100-501H

Feature

Semicom Red Laser Diode
Wavelength: 658nm (typ.)
Output Power: 100mW (CW), 250mW (Pulse)

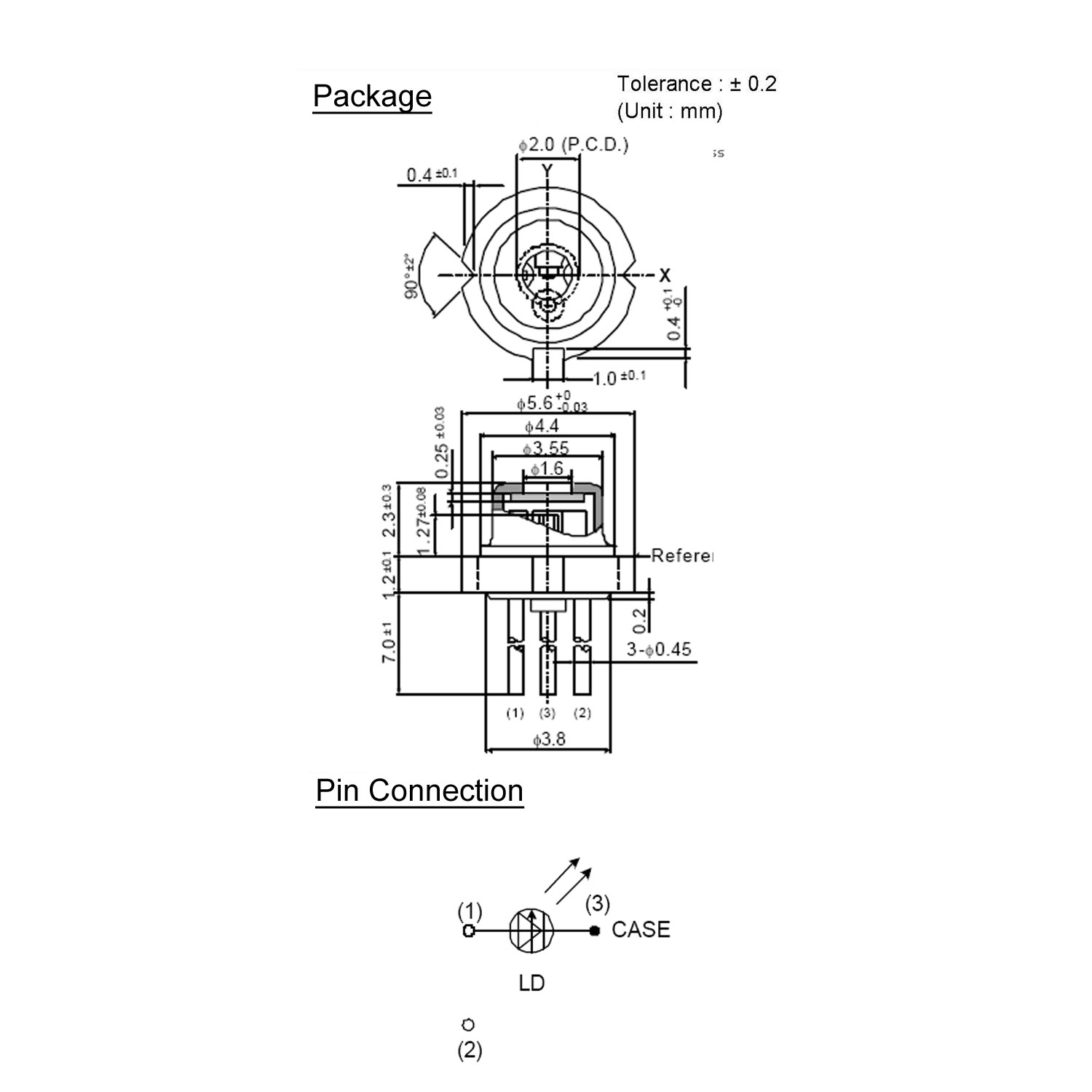

Package: TO18 (RoHS compliant)

Applications

Industrial Laser Markers
Industrial Measuring
Laser Pointer

Driver ICs

This diode is best driven using the following IC Haus driver:
iC-WKP
iC-NZP
SKU: 658nm, 100mW Red Laser Diode Categories: , Tags: , ,

Description

Absolute Maximum Ratings

(Ta=25°C)
Items
Symbols
Values
Units
Optical Output
Power (CW)
Po
100
mW
Optical Output
Power (Pulse)
Po
250
mW
Laser Diode
Reverse Voltage
Vr
+2
V
Operating
Temperature
Topr
-10 to +75
°C
Storage
Temperature
Tstg
-40 to +90
°C

Electrical and Optical Characteristics

(Ta=25°C)
Item
Symbols
Min.
Typ.
Max.
Unit
Condition
Optical Output
Power
Po
–
100 (CW)
250 (Pulse)
–
mW
–
Threshold
Current
Ith
–
60
–
mA
CW
Operating
Current
Iop
–
160
–
mA
CW, Po=100mW
Differential
Efficiency
η
0.8
1.0
–
mW/mA
CW, Po=100mW
Operating
Voltage
Vop
–
2.5
3.0
V
CW, Po=100mW
Peak
Wavelength
λp
653
658
662
nm
CW, Po=100mW
Monitor
Current
Im
–
–
–
mA
–
Beam *4
Divergence
Θ// x Θ┴
7.0 x 14
10.0 x 18
12.0 x 21
deg
CW, Po=100mW

Additional information

Colour

Red (635 – 685nm)
Wavelength

658nm
Power Output

100mW
Operating Voltage

2.5 Typ. 3.0 Max.
Operating Current

160
PIN Type

H (no PD)
Package Type

TO-18
Driver IC

iC-NZP, iC-WKP
