SE-8210
Description

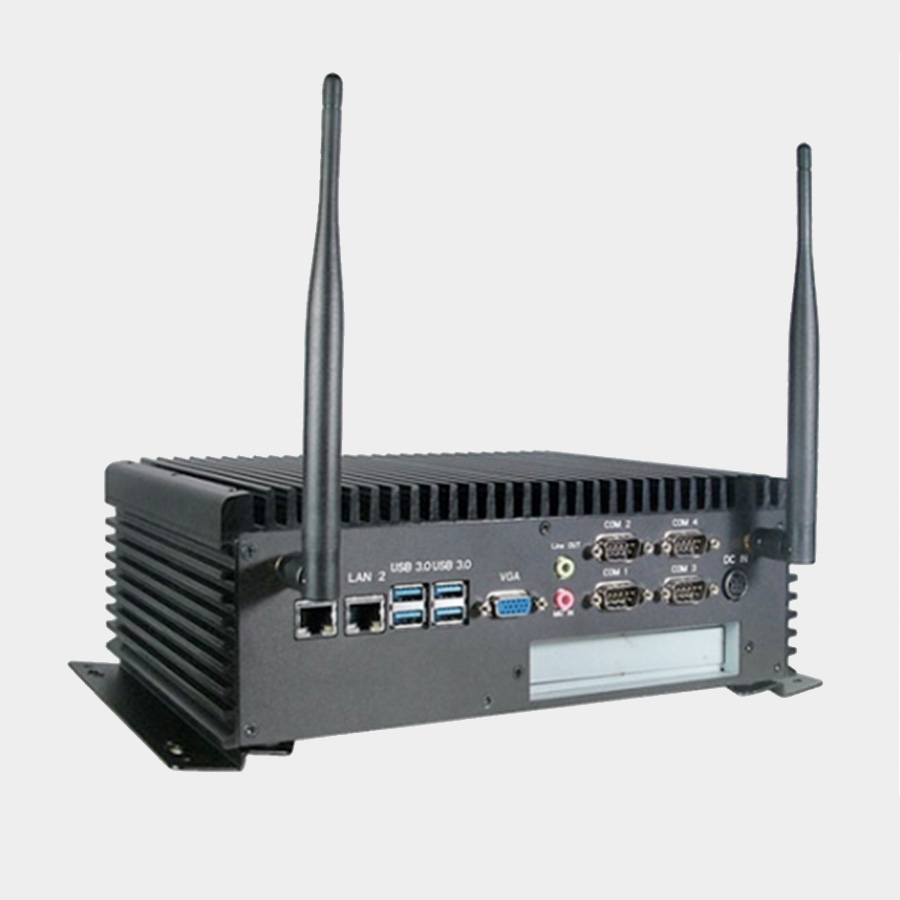

The SE-8210 is a high performance, fanless multifunction embedded PC built for industrial control and automotive communication.
The Digital I/O, USB3.0 and six COM ports are among the many I/O ports available on this embedded PC, so control of other systems is simple.
Features
Intel Core 3rd gen mini industrial PC
4 x USB3.0, 2 x USB2.0
6 x RS232 COM ports
8in/8out Digital I/O port
2 x Gigabit LAN
Downloads:
Description
|
CPU Type
|
Intel mobile i3/i5/i7 (rPGA-988)
|
|
Chipset
|
Intel QM77/HM76
|
|
Memory Support
|
2pcs x DDR-3 SO-DIMM (up to 16GB)
|
|
Watchdog Timer
|
1 to 255 seconds
|
|
Power Supply
|
9-36Vdc
|
|
Power Adaptor
|
AC 100V to 240V input, DC 24V output
|
|
Operating System
|
Windows 7 or XP
|
|
Basic System Weight
|
TBC
|
|
Dimension
|
260 x 200 x 89 mm
|
|
Certificate
|
FCC / CE
|

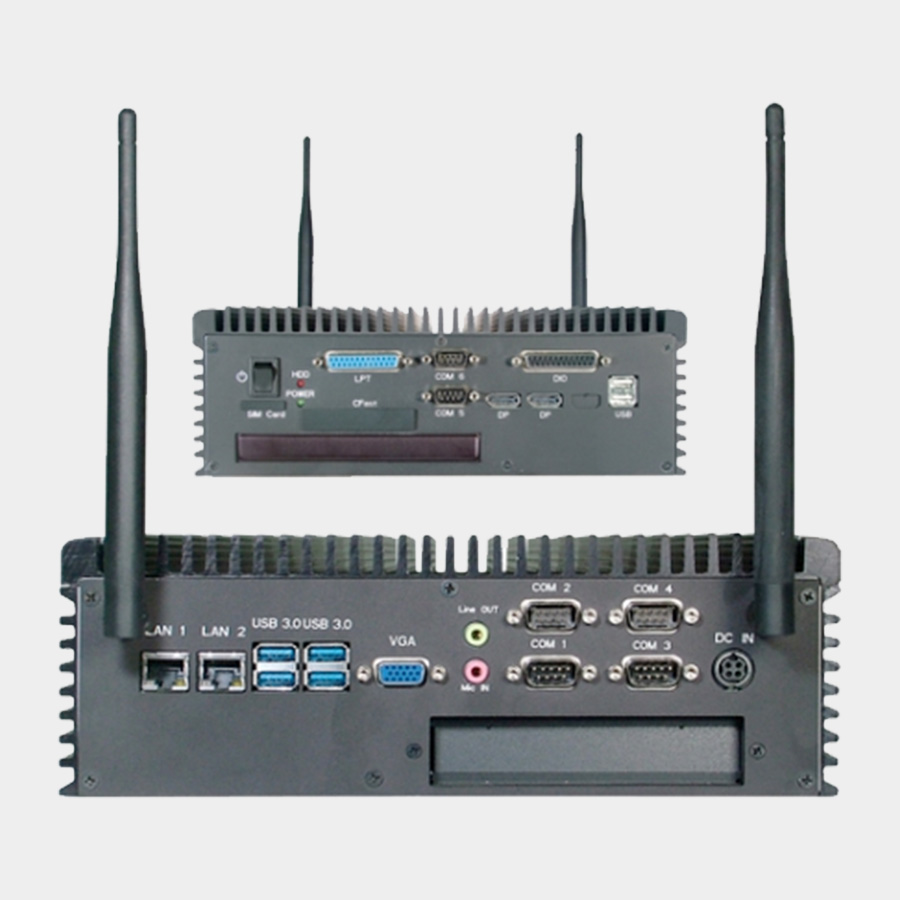

I/O Ports
|
Drive Bay
|
2.5″ SATA HDD or SSD + 1 x DVD-ROM
|
|
USB
|
2 x USB2.0 front + 4 x USB3.0 rear
|
|
LAN
|
2 x Gigabit
|
|
Audio
|
1 x Line-out, 1 x Mic-in
|
|
Serial Ports
|
2 x front (RS232) + 4 x rear (RS232 + RS232/422/485)
|
|
Parallel
|
1 x DSUB-25
|
|
Display
|
1 x VGA + 2 x Display Port
|
|
Digital I/O
|
DSUB-25, 8in/8out or Phoenix-16p (option)
|
Environment
|
Temperature
|
Operating: -5 to 45°C, Storage: -20 to 80°C
|
|
Humidity
|
10 to 90%
|
Additional information
| Core | Intel Core i3, Intel Core i5, Intel Core i7 |
|---|---|
| Operating System (OS) | Windows 7 |
| Fanless | Yes |
