SM-ZJD15RF
Description

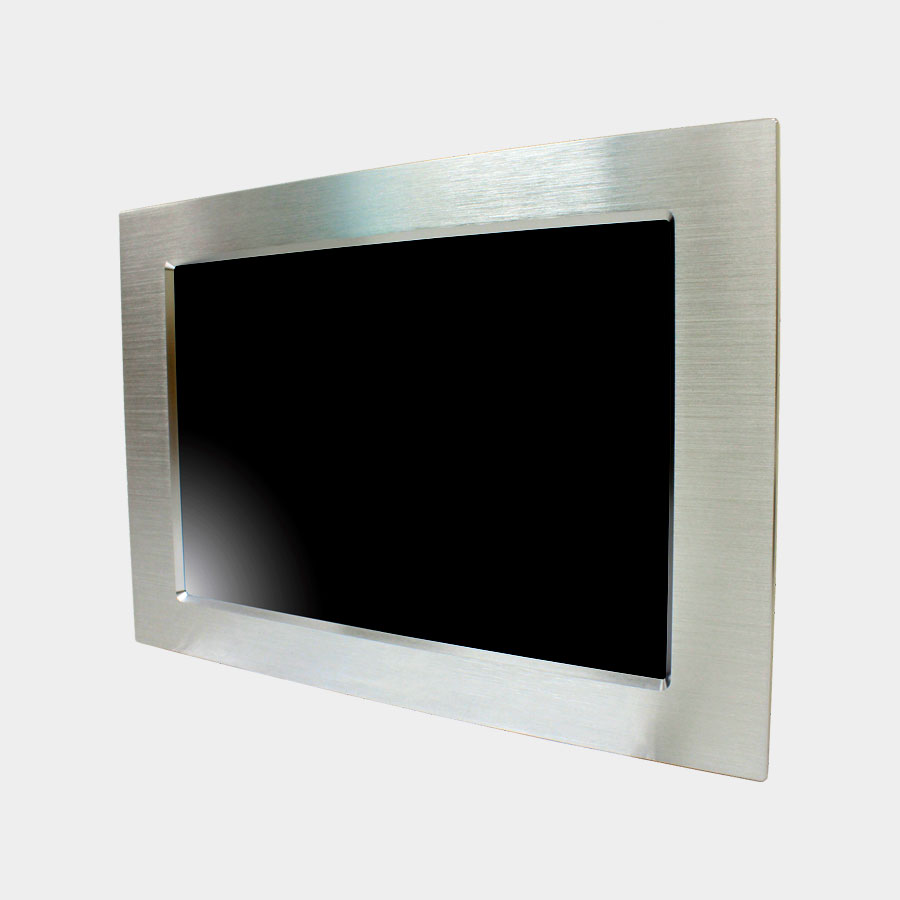

The SM-ZJD15RF is a 15.6″ panel mount industrial monitor designed for industrial automation and monitoring. The 15.6″ LCD panel provides 1366 x 768 (FWXGA) resolution.
With the option of touch screen and VESA mount, the monitor can also be used as an interactive terminal.
Features
15.6″ Panel Mount Monitor
1366 x 768 Resolution
VGA, DVI-I, and optional HDMI
Optional VESA arm mount
Optional Resistive touch screen
Backlight Lifetime: Typ 50,000 hours
Support DC 12V input
Waterproof Gasket Option
Suitable for:
Factory Automation & Control
Downloads:
Description
|
Screen Size
|
15.6″, 1366 x 768 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
0.252 x 0.252 mm
|
|
Luminance
|
Typ. 300cd/m2
|
|
Backlight Lifetime
|
Typ. 50,000 hours
|
|
Viewing Angle
|
Horizontal: Typ. 85°/85°, Vertical: Typ. 80°/80°
|
|
Input Frequency
|
Hor. 31.5-80 KHz, Ver. 56-75Hz
|
|
Contrast Ratio
|
Typ. 500:1
|
|
Mount Type
|
Panel mount and VESA arm mount
|
|
Power Input
|
12V DC with external AC power adapter
|
|
Dimension
|
454 x 272.4 x 74.3 mm
|
|
Weight
|
7Kg
|
|
Chassis
|
Front – Aluminium, Rear – Steel
|
I/O Ports
|
Digital
|
DVI-I and optional HDMI
|
|
Analogue
|
15-pin VGA
|
Optional Touch Screen
|
Touch Sensor Type
|
5 wire resistive type
|
|
Touch Controller Type
|
USB or Serial
|
Environment
|
Temperature
|
Operating: 0 to 45°C
|
Additional information
| Screen Size | 15.6" |
|---|---|
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 170° / 160° |
| Mount Type | Panel Mount |
| Inputs | DVI, HDMI, VGA |
| Operating Temperature | 0°C to 45°C |
| Touch Type | Resistive |
| Monitor Type | Factory/Industrial |
