SML-520-1-2-R
Feature
Green Laser Module
Wavelength: 520nm (typ.)
Output Power: 1mW

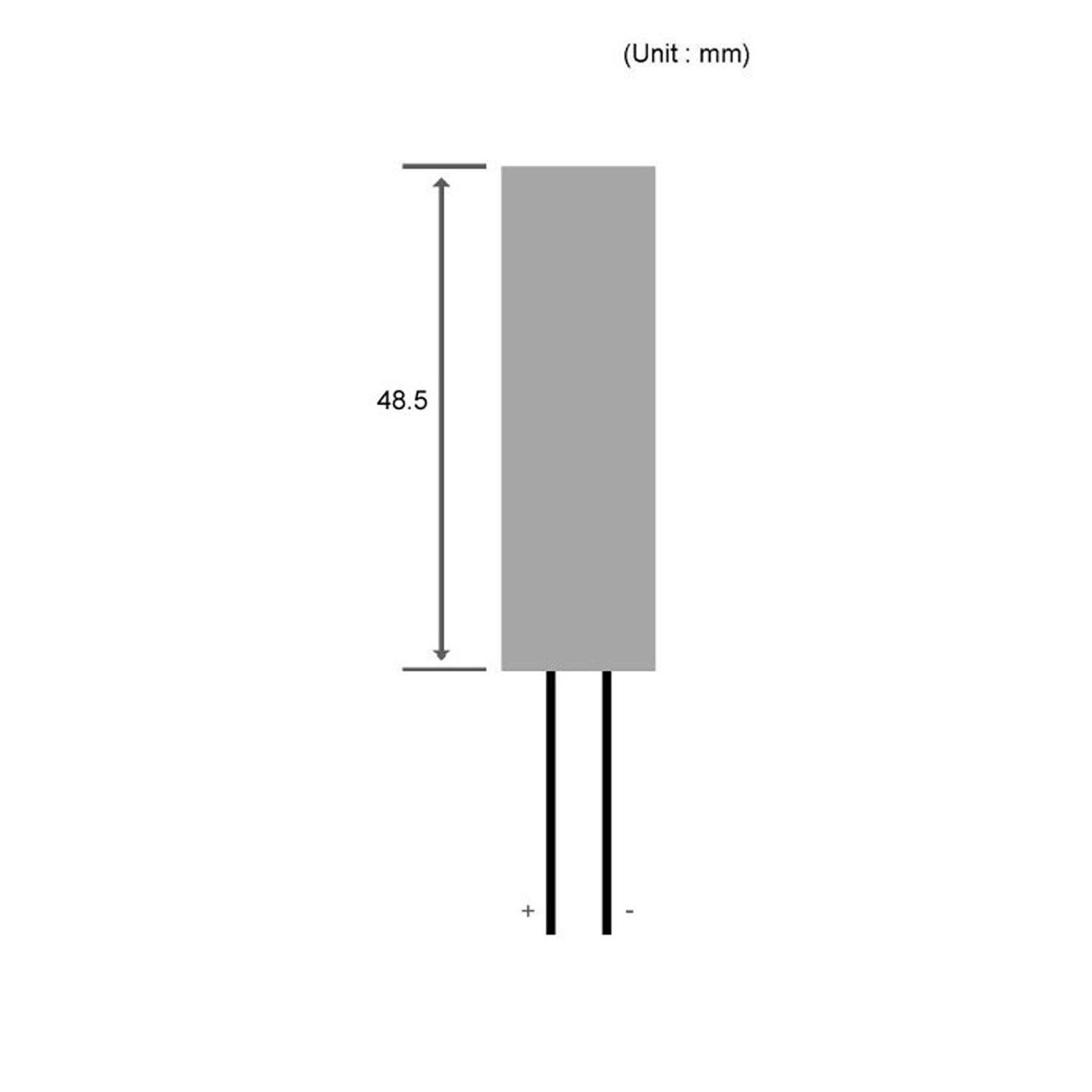

Package: ø10mm (RoHS compliant)
Length: 48.5mm
Applications
Barcode Reader
Industrial Alignment & Positioning
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
1
|
mW
|
|
Operating
Voltage |
VCC
|
+8
|
V
|
|
Operating
Temperature |
Topr
|
0 to +65
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +85
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
–
|
140
|
mA
|
CW
|
|
Supply
Voltage |
Vcc
|
–
|
+8
|
–
|
V
|
–
|
|
Beam (*2)
Divergence |
2Θr
|
–
|
–
|
0.2
|
mrad
|
–
|
|
Peak
Wavelength |
λp
|
517
|
520
|
523
|
nm
|
–
|
Additional information
| Colour | Green (510 – 532nm) |
|---|---|
| Wavelength | 520nm |
| Power Output | 1mW |
| Operating Voltage | 8 |
| Operating Current | 140 Max. |
