SML-532-5-2-R
Feature

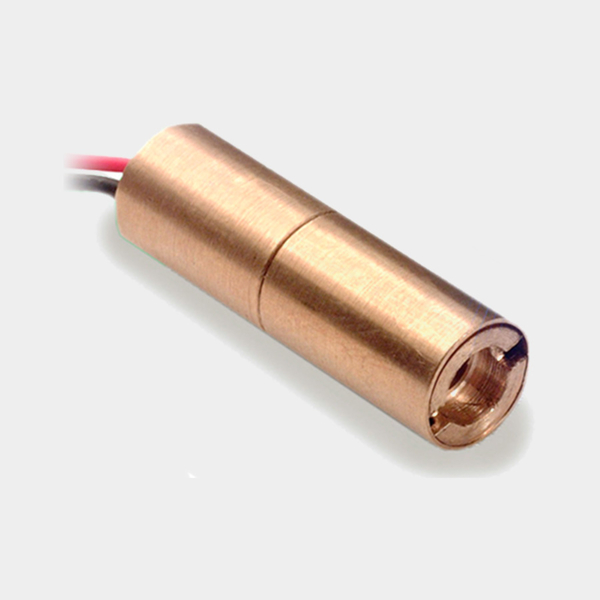

Green Laser Module
Wavelength: 532nm (typ.)
Output Power: 5mW

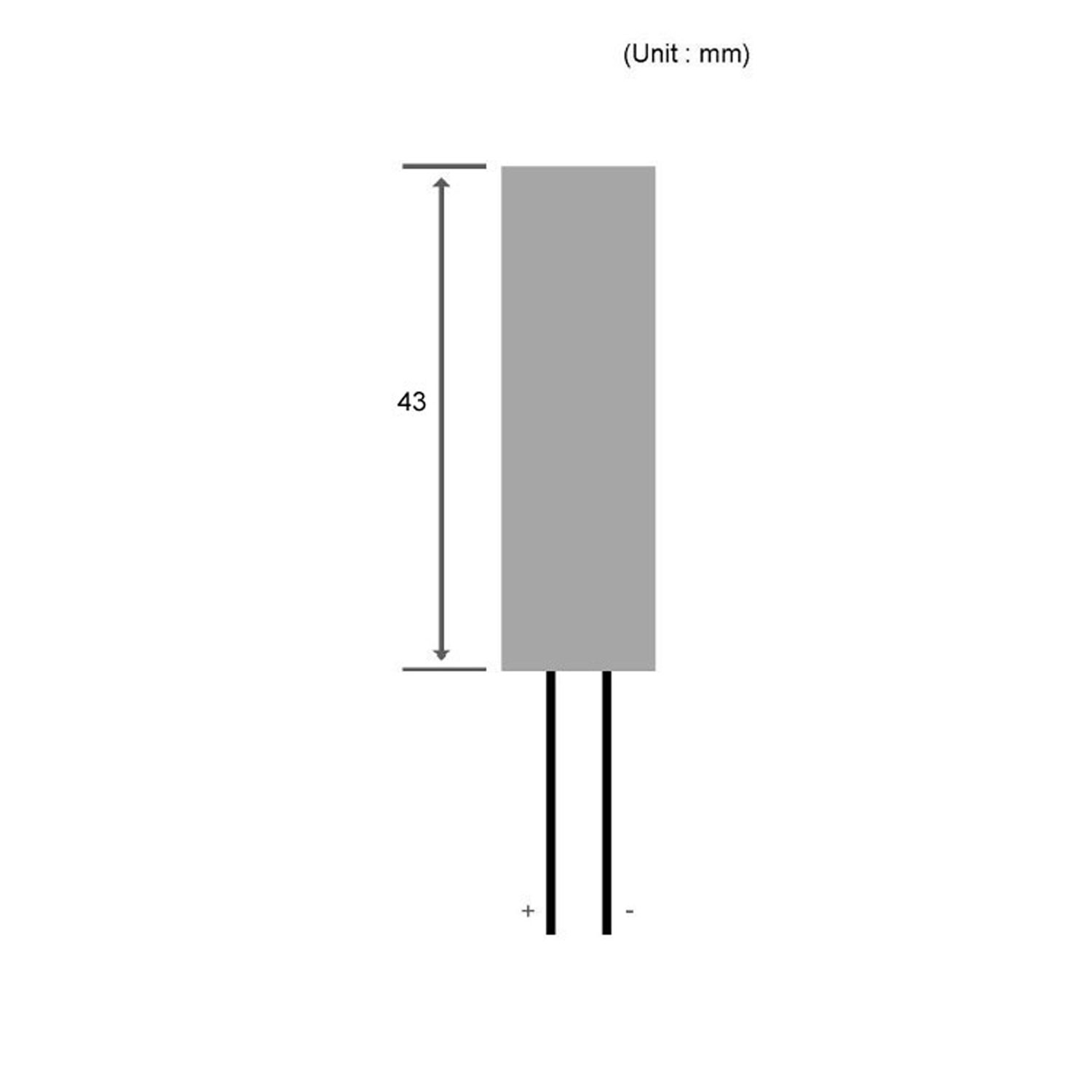

Package: ø10mm (RoHS compliant)
Length: 43mm
Applications
Barcode Reader
Industrial Alignment & Positioning
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
5
|
mW
|
|
Operating
Voltage |
VCC
|
+3
|
V
|
|
Operating
Temperature |
Topr
|
+0 to +35
|
°C
|
|
Storage
Temperature |
Tstg
|
-10 to +50
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
–
|
280
|
mA
|
CW
|
|
Supply
Voltage |
Vcc
|
–
|
+3.0
|
–
|
V
|
–
|
|
Beam (*2)
Diameter |
2wr
|
–
|
–
|
15
|
mm
|
Δl = 10m (*3)
|
|
Beam (*2)
Divergence |
2Θr
|
–
|
–
|
0.8
|
mrad
|
–
|
|
Peak
Wavelength |
λp
|
531
|
532
|
533
|
nm
|
–
|
Additional information
| Colour | Green (510 – 532nm) |
|---|---|
| Wavelength | 532nm |
| Power Output | 5mW |
| Operating Voltage | 3 |
| Operating Current | 280 Max. |
